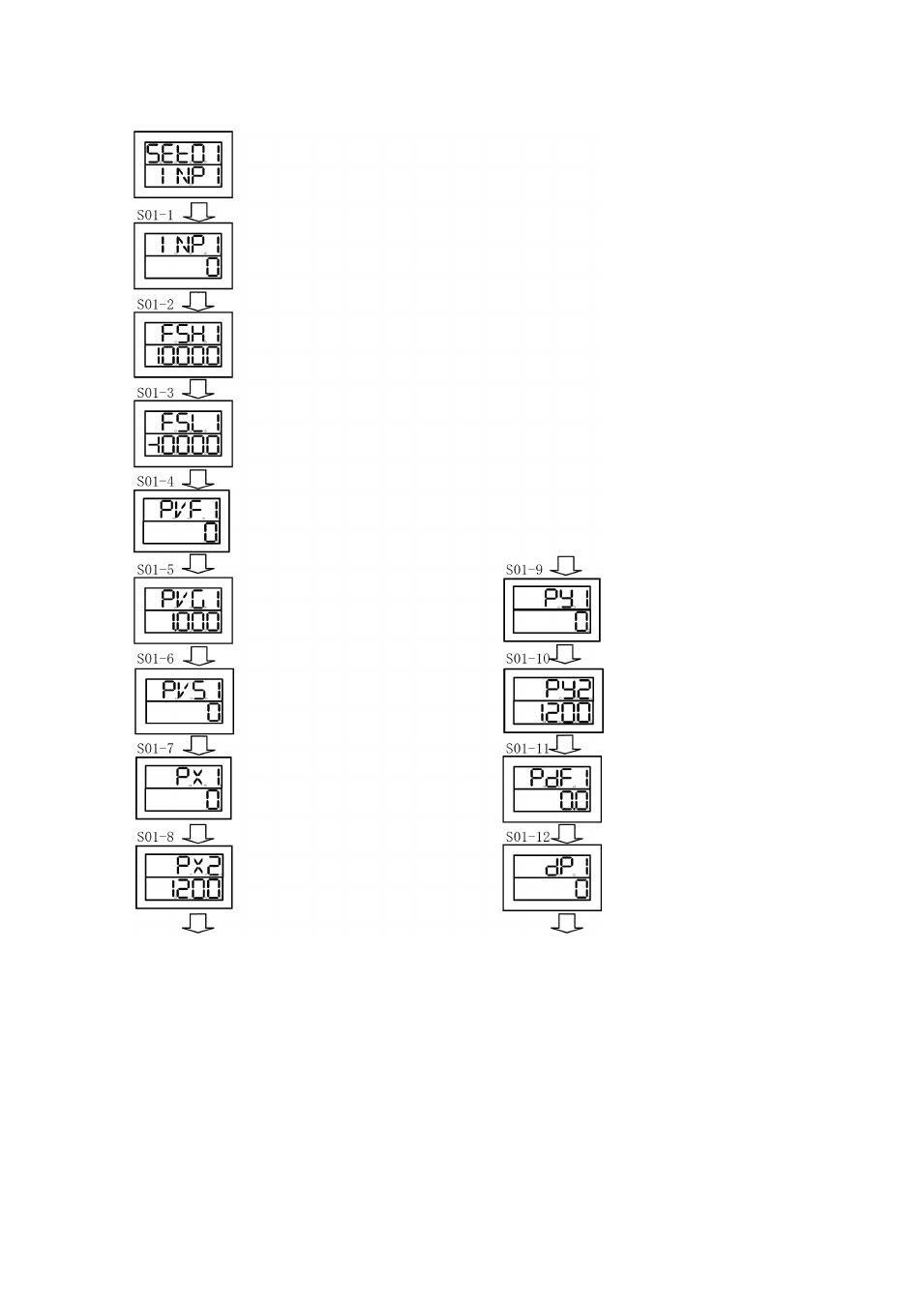

SET 1: Input 1 setting mode

0. Setting item selection screen

1 Input 1 type setting

2. Scaling upper limit setting
* Displayed with current/voltage

input.

3. Scaling lower limit setting
* Displayed with current/voltage

input.

5. PV compensation gain setting
* Displayed during PV gain zero

point compensation.

4. PV compensation function

setting *1

6. PV compensation zero setting
* Displayed during PV gain zero

point compensation.

7. Lower limit setting before PV

compensation

* Displayed during PV X-Y

2-point compensation

To SET 01, item 9

8. Upper limit setting before PV

compensation

* Displayed during PV X-Y

2-point compensation

9. Lower limit setting after PV

compensation

* Displayed during PV X-Y

2-point compensation

10. Upper limit setting after PV

compensation

* Displayed during PV X-Y

2-point compensation

11. Input filter setting

12. Decimal point setting

To SET 01, item 0

*1: PV compensation function setting

When (PVF1



0) is selected, select PV gain zero point compensation.

When (PVF1



1) is selected, select PV X-Y 2-point compensation.

For details, see pages 6-4 to 6-6.
