5.5.7 Complementary explanation of the program run
■ Regarding the time unit setting (H/MP)
Parameters for “step time” and “countdown condition” are provided in the program settings.
“Countdown condition” can be selected with a setting value. The example below is for STEPn

5
(step number 5).

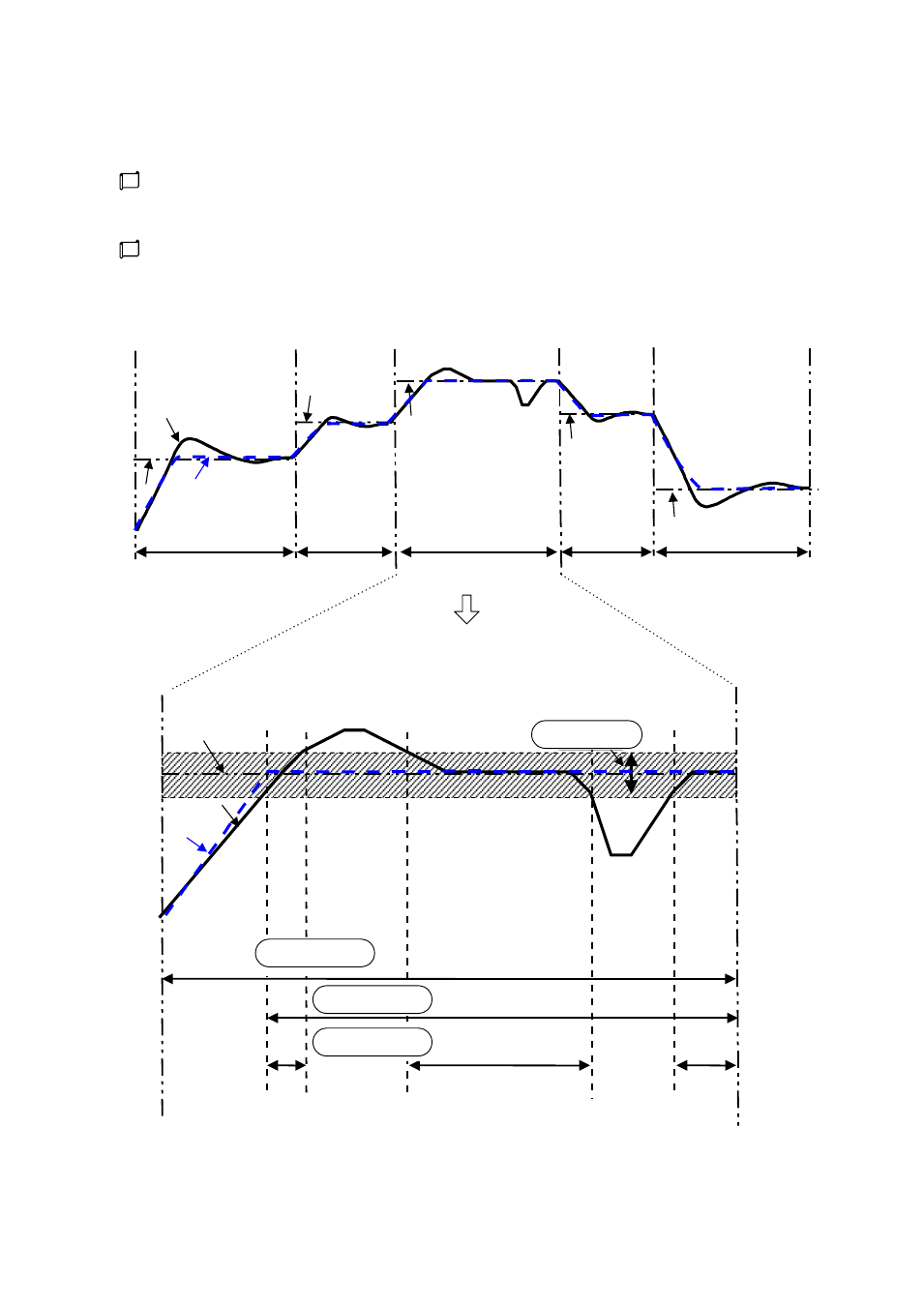

The total time of each step is referred to as “step time” and a status terminated with temperature
variation as “soak time.” The time unit setting (H/MP) is performed for “countdown condition” of
“step time” according to the status.
Step 3
SV3
PV
② ③
Step 1 Step 2 Step 4 Step 5
SV3
SV2
SV1
PV
SV4
SV5 Step time
Step time Step time Step time Step time
Enlarged
SV
SV
①
Step time
Soak time 1
Soak time 2
Wait range
