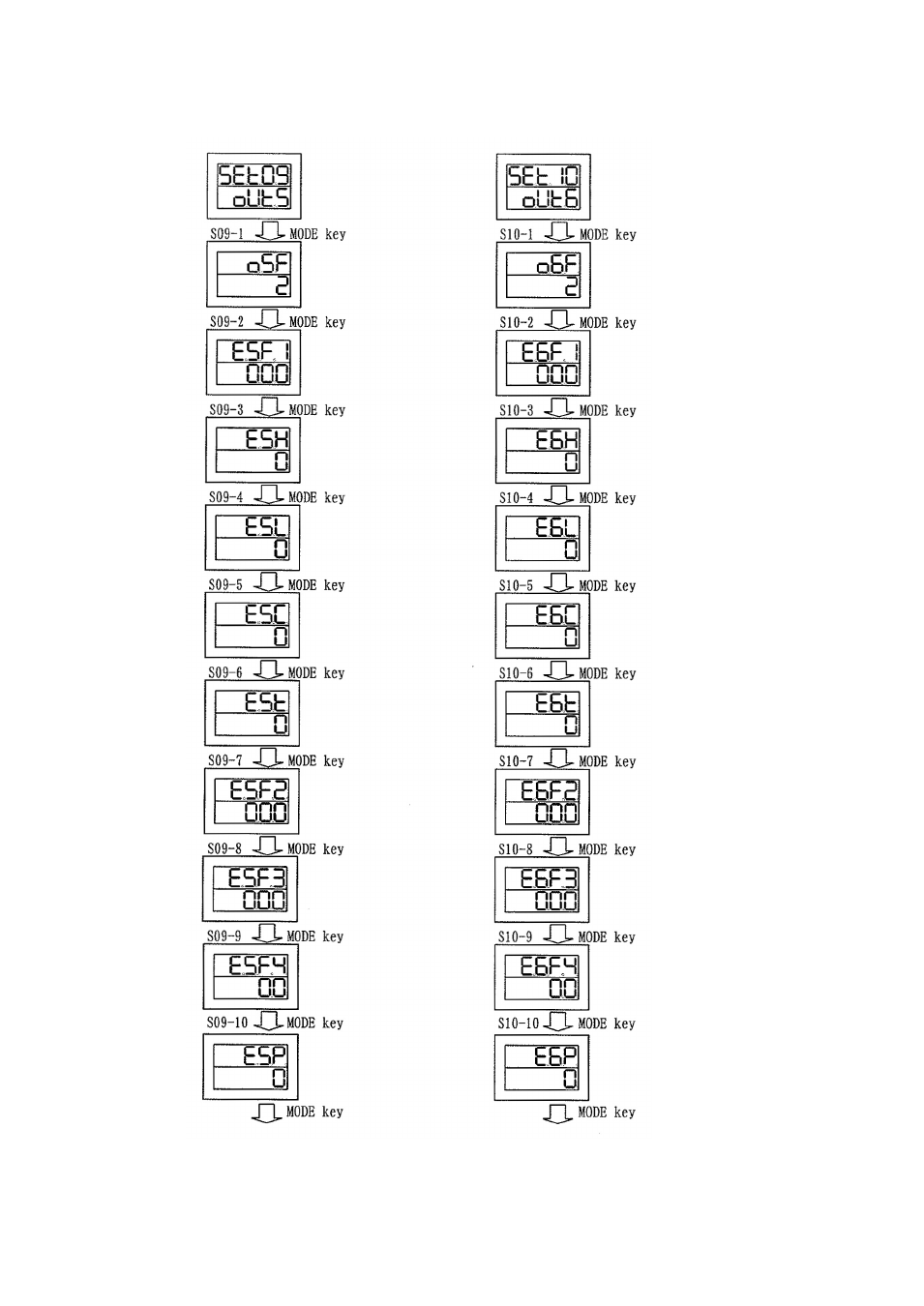

0. Setting item selection
screen
1. Target connection
setting
2. Event function 1
setting
3. Event upper limit
setting
4. Event lower limit
setting
5. Event sensitivity setting
6. Event delay timer
setting
7. Event function 2 setting
(PV abnormality)
8. Event function 3 setting
(CT abnormality)
9. Event function 4 setting
(Loop abnormality)
To SET 09, item 0
10. Event polarity setting
SET 9: OUT 5 setting mode
0. Setting item selection
screen
1. Target connection
setting
2. Event function 1
setting
3. Event upper limit
setting
4. Event lower limit
setting
5. Event sensitivity setting
6. Event delay timer
setting
7. Event function 2 setting
(PV abnormality)
8. Event function 3 setting
(CT abnormality)
9. Event function 4 setting
(Loop abnormality)
To SET 10, item 0
10. Event polarity setting
SET 10: OUT 6 setting mode
