5.4.5 Timer function
■ What the timer function is
• A function to generate an event for a predetermined time period or predetermined time after a trigger
is activated.
Some major examples of the use and settings are as follows.
■ Where automatic start/stop of control is desired after power-on (auto-start)
Example of setting for a control for 20 minutes at 180 °C, 2 hours after the power is turned on
SEt04
CNt
Name
Setting content
Setting value
SV
Control setting
180
C
180
Md
Control mode
Timer 1 makes the control start/stop.
TIME1
SEt14
tIME1
Name
Setting content
Setting value
tMF1
Function setting
Auto-start
1
oNt1
On delay timer
2 hours
02:00
oFt1
Off delay timer
20 minutes
00:20

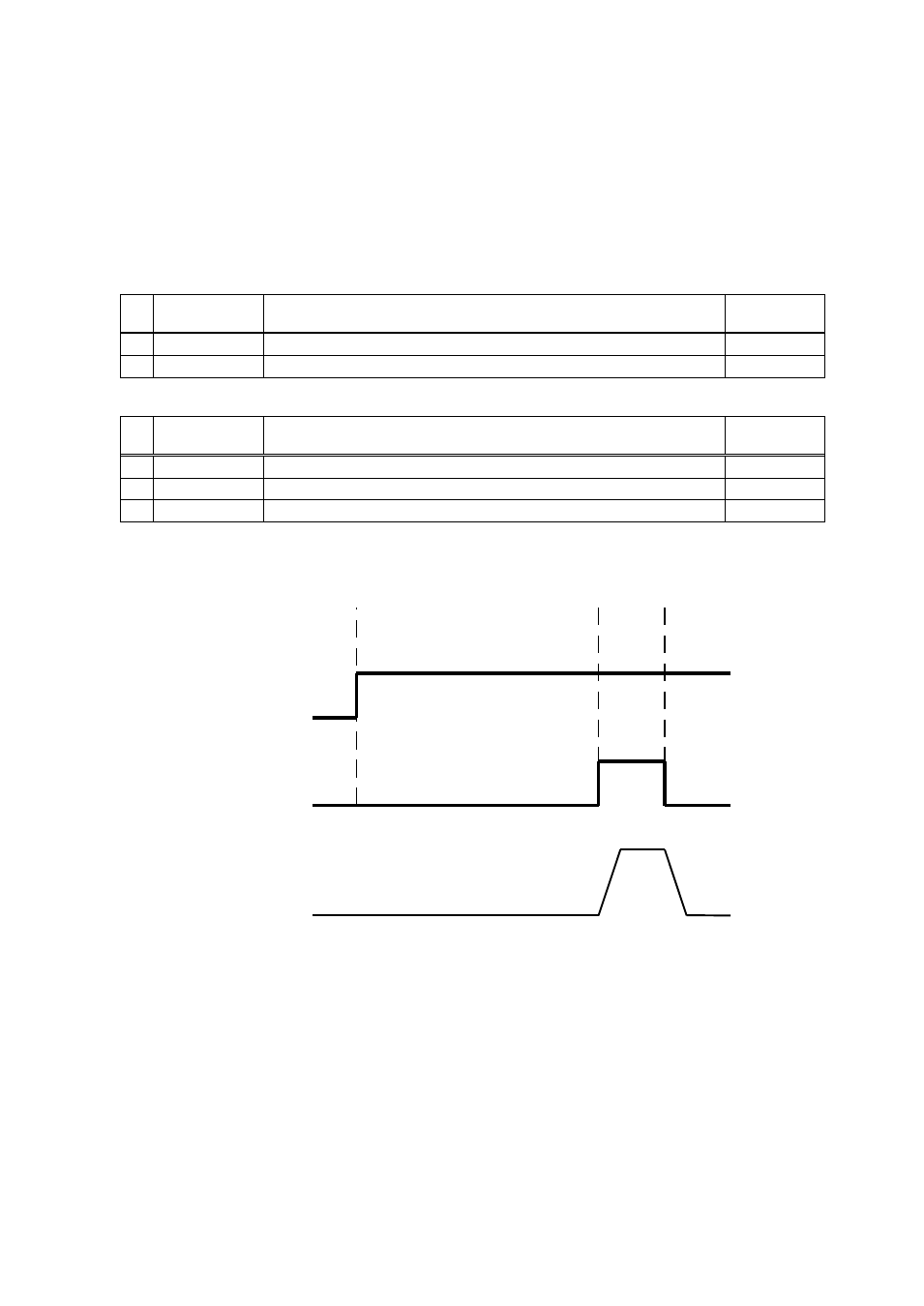

Power
supply
Control
On delay
2 hours
Off delay
20 minutes
ON
OFF
RUN
RDY
Temperature
180℃
Normal
temperature
