48-7009-E 6-31

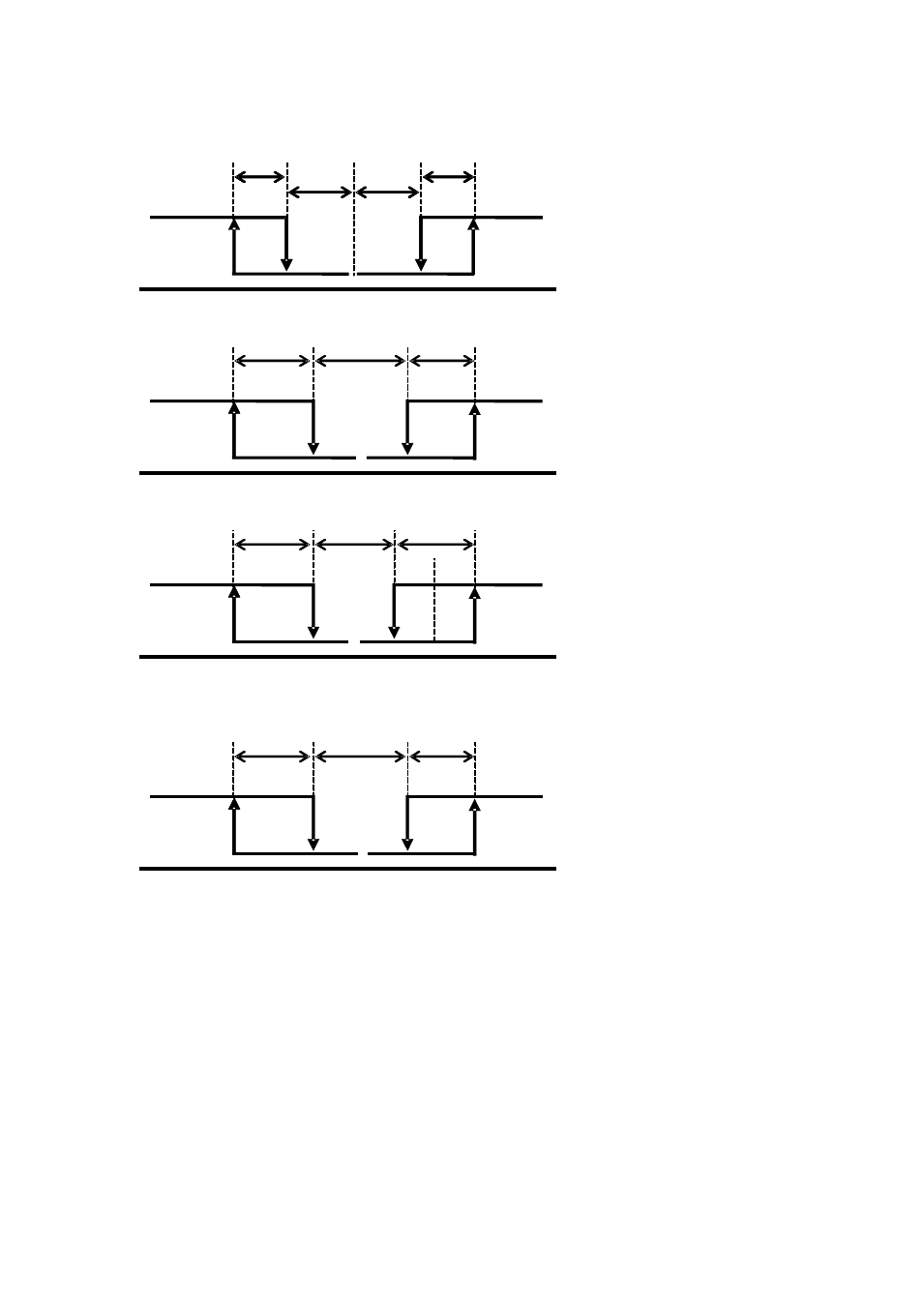

Cmod = 0 (SV)
Ｃ２ ＣＰ２ ＣＰ１ Ｃ１
-ｄｂ
ＯＮ
ＯＦＦ
△ ＰＶ
Low ＳＶ High
Cmod = 1 (upper)
Ｃ２ ｄｂ Ｃ１
ＯＮ
ＯＦＦ
△
ＰＶ
Low
ＳＶ
High
Cmod = 2 (middle)
Ｃ２ ｄｂ Ｃ１
ＯＮ
ＯＦＦ
△
ＰＶ
Low ＳＶ High
Cmod = 3 (lower)
Ｃ２ ｄｂ Ｃ１
ＯＮ
ＯＦＦ
△
ＰＶ
Low ＳＶ High
C1: Sensitivity setting 1
C2: Sensitivity setting 2
CP1: Off-point setting 1 = positive value
CP2: Off-point setting 2 = negative value
db: Dead band = positive value
C1: Sensitivity setting 1
C2: Sensitivity setting 2
db: Dead band = positive value
C1: Sensitivity setting 1
C2: Sensitivity setting 2
db: Dead band = positive value
C1: Sensitivity setting 1
C2: Sensitivity setting 2
db: Dead band = positive value
