48-7009-E 7-9
7.2 Accessories
7.2.1 Current transformer
★ Current transformer is used to measure current values of a heater through connecting it to TOHO’s
digital controller TTM-200 series and the heater.
Model: CTL-6-P-H-(S)
Product specifications
Current applicable 0.1 - 80.0 A rms (50/60 Hz)
* This is specification for CT main frame.
Max. allowable current 80 A rms continuous
Withstand voltage 2000 VAC for a minute (between through-hole and output terminal)
Isolation resistance 500 VDC, 100 M

or larger (between through-hole and output terminal)
Use temperature range -20 to 70 °C
Storage temperature range -30 to 90 °C
Weight Approx. 16 g
Accessories None

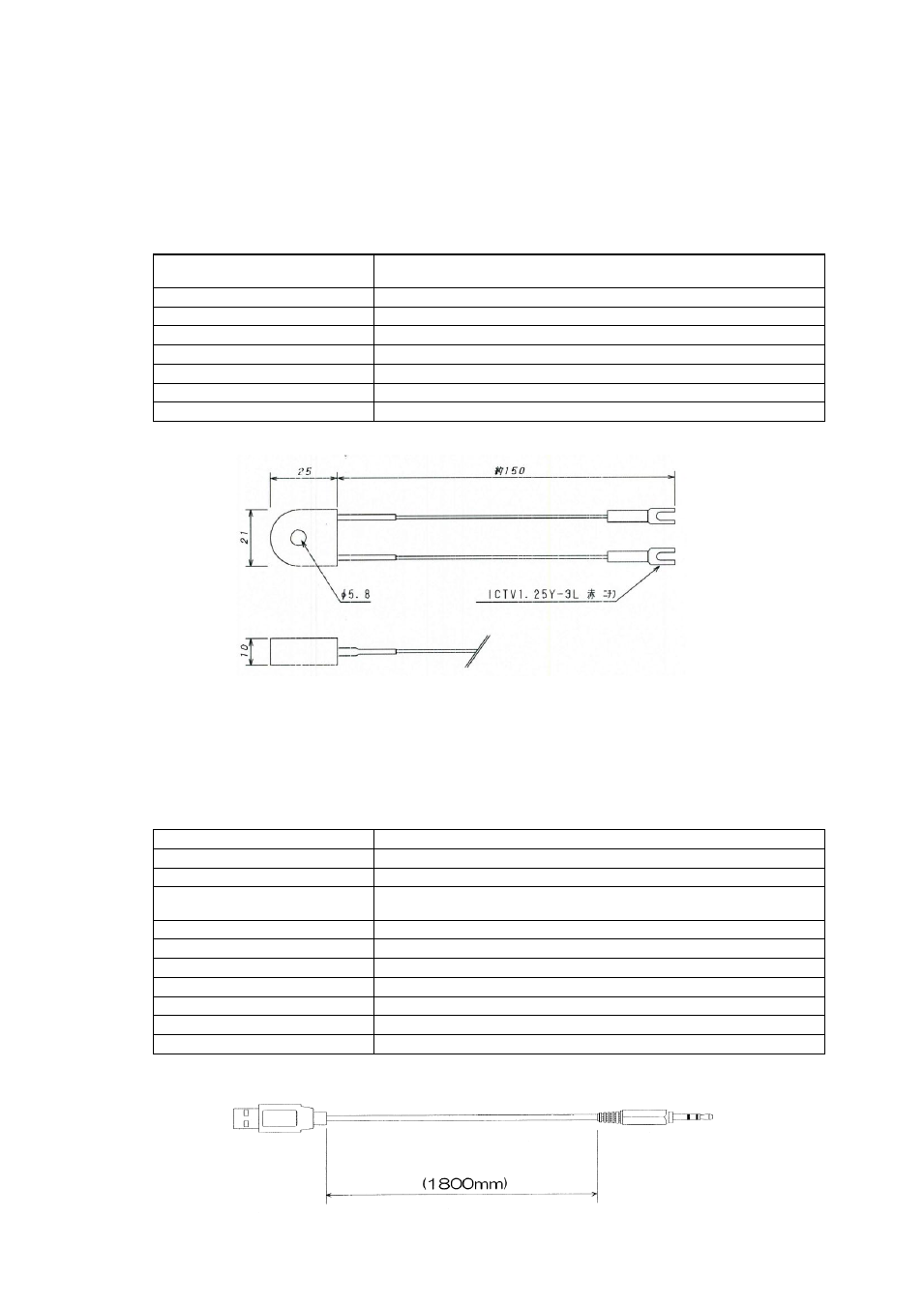

Outside dimension
7.2.2 Loader cable
★ Loader cable is used to connect TOHO’s digital controller TTM-200 series and a personal computer
(PC) and such so that various values are set and read on the PC, using the dedicated loader software
installed on it.
Model: TTM-LOADER
Product specifications
OS to meet Windows XP
USB I/F standards In compliance with USB Specification 2.0
DTE speed Up to 38400 bps
Connector specification PC side: USB
Controller side:

2.5 mm stereo jack
Consumption current 90 mA
Use temperature range 0 to 50 °C
Use humidity range 20 to 90 %RH (no dew condensation allowed)
Storage temperature range -10 to 60 °C (no freeze or dew condensation allowed)
Storage humidity range 5 to 95 %RH (no dew condensation allowed)
Power supply voltage Bus-powered (to be supplied from PC side)
Weight 40 g
Outside dimension
USB connector Stereo plug
