48-7009-E 6-79
■ Repeat Start Step Setting / Repeat End Step Setting / Setting the Times of Execution / Setting the no. of
Execusion / No. of Times Monitor
ＳＥｔ２２
ＰＲＯＧ
Setting Contents
Initial
Value
5 ＳｔＲＳｔ
Repeat Start Step Setting 3
1
Setting Value Range 1～Repeat End Step Setting
(ENdSt)
6 ＥＮｄＳｔ
Repeat End Step Setting 3
StEPN
Repeat Start Step Setting (StRSt StRSt)～
Setting No. of Steps to be used or StEPN
※ When set to StEPN, the value which is set under the
Setting No. of Steps to be Used will be “Repeat End Step
Setting”.
7 ＲＵＮＰ
No. of Execution Setting / No. of Execution Monitor 3
1 Setting Value Range RUNP=0～9999
（ When RUNP=0, Infinite）
Setting the condition of repeated operation during the programmed operation
＊
5 Repeated Start Step Setting (StRSt)
This is to set the starting point of the repetition (Step No. of which the repetition starts)
＊
6 Repeated End Step Setting (ENdSt)
This is to set the end point of the repetition (Step No. of which the repetition ends)
＊
7 Setting No. of Executions / No. of Executions Monitor (RUNP)
This is to set the no. of time of repetition at the start point and end point.
NOTE: The setting value of the “No. of Executions Setting ” and “No. of Executions” done will be shown alternately only
on the display of the controller unit.

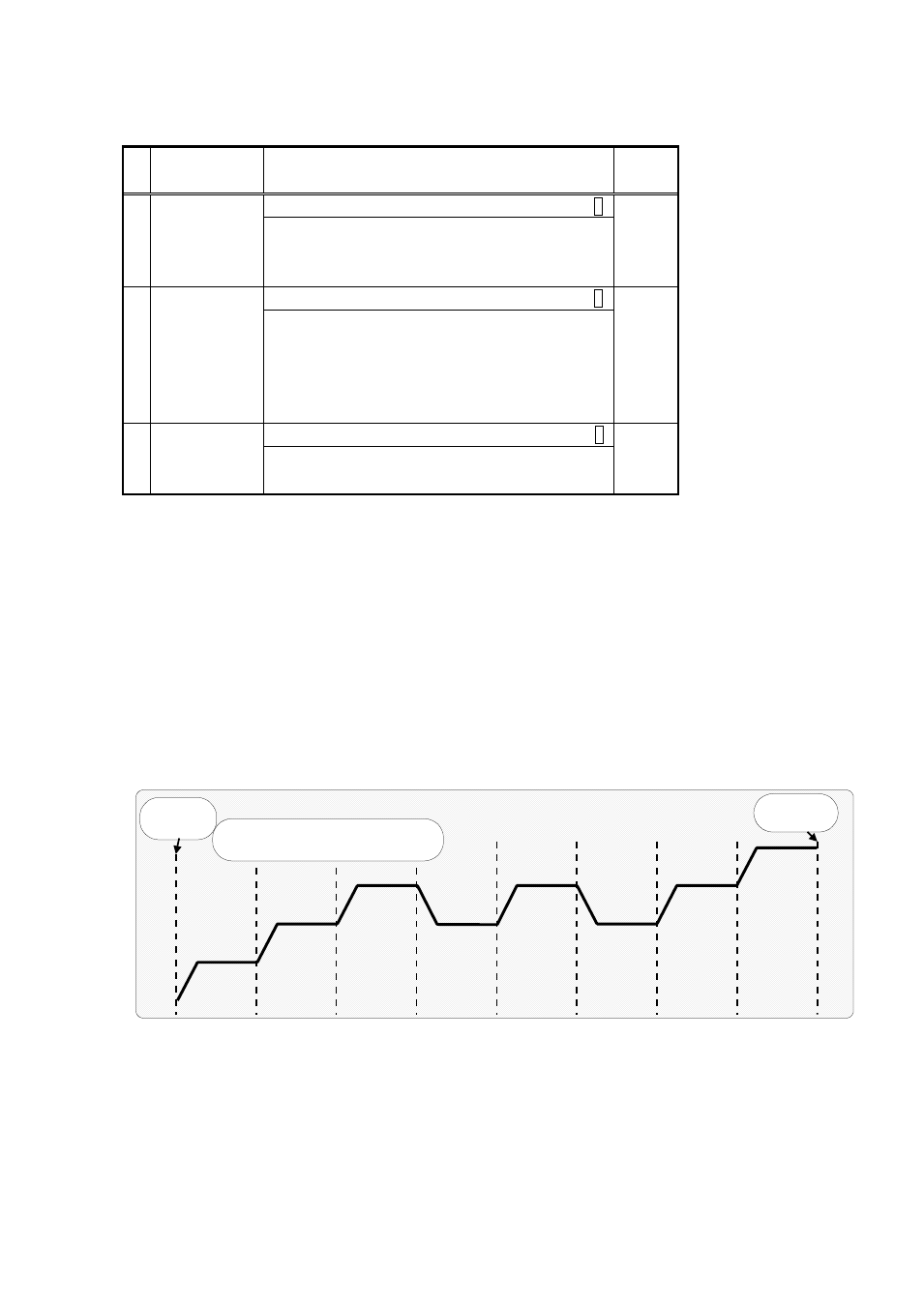

■ Repeat Operation Behavior Diagram
STEP1 STEP2 STEP3 STEP2 STEP3 STEP2 STEP3 STEP4
programmed
operation
start
Repeated Start Step Setting : STEP2
Repeated End Step Setting : STEP3
Setting No. of Executions : 3 times
programmed
operation
end
Above is usage example of Repeat Operation Function
