TOHO ELECTRONICS TTM200 User Manual
Page 28

48-7009-E
3-6

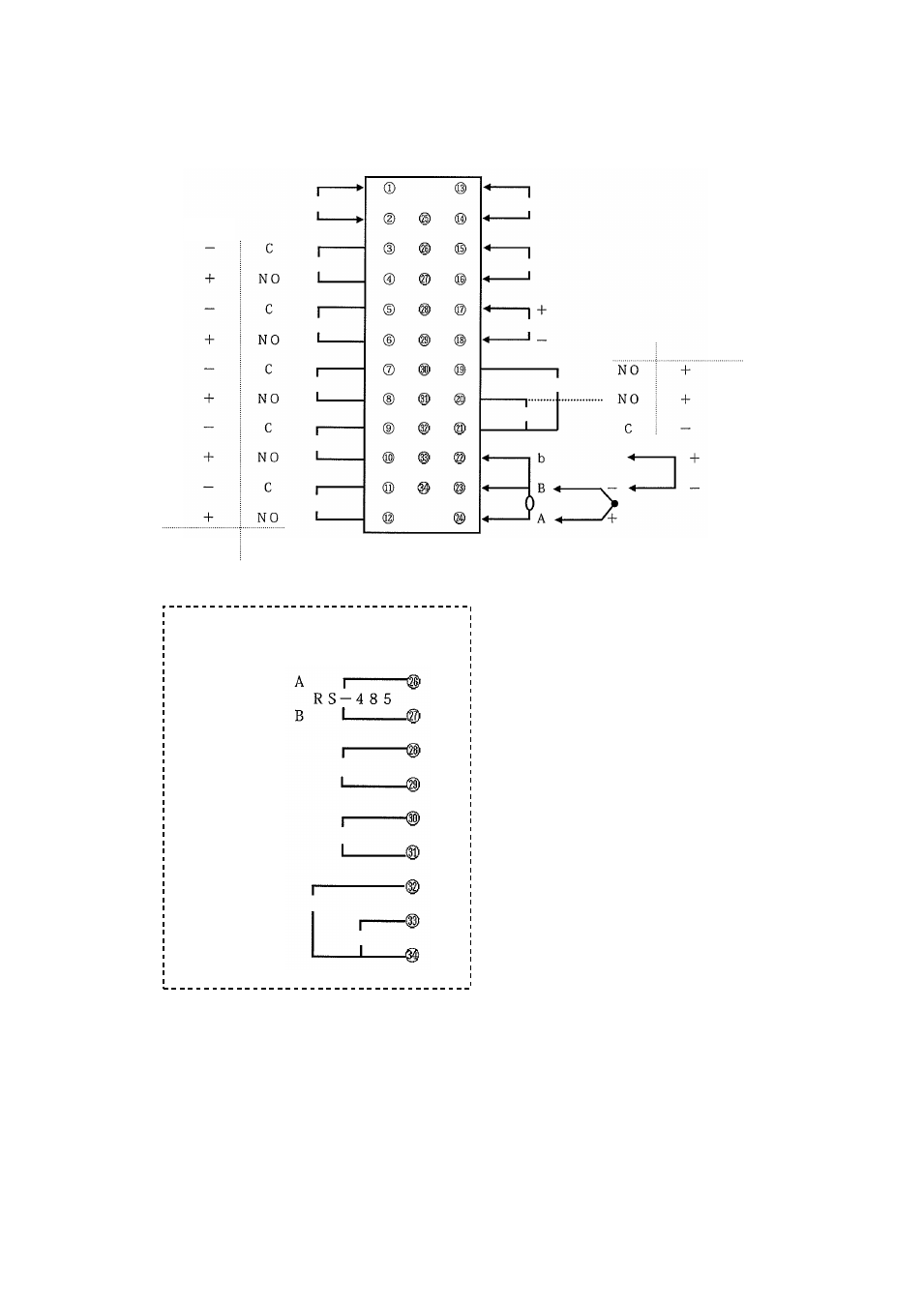

★ TTM-205/209
Other than
relay output
Relay
Input power supply
Output 1
Output 2
Output 5
Output 6
Output 7
AI input (models in voltage and current)
Relay
Open collector
* Outputs 3 and 4 are for common (C) shared
Output 3
Output 4
RTD input
TC input
0 - 10 mV input
Analog input
CT 2 input
CT 1 input
Communication + DI
DI 1 input
DI 2 input
DI 3 input
DI 4 input
Main body rear surface terminals
+
+
+
+
-
-
-
