TOHO ELECTRONICS TTM200 - Manual (Page 217)

48-7009-E 6-69
■ CT at-abnormality display color
SEt18
INIt
Setting content Initial value
9 E3dSP
0
1
2 Green
Red
Orange
1
Set the display color for CT abnormality.
■ Loop at-abnormality display color
SEt18
INIt
Setting content Initial value
10 E4dSP
0
1
2 Green
Red
Orange
1
Set the display color for loop abnormality.
■ Blind function effective/ineffective setting
SEt18
INIt
Setting content Initial value
11 bLd
0 Blind function nonexistent
1
1 Blind function existent
For displaying the screen blinded by using the blind function, set bLd to “0.”
For not displaying the screen blinded, set bLd to “1.”
■ Backup of the setting value
SEt18
INIt
Setting content Initial value
12 bKUP
Backup starts by a 2-second press of the FUNC key.
“SAVE” is displayed during backup. Upon completion of backup, display of
“SAVE” disappears.
The setting value is backed up.
The data flow is shown below.

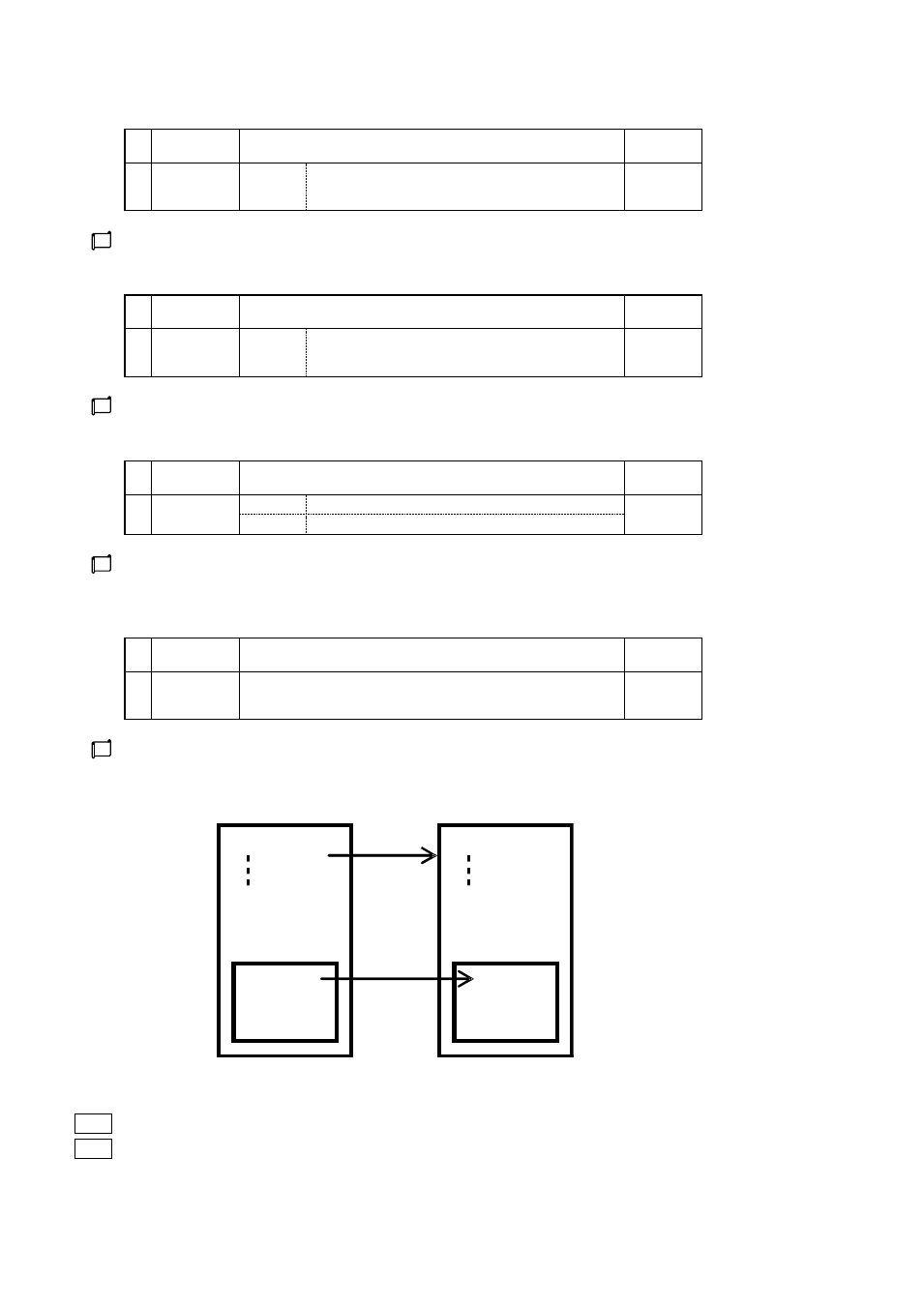

Backup explanation diagram
ＩＮＰ ＩＮＰ
Storage area
for operation
Bank
Area for
backup
Bank
Settings for the priority screen function, bank function and blind function are also backed up.
Note During backing up, response in communication is on nak 2.
Note During backing up, switchover of DI is not reflected.
