■ Primary control off-point position selection setting
SEt04
CNt
Setting content Initial value
32 CMod
0 SV unit setting
0
1 Upper
2 Middle
3 Lower
Set the primary control off-point position selection.
Set the selection setting to “0” for allowing to set the off-point position of sensitivity in the SV setting unit of °C and such.
Set the selection setting to “1” to “3” for automatically setting the off-point position of the primary control to upper, middle or
lower position with respect to SV.

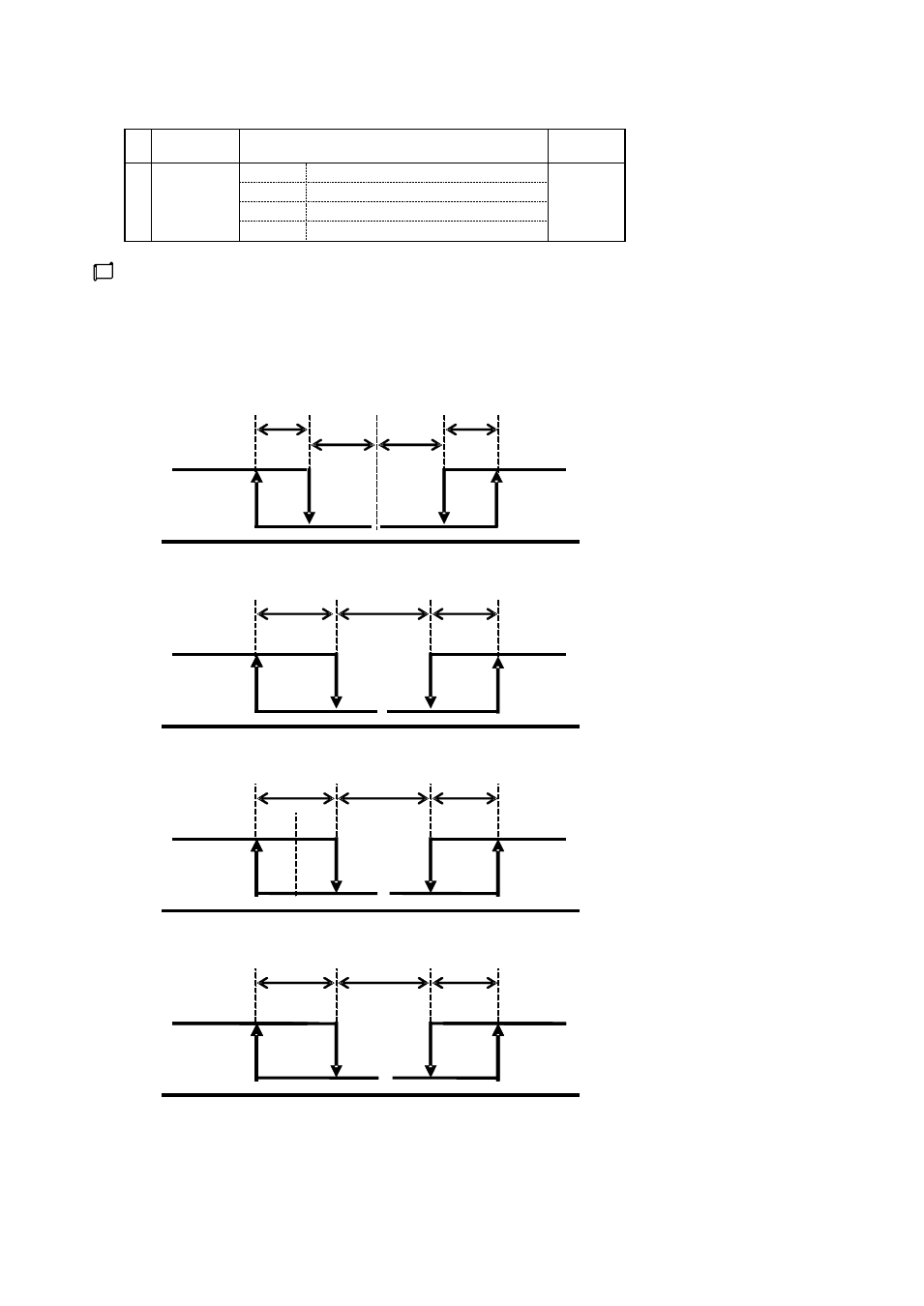

Cmod = 0 (SV)
Ｃ１ ＣＰ１ ＣＰ２ Ｃ２
＋ｄｂ
ＯＮ
ＯＦＦ
△
ＰＶ
Low ＳＶ High
Cmod = 1 (upper)
Ｃ１ ｄｂ Ｃ２
ＯＮ
ＯＦＦ
△
ＰＶ
Low ＳＶ High
Cmod = 2 (middle)
Ｃ１ ｄｂ Ｃ２
ＯＮ
ＯＦＦ
△
ＰＶ
Low
ＳＶ High
Cmod = 3 (lower)
Ｃ１ ｄｂ Ｃ２
ＯＮ
ＯＦＦ
△
ＰＶ
Low
ＳＶ High
C1: Sensitivity setting 1
C2: Sensitivity setting 2
CP1: Off-point setting 1 = negative value
CP2: Off-point setting 2 = positive value
db: Dead band = positive value
C1: Sensitivity setting 1
C2: Sensitivity setting 2
db: Dead band = positive value
C1: Sensitivity setting 1
C2: Sensitivity setting 2
db: Dead band = positive value
C1: Sensitivity setting 1
C2: Sensitivity setting 2
db: Dead band = positive value
