48-7009-E 4-22
4.2.5 How to set the SV limiter setting
The SV limiter is for setting a settable range with upper and lower limits.
The range is a basis for setting the proportional band for the PID control.

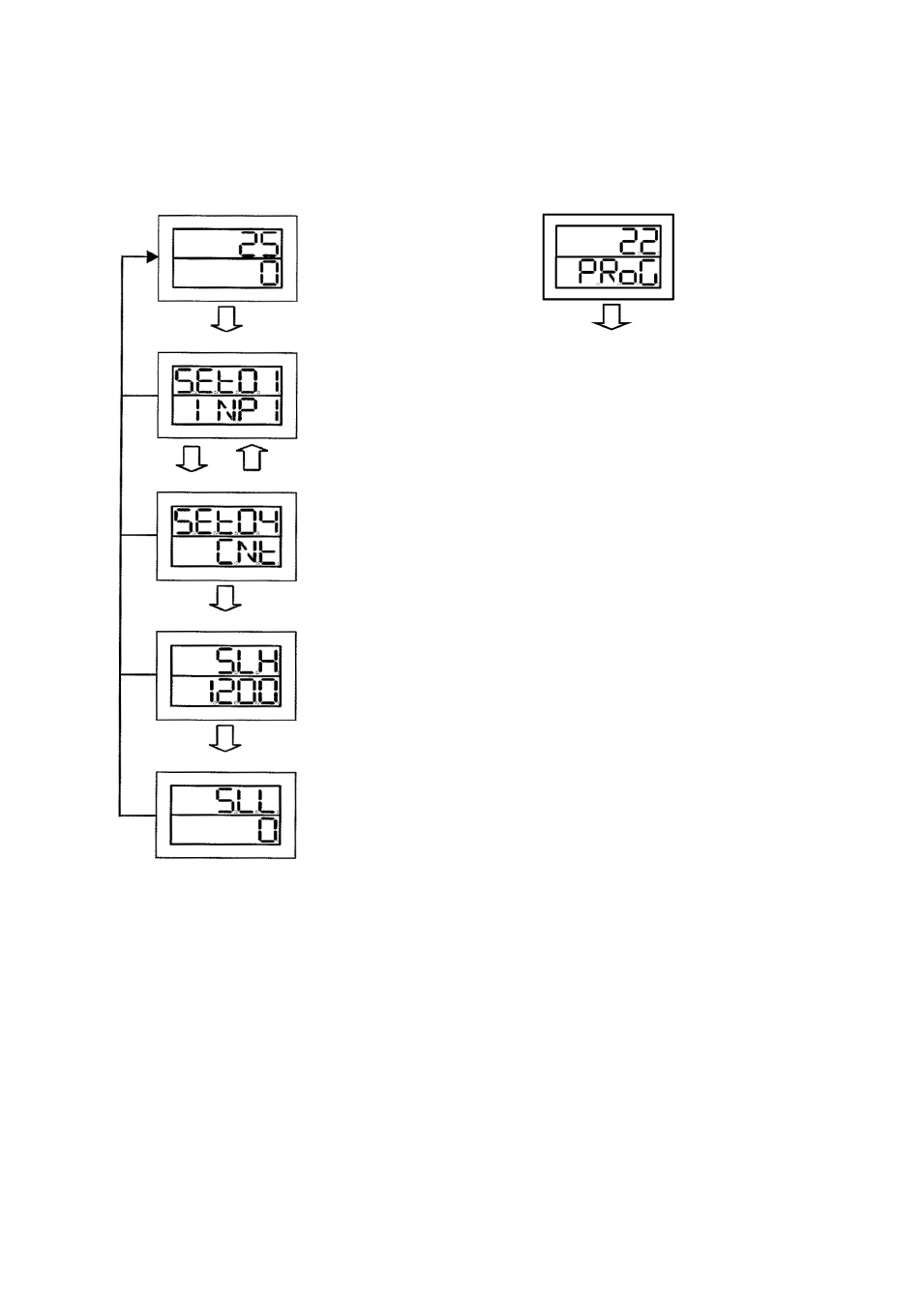

Constant value run mode screen
PV value (present value)
SV value (target value)
Hold MODE key pressed for 2 seconds.
Input 1 setting screen
Each set screen
Each setting mode
Press the ▲ key three times.
Press it, however, twice for TTM-204.
Control setting mode
Press MODE key three times.
S04-3 SV limiter upper limit setting screen
* The SV limiter upper limit is set in this screen.
* Use the ▲/▼ key for the setting.
* The set value is a value of MAX (upper limit) for which the SV setting is allowed.
* The value is set at “1200” at factory shipment.
* A small value of SLH contributes to prevent erroneous setting operation, resulting in
prevention of fire or failure.
S04-4 SV limiter lower limit setting screen
* The SV limiter lower limit is set in this screen.
* Use the ▲/▼ key for the setting.
* The set value is a value of MIN (lower limit) for which the SV setting is allowed.
* The value is set at “0” at factory shipment.
* Holding the MODE key pressed for 2 seconds moves each setting screen to the operating mode screen.
* In about 2 minutes, each setting screen (or any setting screen) automatically moves back to the operating
mode screen.
H
o
ld
M
O
D
E
k
ey
p
re
sse
d
f
o
r
2
s
ec
o
n
d
s.
For program run mode screen:
PV value (present value)
SV value (PRoG)
Hold MODE key pressed for 2 seconds
Setting mode is the same as that for constant
value run mode.
(To input 1 setting screen)
