TOHO ELECTRONICS TTM200 User Manual

Page 51

48-7009-E

4-10

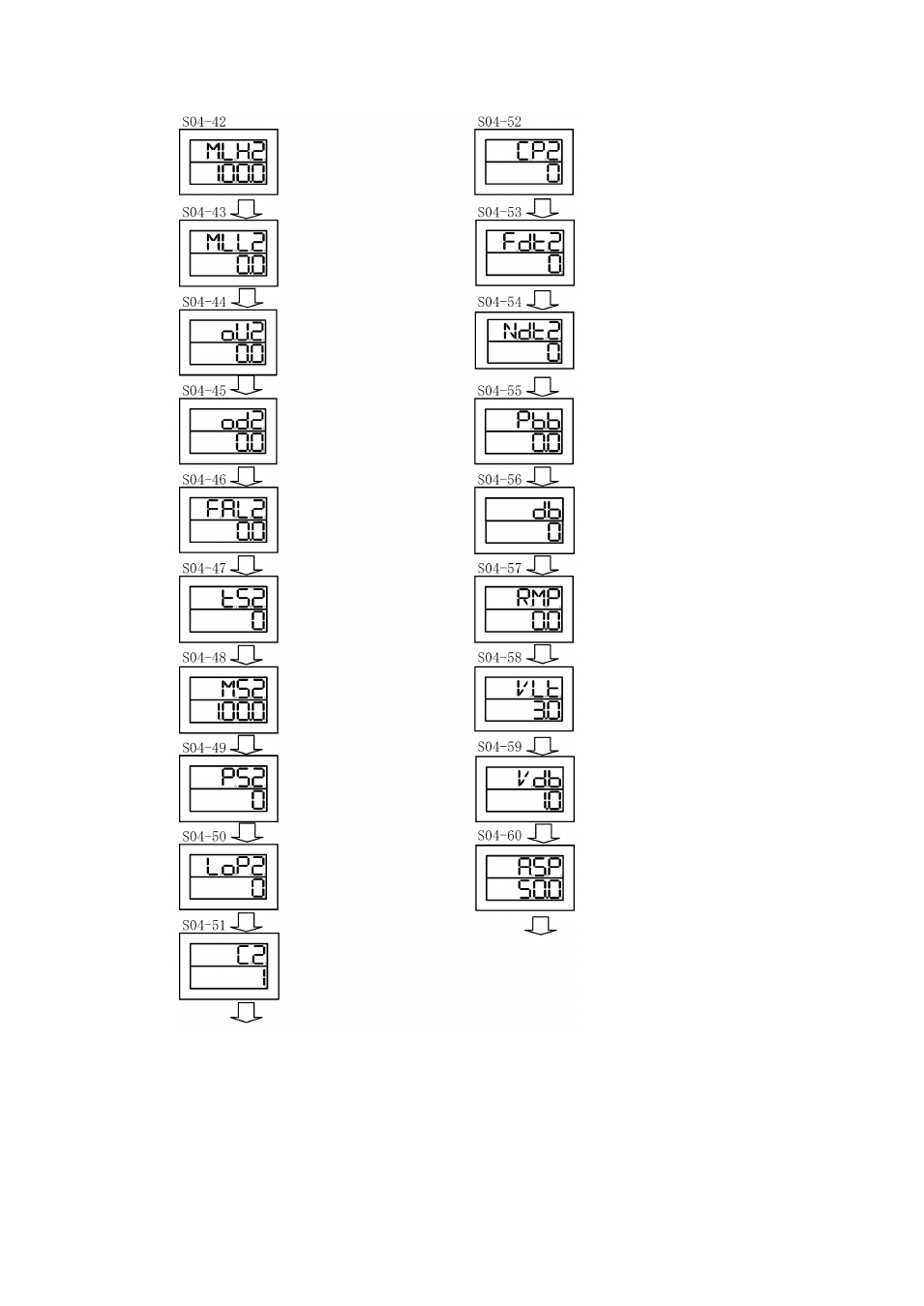

42. Setting of secondary

control operation amount
limiter upper limit

To S04-52

MODE key

43. Setting of secondary

control operation amount
limiter lower limit

44. Setting of secondary

control operation amount
change rate limiter
ascending

45. Setting of secondary

control operation amount
change rate limiter
descending

46. Setting of secondary

control operation amount
at fault

47. Setting of secondary

control loop anomaly PV
threshold

48. Setting of secondary

control loop anomaly MV
threshold

49. Setting of secondary

control loop anomaly PV
change threshold

50. Setting of secondary

control loop fault time

51. Setting of secondary

control sensitivity

52. Setting of secondary

control OFF point
position

53. Secondary control

safeguard off timer
(0 to 99 minutes)

54. Secondary control

safeguard on timer
(0 to 99 minutes)

55. Setting of manual reset

56. Setting of dead band

57. Setting of Ramp time

58. Setting of valve motor

stroke time

59. Setting of valve motor

drive dead band

60. Initial open ratio after AT

completion

To SET 04, item 0

MODE key
