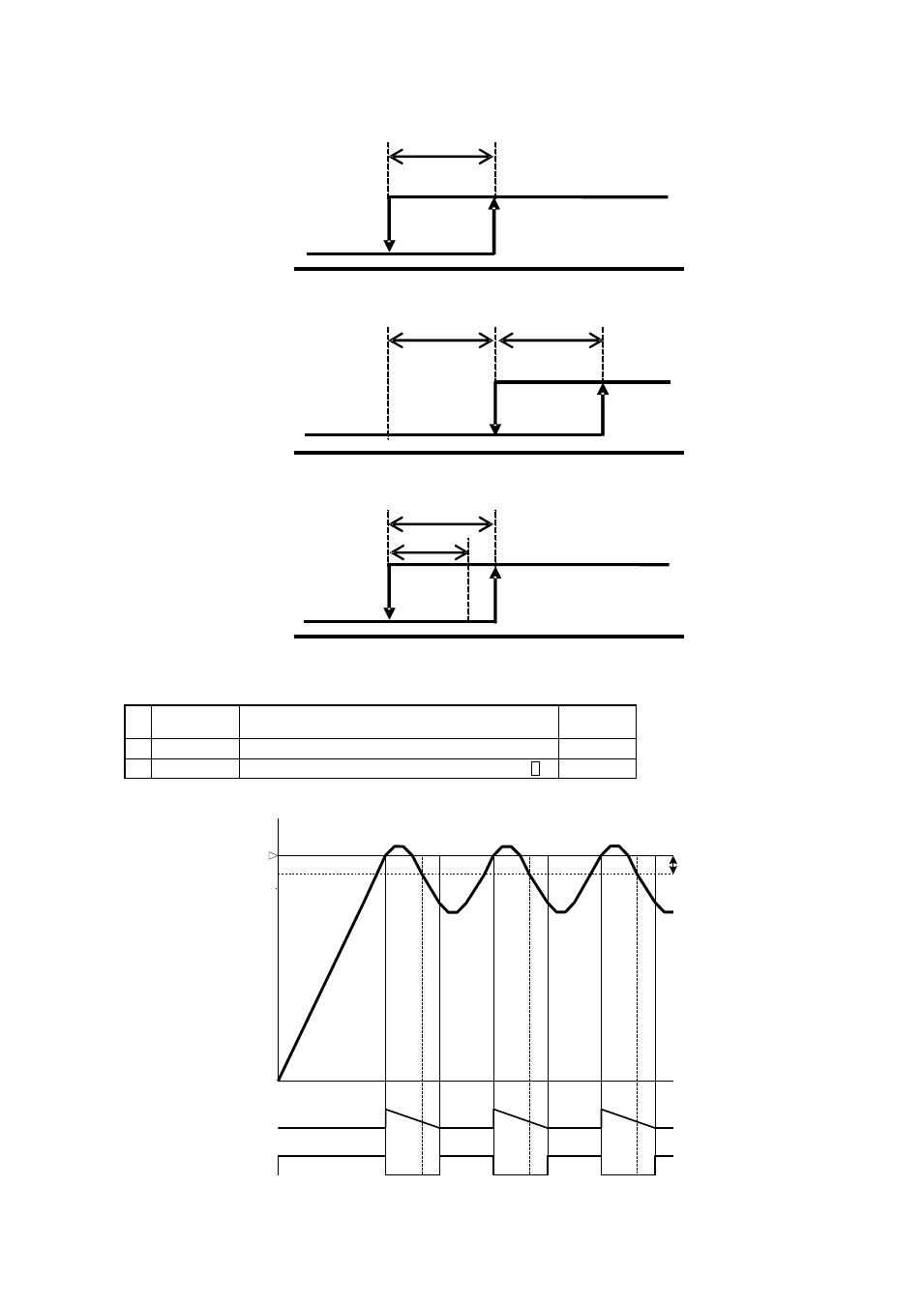

Off-point CP1 = 0 Ｃ１
ＯＮ
ＯＦＦ
△ ＰＶ
Low ＳＶ High
Off-point CP1 = positive value
ＣＰ１ Ｃ１
ＯＮ
ＯＦＦ
△ C point ＰＶ
Low ＳＶ High
Off-point CP1 = negative value Ｃ１
ＣＰ１
ＯＮ
ＯＦＦ
D point △ ＰＶ
Low ＳＶ High
C1: Sensitivity setting
C1: Sensitivity setting
CP1: Off-point position
C point: SV + CP1
C1: Sensitivity setting
CP1: Off-point position
D point: SV - CP1
■ Primary control protection timer
SEt04
CNt
Setting content Initial value
36 Fdt1 0 to 99 (minutes) 0
37 Ndt1 Main Control Protection on Timer 0~99(min.) 3 0
BEHAVIOR DURING THE SETTING OF MAIN CONTROL PROTECTION OFF TIMER
Setting value
Temperature
Control
output
Control
sensitivity
ON
OFF
Protection
timer
