48-7009-E
5-30

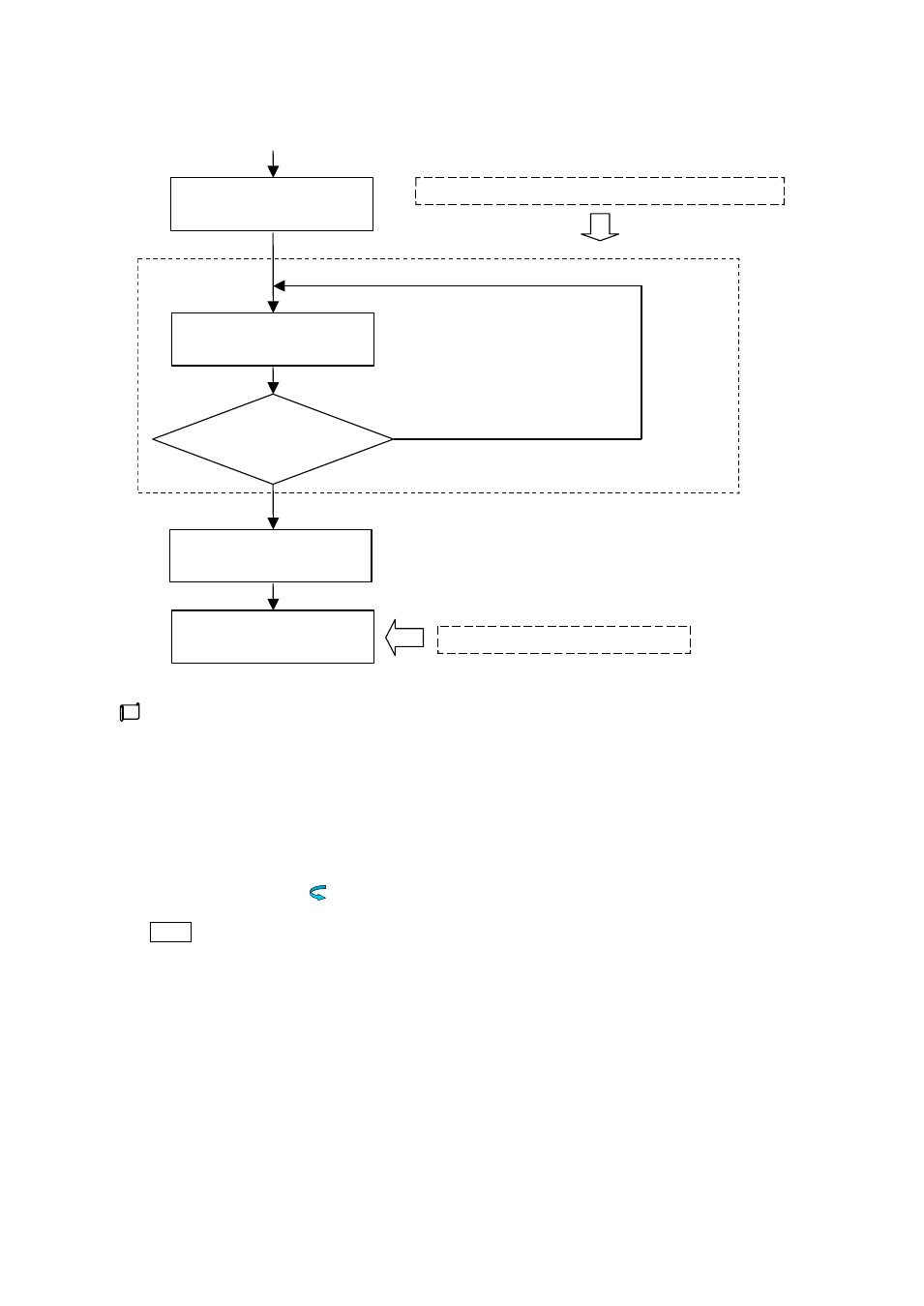

Set corresponding parameters into each bank.
Set the bank as the one to be used.
From ①
△/▽ key
Control setting mode
SET 04 screen
MODE key
Bank switchover
bANK * screen
bANK *: 0 to 7
Parameter setting
Other bank setting to be made
Bank already set
Control setting mode
SET 04 screen
Bank switchover
bANK * screen
MODE key
MODE key
Recording the switchover of banks
① Change of the control setting mode using “bank switchover” ---
The change is recorded when the MODE key is pressed (or when the screen moves to a next
screen.)
Take care that none is recorded when the △/▽ key is used for switchover.
② FUNC key .............. The change is recorded when the FUNC key is pressed.
③ DI ........................... The change is recorded when switchover is made in DI.
④ Communication ...... Only parameters for which limits are set when communication is used for
switchover. Recording is executed absolutely with “STR (store)” command.
STR .....See the chapter for communication in the operation manual.
Note Take care the switchover according to the items 2 to 4, since limiters may interfere with
setting values for parameters.
< Parameters with limits >
① Input type setting .................... INP 1, INP 2
② Decimal point position ........... dP 1, dP 2
③ Celsius/Fahrenheit .................. °C/°F
Example: Where the input type is changed from K thermocouple to T thermocouple
Setting values of SV limiter upper limit and lower limit change due to the setting range
narrower with T thermocouple.
