48-7009-E 5-67
■ Regarding repetitive run
A repetitive run of a designated step can be executed during a program run. Any step (as a whole or
part) of program steps set in SET 22 can be repeated.

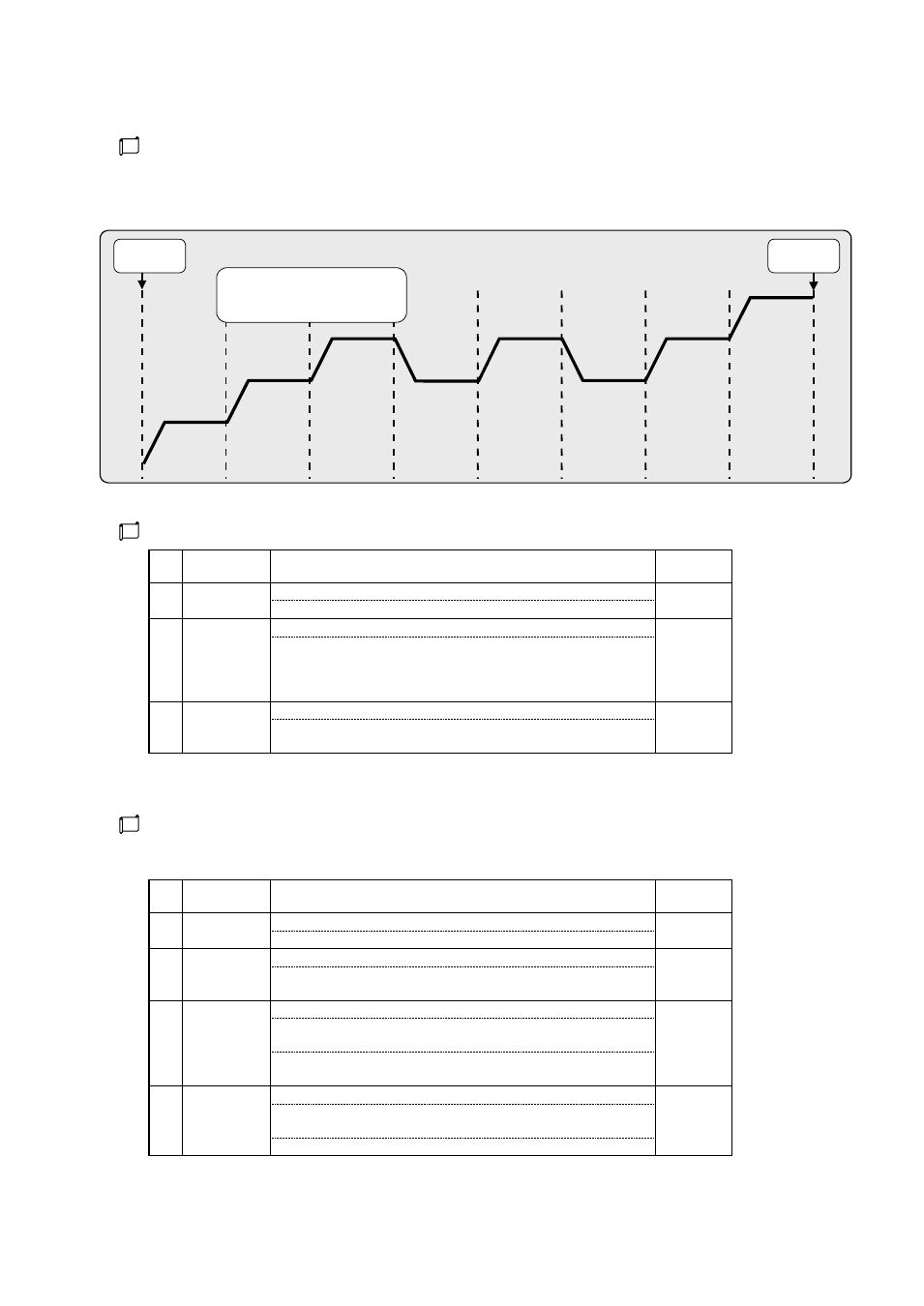

The diagram below shows an example of using this function where the steps 2 and 3 of total 4 steps are
repeated 3 times.
STEP1 STEP2 STEP3 STEP2 STEP3 STEP2 STEP3 STEP4
A program
run begins.
Repetitive start step: STEP 2
Repetitive end step: STEP 3
Repeat count: 3 times
A program
run ends.
The following parameters of SET 22 are used for the repetition setting in program setting mode.
SEt22
PROG
Setting content
Initial
value
5 StRSt
Repetitive start step setting
1
Setting value range: 1 to repetitive end step setting [ENdSt]
6 ENdSt
Repetitive end step setting
StEPN
Repetitive start step setting [StRSt StRSt] up to the
number-of-use-step setting or StEPN
* If StEPN is set, the value set for the number-of-use-step setting
is a setting for “repetitive end step setting.”
7 RUNP
Execution count setting
1 Setting value range: RUNP

0 to 9999
RUNP

0: Unlimited count
In the above example, the setting values are: StRSt

2, ENdSt

3 and RUNP

3.
Use the parameters listed below for the program step data setting in program setting mode.
(Setting regarding the program step data)
SEt22
PROG
Setting content
Initial
value
1 StEPN
Number-of-use-step setting
8
Setting value range: n = 1 to 8
2 St*bK
Step* designated bank setting
0 Setting value range: St*BK = 0 to 7
* = 1 to 8
3 SV*
Step SV* value
0
Setting range value: SV* = SLL to SLH
* 1 to 8
* If SLL or SLH are set in a bank, the value of SLL or SLH is set
for each bank.
4 tIM*
Step* time
00:00
Setting value range: TIM* = 00:00 to 99:59
* = 1 to 8
* With 00:00, a run unlimitedly continues.
