48-7009-E 5-39

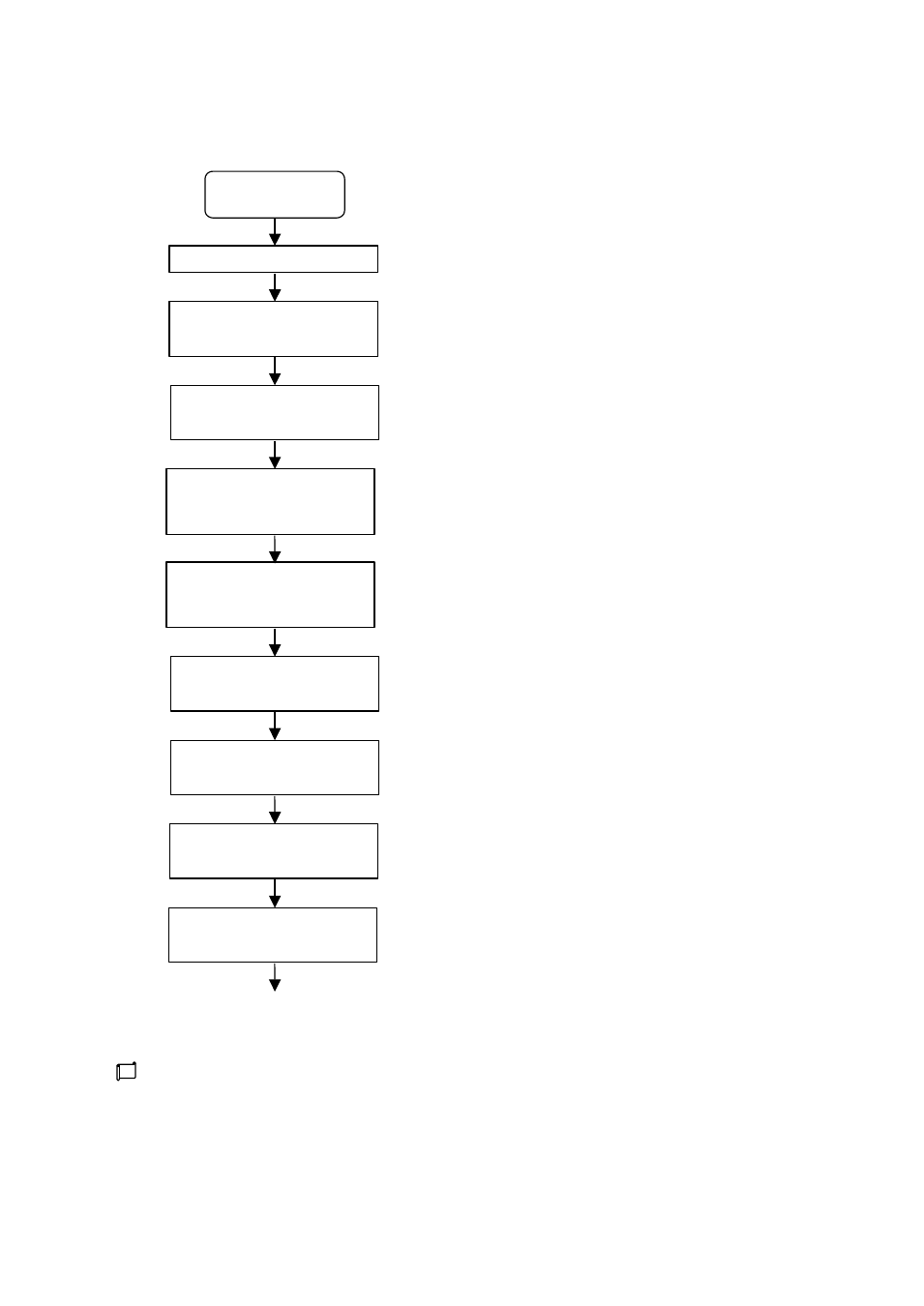

< How to set >
Power-on
About 4 seconds (automatic)
Operating mode
MODE key: 2 seconds
Input 1 setting mode
SET 01 screen
△/▽ key
Control setting mode
SET 04 screen
MODE key
Primary control loop
abnormality time setting
LoP 1
Set the primary control abnormality
time setting, using the △/▽ key.
Secondary control loop
abnormality time setting
LoP 2
Set the secondary control abnormality
time setting, using the △/▽ key.
Control setting mode
SET 04 screen
OUT 1 to 7 setting mode
SET 05 to 11 screens
Set the screen to OUT * output screen, which is used for
outputting the loop abnormality, using the △/▽ key.
(Select among OUT 1 to 7.)
Target connection setting
o * F
Set it to the event output “2”, using
the △/▽ key.
Event function 4 setting
E * F 4
Set it to “01” of the loop abnormality existent
and “11” of the loop abnormality existent +
hold existent, using the △/▽ key.
Setting complete
MODE key
MODE key
△/▽ key
MODE key
MODE key
How to cancel the loop abnormality hold
(1) Set the additional function setting of the event function 4 setting to “0: None.”
(2) Turn off the power when no abnormality is present, and then turn it back on.
