48-7009-E 3-12
★ Output
Model
Terminal No.
Output 1 Output 2 Output 3 Output 4 Output 5 Output 6 Output 7
TTM-204 ③ and ④ ⑤ and ⑥ ⑦ and ⑨ ⑧ and ⑨
TTM-205 ③ and ④ ⑤ and ⑥ ⑲ and ○
21 ⑳ and ○ 21 ⑦ and ⑧ ⑨ and ⑩ ⑪ and ⑫
TTM-207 ③ and ④ ⑤ and ⑥ ⑪ and ⑬ ⑫ and ⑬ ⑦ and ⑧ ○
23 and ○ 24
TTM-209 ③ and ④ ⑤ and ⑥ ⑲ and ○
21 ⑳ and ○ 21 ⑦ and ⑧ ⑨ and ⑩ ⑪ and ⑫
 Assignment of outputs
Type of output Output 1 Output 2 Output 3 Output 4 Output 5 Output 6 Output 7
Primary output
(heating)
      
Secondary output
(cooling)
      
Transmission
output
      
Event output       
Timer output       
End output       
: Output assignment possible
: Output assignment not possible
 Type of output and specification
* Outputs 1 and 2
Relay contact 250 VAC, 3 A (resistance loads) and 1a contact
Voltage for SSR drive 0 - 12 VDC (load resistance: 600

or greater)
Open collector 24 VDC, 100 mA (load current)
Voltage 0 - 5 VDC, 1 - 5 VDC and 0 - 10 VDC
(resistance loads: 1 k

or greater)
0 - 1 VDC and 0 - 10 mVDC (load resistance: 500 k

or greater)
Current 4 - 20 mADC (load resistance: 600

or less)
* Outputs 3, 4, 5, 6 and 7
Relay contact 250 VAC, 1 A (resistance loads) and 1a contact
Open collector 24 VDC, 100 mA (load current)

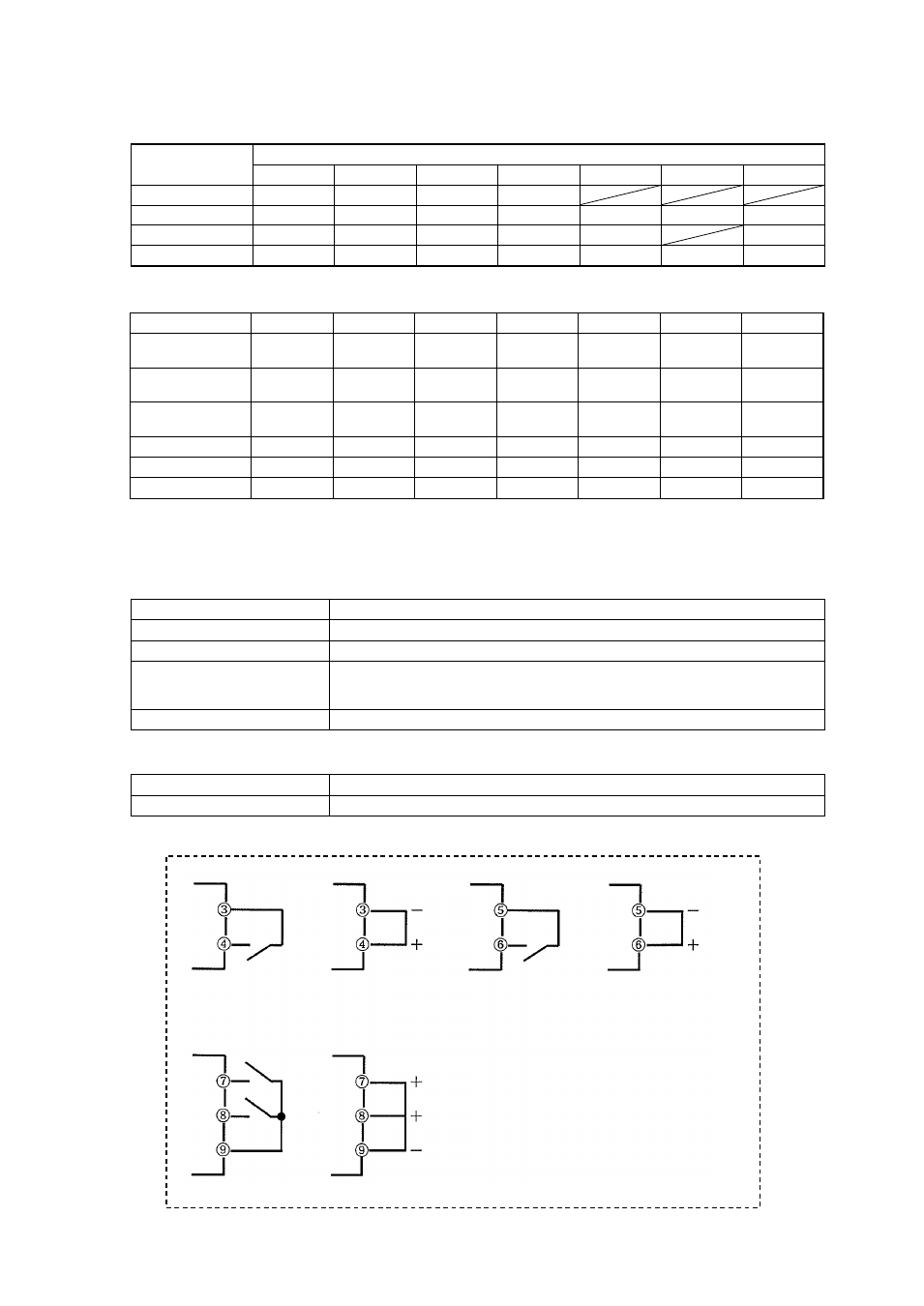

TTM-204
Output 1 Output 2
Outputs 3 and 4
Relay SSR/current/voltage/
open collector Relay SSR/current/voltage/
open collector
* Outputs 3 and 4 are for common shared
Relay Open collector
