TOHO ELECTRONICS TTM200 User Manual
Page 84

48-7009-E
5-14
Continued from the previous page

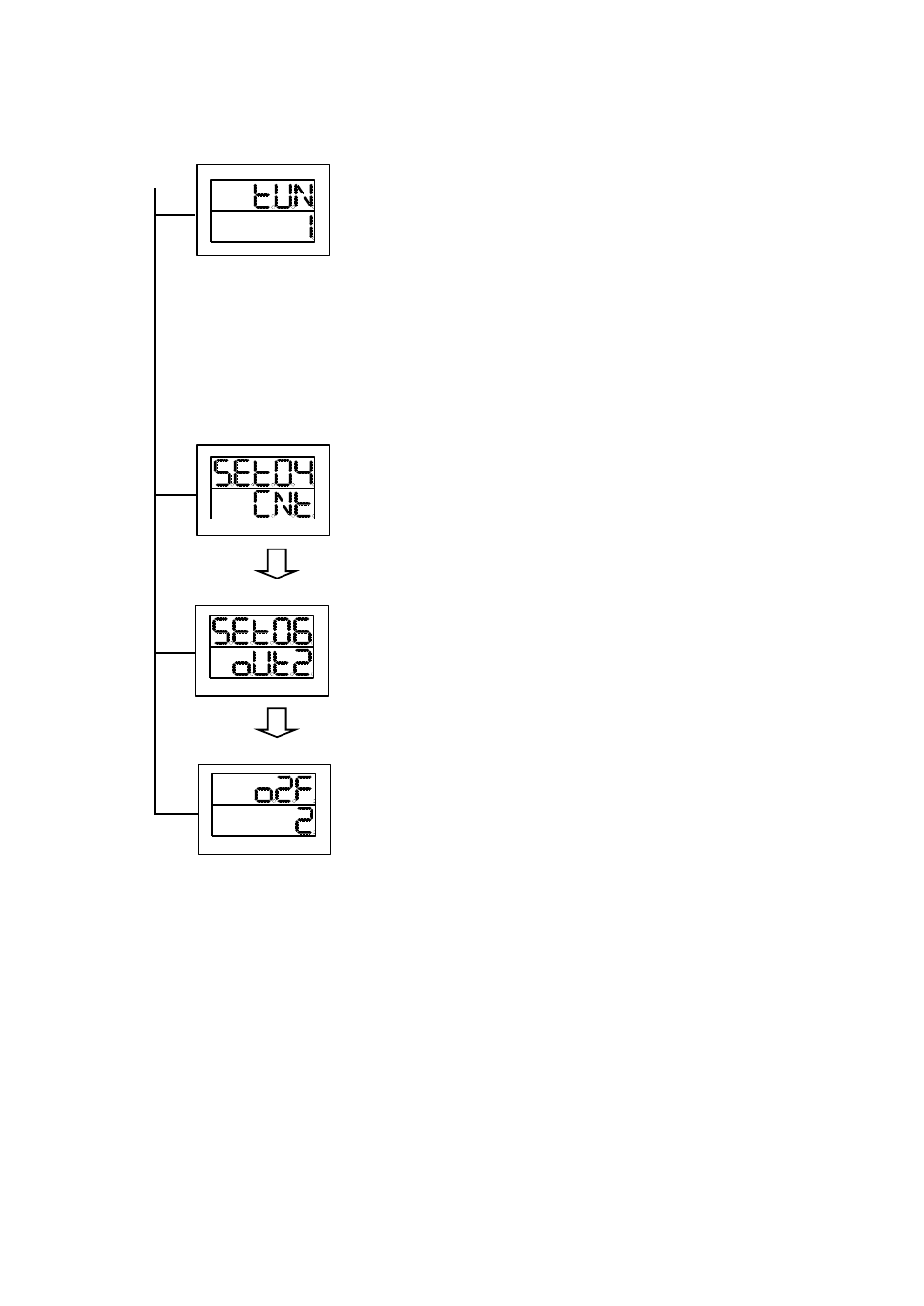

S04-12 Tuning type setting screen
* Tuning types are set in this screen.
* Use the ▲/▼ key for the setting.
* The value is set at “1” at factory shipment.
Changing “1” to “5” results in “PID auto-tuning” for both primary and secondary
controls.
Press ▲ key twice.
Control setting mode
Each set screen
Each setting mode
Press MODE key once.
OUT 2 setting screen
Each set screen
Each setting mode
S06-1 Target connection setting screen
The above operations determine the setting of control types.
Output function (target connection) is to be set next.
Move the tuning type setting screen to the control setting mode screen, using the MODE key.
H
o
ld
M
O
D
E
k
ey
p
re
ss
ed
fo
r
2
se
co
n
d
s.
* The target connection (output function) is set for OUT 2 (output 2) in this screen.
* Use the ▼ key for the setting.
* The value is set at “2” at factory shipment.
Changing the setting from “2” to “1” results in the secondary control (cooling)
output.
* For how to set PID, see page 5-9, item 5-3-3, “PID control setting.”
For the heating/cooling control, no self-tuning function is provided.
* Holding the MODE key pressed for 2 seconds moves each setting screen to the run mode screen.
* In about 2 minutes, each setting screen (or any setting screen) automatically moves back to the run mode
screen.
