TOHO ELECTRONICS TTM200 User Manual
Page 82

48-7009-E
5-12

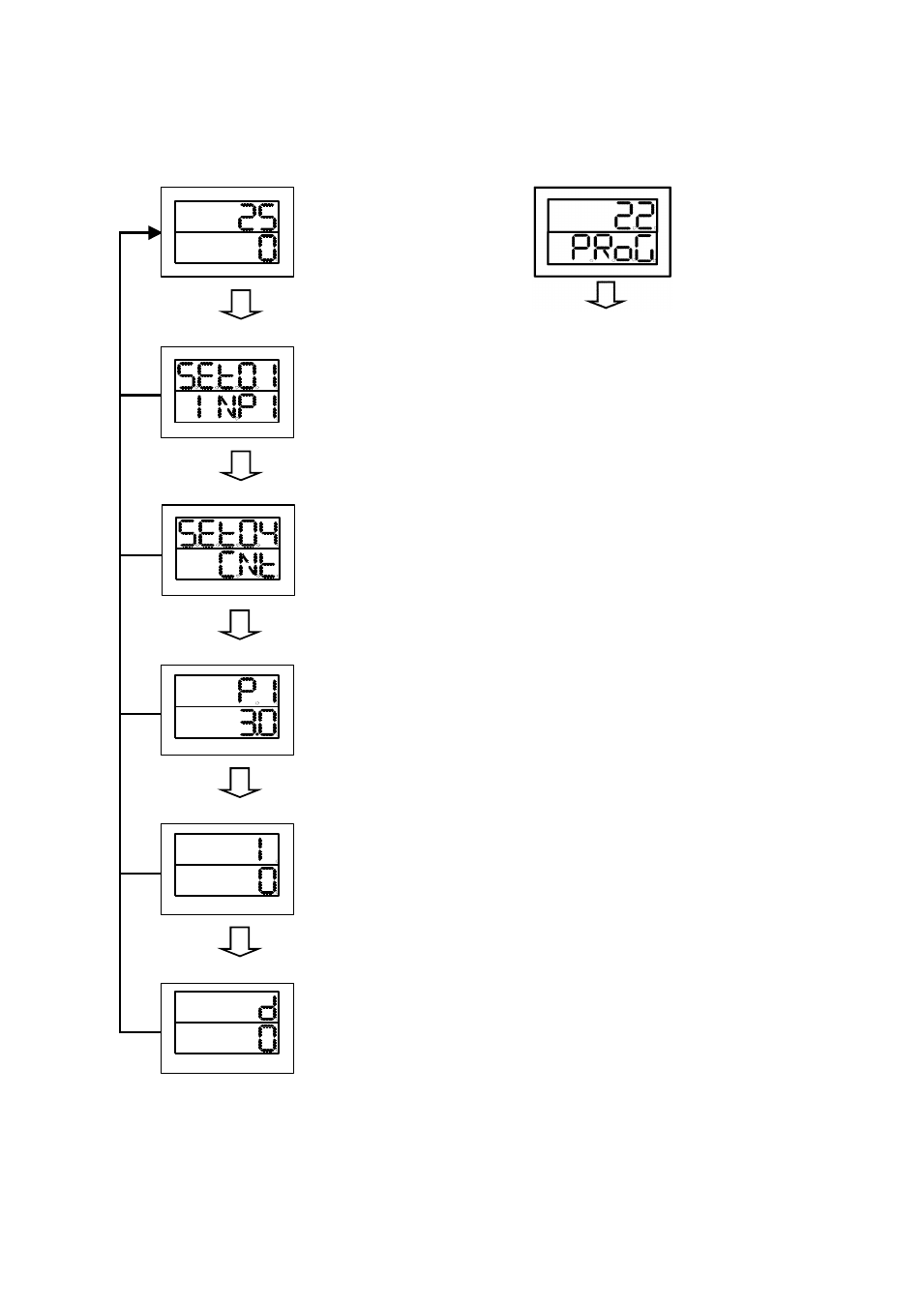

3) How to manually set the PID constant
* The PID constant is set manually and individually in SET 04 (control setting mode).
For constant value run mode screen:
PV value (present value)
SV value (target value)
Hold MODE key pressed for 2 seconds.
Input 1 setting screen
Each set screen
Each setting mode
Press the ▲ key three times. Press it, however, twice for TTM-204.
Press MODE key 16 times.
S04-16 Proportional band (P) setting screen
Control setting mode
Each set screen
Each setting mode
* Proportional band (P) is set in this screen.
* Use the ▲/▼ key for the setting.
* The value is set at “3.0” at factory shipment.
Press MODE key once.
S04-17 Integral time (I) setting screen
* Integral time (I) is set in this screen.
* Use the ▲/▼ key for the setting.
* The value is set at “0” at factory shipment.
“0” indicates no integral operation.
Press MODE key once.
S04-18 Derivative time (D) setting screen
* Derivative time (D) is set in this screen.
* Use the ▲/▼ key for the setting.
* “0” indicates no derivative operation.
* Holding the MODE key pressed for 2 seconds moves each setting screen to the run mode screen.
* In about 2 minutes, each setting screen (or any setting screen) automatically moves back to the run mode
screen.
Ho
ld
M
ODE
k
ey
p
res
se
d
fo
r
2
se
co
n
d
s.
For program run mode screen:
PV value (present value)
SV value (PRoG)
Hold MODE key pressed for 2 seconds.
Setting mode is the same as that for Hereinafter,
to the input 1 setting screen similarly to that for
the constant value run mode
