4.2.9 Switchover to the blind setting mode
How to set the blind function is described.

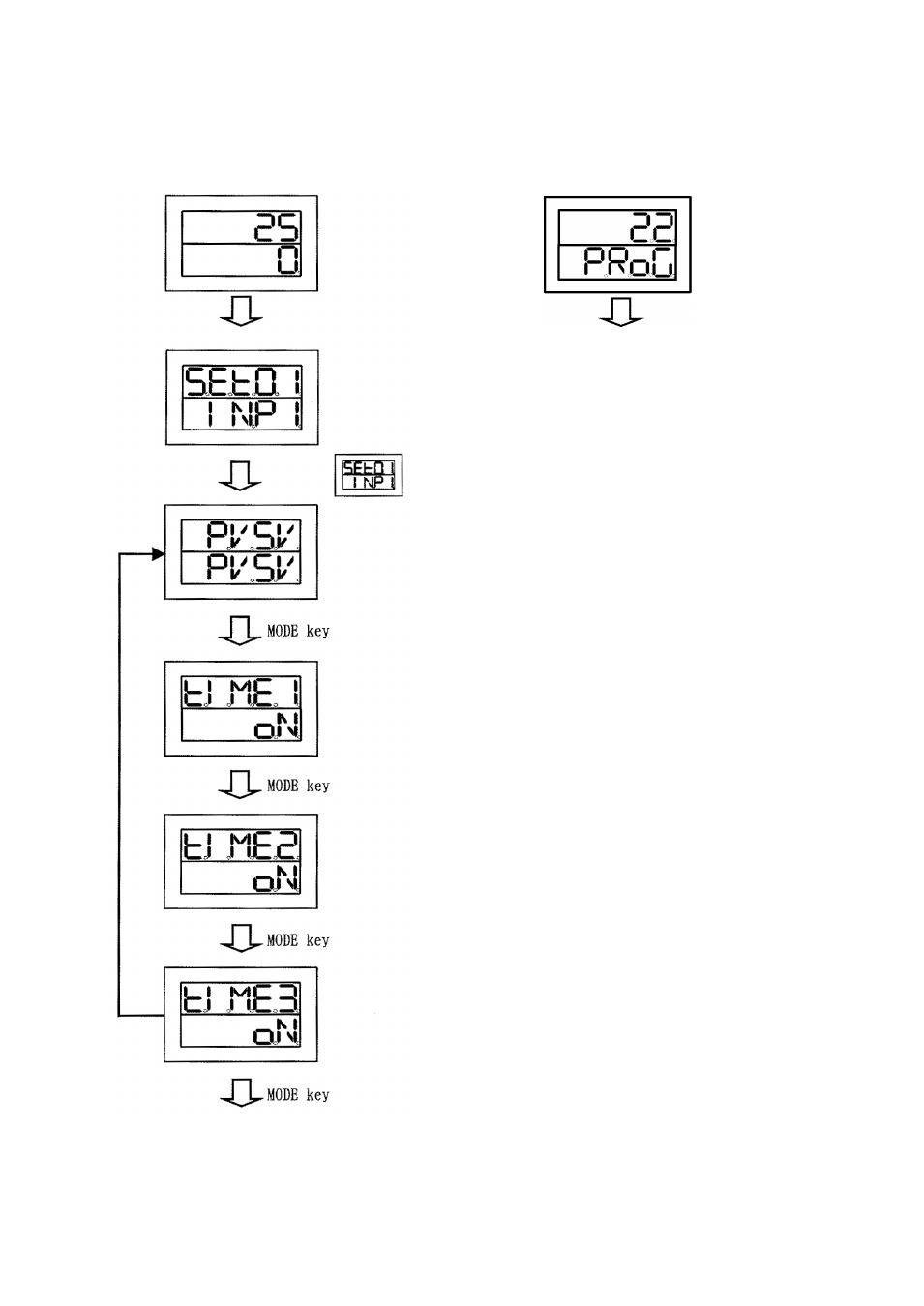

Constant value run mode screen
PV value (present value)
SV value (target value)
Hold MODE key pressed for 10 seconds.
Input 1 setting screen
Each set screen
Each setting mode
When blinks, press the FUNC key, and then press the MODE key.
PV/SV blind setting screen
* Use the FUNC key for its setting.
In a blind state, characters in the lower row (red) are not displayed.
(Pressing the FUNC key results in displaying “PVSV,” “PV,” “SV” and
“PVSV” in sequence.)
MOD
E
k
ey
Timer 1 blind setting screen
* Use the FUNC key for its setting.
When the character “OFF” in the lower row (red) is displayed, the screen is
in a blind state.
Timer 2 blind setting screen
* Use the FUNC key for its setting.
When the character “OFF” in the lower row (red) is displayed, the screen is
in a blind state.
Timer 3 blind setting screen
* Use the FUNC key for its setting.
When the character “OFF” in the lower row (red) is displayed, the screen is
in a blind state.
Continued to the next page
For program run mode screen:
PV value (present value)
SV value (PRoG)
Hold MODE key pressed for 2 seconds
Setting mode is the same as that for constant
value run mode.
(To input 1 setting screen)
