TOHO ELECTRONICS TTM200 User Manual
Page 65

48-7009-E
4-24
Continued from the previous page

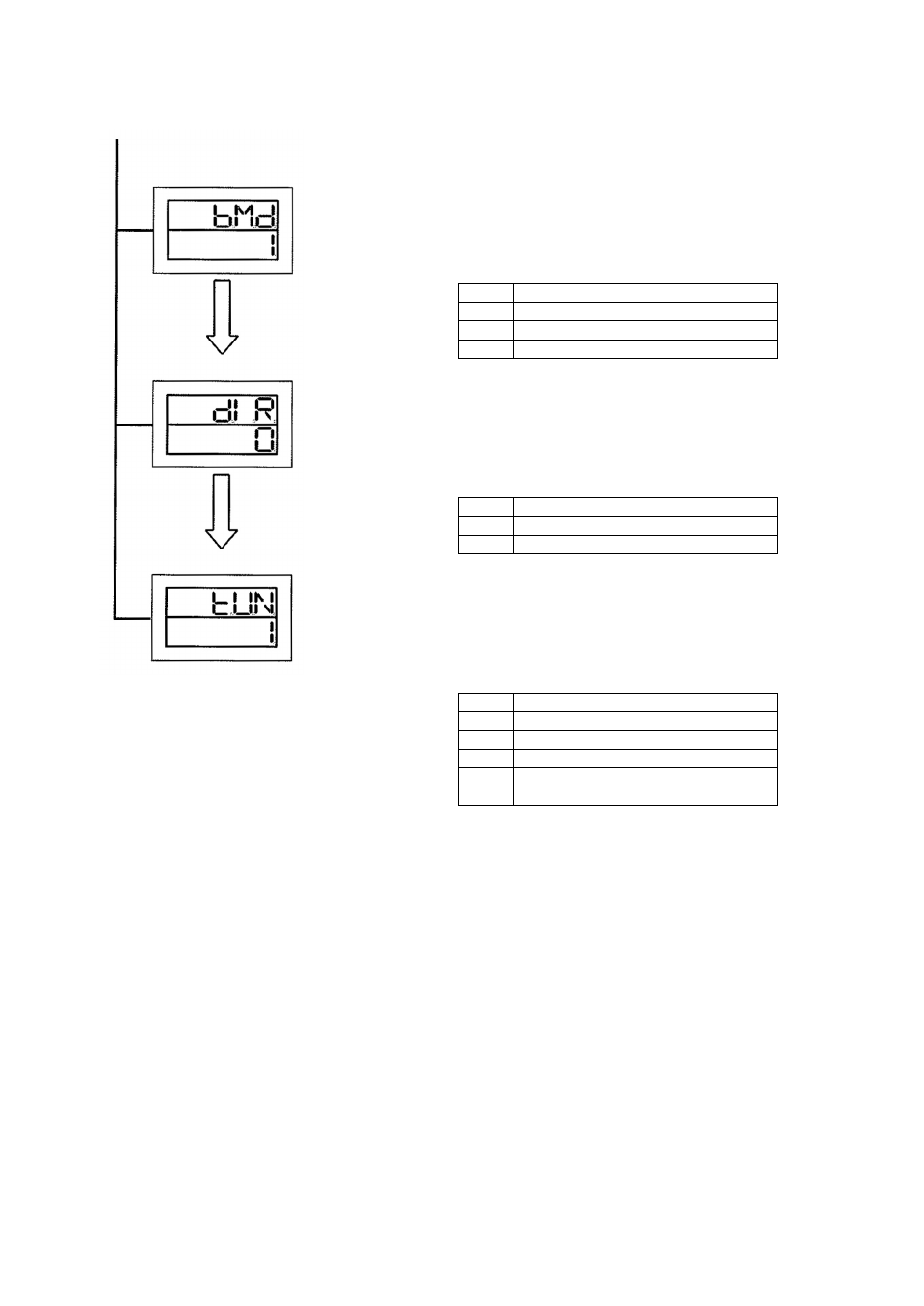

S04-9 Type B mode setting screen
* The type of the PID Type B mode is set in this screen.
* The number displayed in the screen coincident with that listed in the Type B mode setting table.
* Use the ▲/▼ key for the setting.
* The value is set at “1” at factory shipment.
Press MODE key.
S04-10 Forward/reverse operation setting screen
* Forward/reverse operation is set in this screen.
* The number displayed in the screen coincident with that listed in the forward/reverse operation
setting table.
* Use the ▲/▼ key for the setting.
* The value is set at “0” at factory shipment.
Press MODE key
three times.
S04-11 Tuning type setting screen
* The tuning types are set in this screen.
* The number displayed in the screen coincident with that listed in the tuning type setting table.
* Use the ▲/▼ key for the setting.
* The value is set at “1” at factory shipment.
* If the function is not specified for the equipment, corresponding screen is not displayed.
* Holding the MODE key pressed for 2 seconds moves each setting screen to the operating mode screen.
* In about 2 minutes, each setting screen (or any setting screen) automatically moves back to the operating mode screen.
Type B mode setting table
No.
Overshoot
0
Overshoot suppression - Moderate
1
Overshoot suppression - Intermediate
2
Overshoot suppression - Intense
Forward/reverse operation setting table
No.
Operation type
0
Forward operation
1
Reverse operation
Tuning type setting table
No.
Type
1
Primary auto-tuning
2
Primary self-tuning
3
Secondary auto-tuning
4
Secondary self-tuning
5
Primary/secondary auto-tuning
