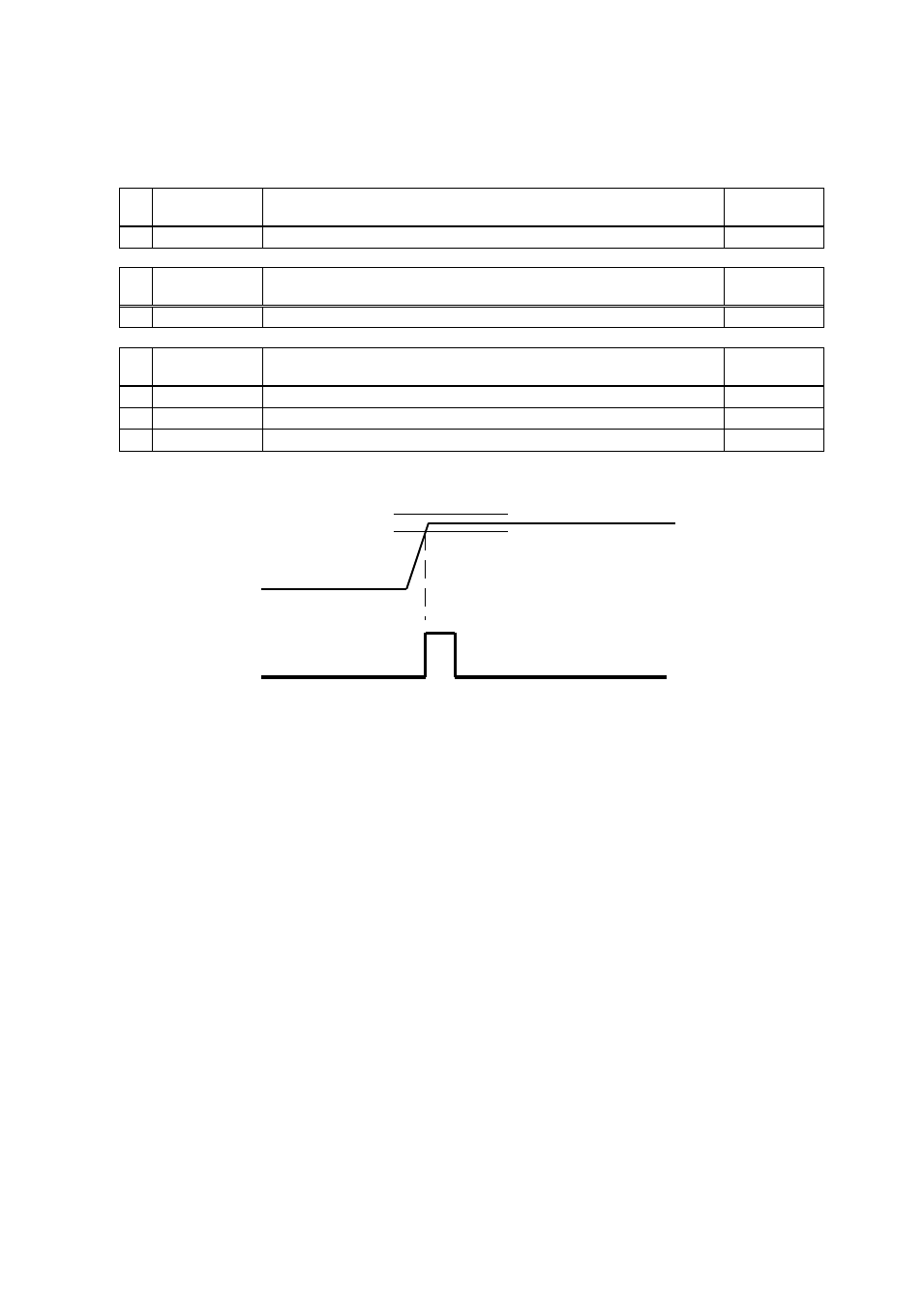

■ Where contact outputs are desired to be provided when a measurement value comes to a target value
(SV start)
Setting example for output 1 to be provided for 1 minute after 180 °C is reached
SEt04
CNt
Name Setting content Setting value
SV Control setting 180

C 180
SEt5
oUt1
Name Setting content Setting value
o1F Target connection setting Timer 1 output 5
SEt04
tIME1
Name Setting content Setting value
tMF1 Function setting SV start 3
tSV1 Start SV permissible range setting Give range of 2 °C 2
oFt1 Off delay timer 1 minute 00:01
Temperature
180℃
Normal
temperature
Output 1
ON
OＦＦ
Contact output is provided for 1 minute
Setting the start SV permissible range
setting to 2 °C results in timer
operation when the value falls in the
range of SV ± 1 ℃.
