TOHO ELECTRONICS TTM200 User Manual

Page 134

48-7009-E

5-64

■ Regarding the time signal output function

A signal of time signal can be output for each step during a program run. Timers 1 to 3 for step time
are usable as is, as a timer independent from those is used for the signal.

Note The function is active only during a run. Timer operation is also halted during In-stop or

After-end.

Note The timer is reset at step switchover and END transition.

Note Timer operation is skipped to make transition with a step time if a time longer than the step time is set.

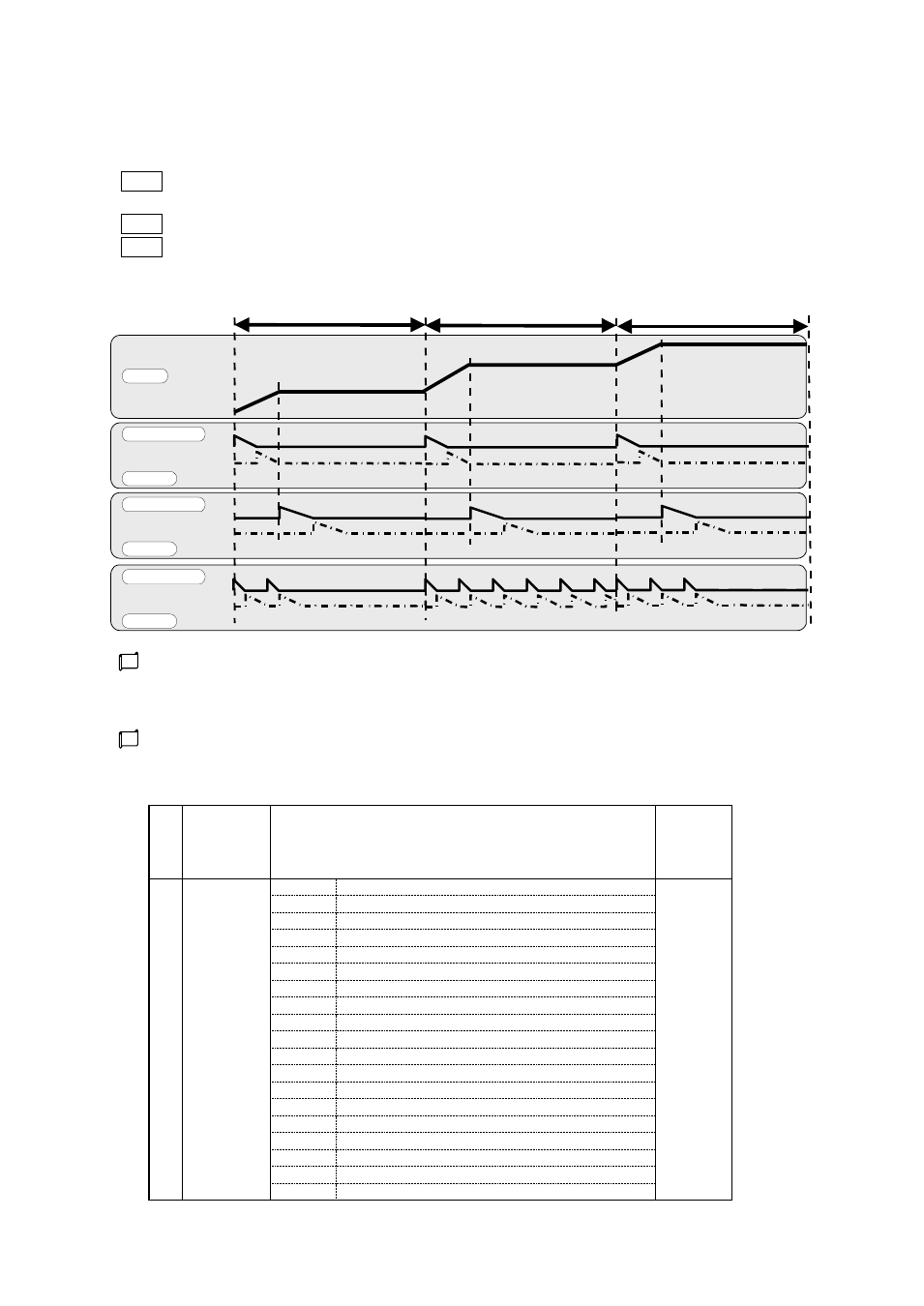

Example for StEPN



Step 1

Step 2

Step 3

Step start

On delay
Off delay

Timer 1

Soak start

On delay
Off delay

Timer 2

Step start

On delay
Off delay

Timer 3

The count of repetition: 1

The count of repetition: 2

The count of repetition: 0 (unlimited)

The count of repetition: 3

All three timers (Timers 1 to 3) are usable at each step. The diagram indicates an example of Timer 1
set for step start, Timer 2 for soak start and Timer 3 for step start. To use a timer for each step,
parameters necessary for the timer function are first set in the bank [SET 20 bNK01 to 16]. For
details, see Section 5.4.5 Timer function (P5-31 to 37).

To use On or Off outputs from Timers 1 to 3 as time signals, set the output destination [o*F] in
“connection destination setting table” to either [5 to 16].

(Connection destination setting table)

SEt05

oUt1

SEt11

oUt7

Setting content

Initial value

o1F

o7F

0 Primary output

o1F:0

o2F:2

o7F:2

1 Secondary output
2 Event output
3 RUN output
4 RDY output
5 Timer 1 output
6 Timer 1 during-on-delay output
7 Timer 1 during-off-delay output
8 Timer 1 during-[on + off]-delay output
9 Timer 2 output

10 Timer 2 during-on-delay output

11 Timer 2 during-off-delay output

12 Timer 2 during-[on + off]-delay output
13 Timer 3 output
14 Timer 3 during-on-delay output
15 Timer 3 during-off-delay output
16 Timer 3 during-[on + off]-delay output
17 Transmission output (for analog output)
18 Program run end output
