5.5.6 Explanation of the screen display and operation of a program run
■ Switching the run screen
Switching between “constant value run,” in
which no program is used, and “program run,” in
which a program automatically executes a run, is
performed with “SET 21 C/P.”
This section describes “program run mode.”

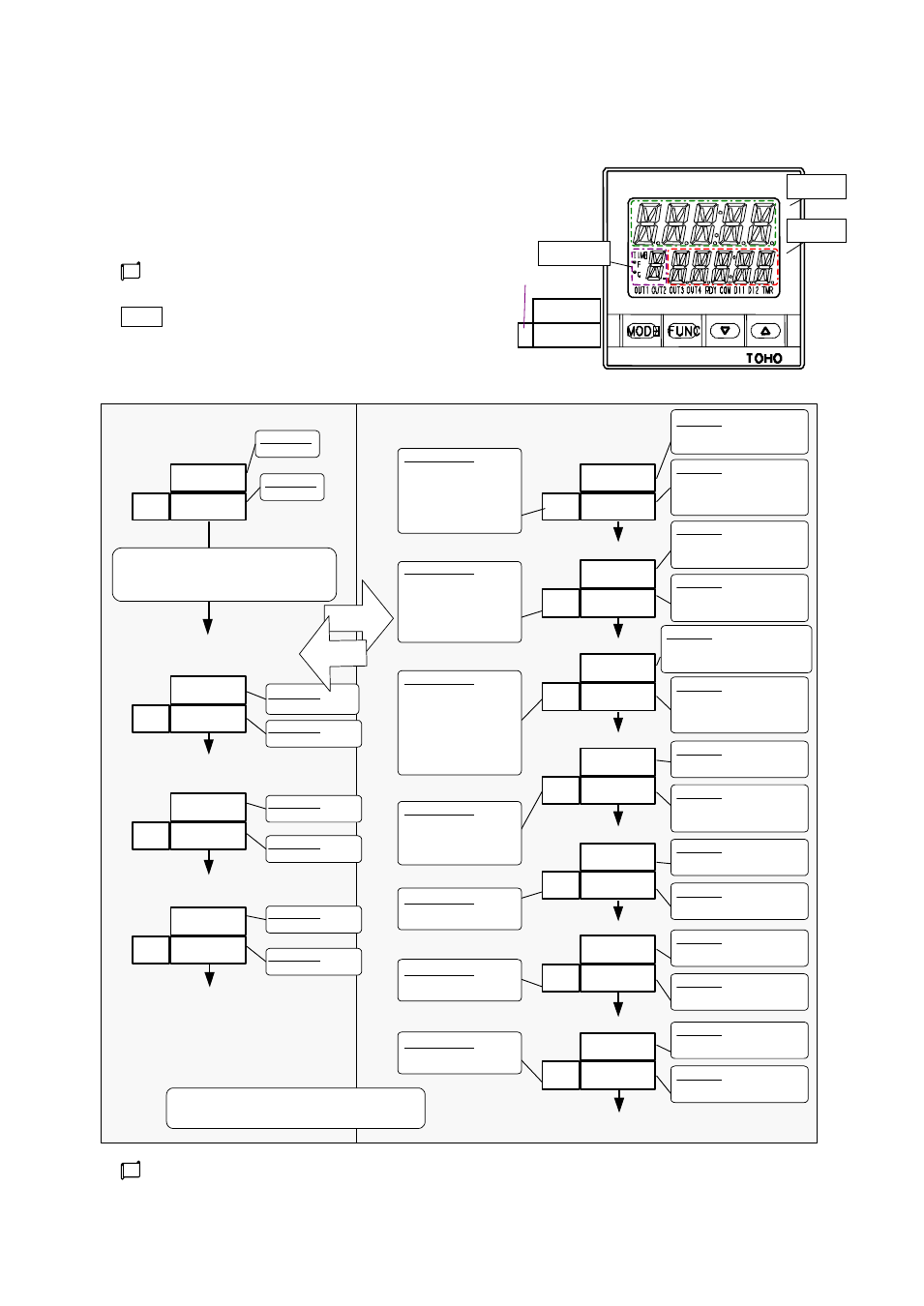

The diagram below shows that the display varies
depending on the difference of run modes.
Note The diagram indicates an example of “TTM-204
operation panel display/operation section.” The
operation method for TTM-205, 207 and 209 is
the same as that for TTM-204.
22
PROG (0
89
89 %0
0 0 30
0 0 29 (0
0 0 00
0 0 30 (1
0 0 00
0 0 30 (2
0 0 00
0 0 30 (3
PROG
STOP 0
22
%0
0 0 00
0 0 30 (1
0 0 00
0 0 30 (2
0 0 00
0 0 30 (3
0
Constant value run mode
PV/SV screen
PV display
PV value
SV display
SV value
MODE key
SET21
C/P=1
SET21
C/P=0
MODE key
Timer 1 monitor
PV display
Timer 1 ON time
SV display
Timer 1 OFF time
MODE key
Timer 2 monitor
PV display
Timer 2 ON time
SV display
Timer 2 OFF time
MODE key
Timer 3 monitor
PV display
Timer 3 ON time
SV display
Timer 3 OFF time
MODE key
Returns to PV/SV screen.
Program run mode
Program run screen
Auxiliary display
Before run: Blank (no
display)
Run in process: Current
step No.
Run end:
“E” displayed
TIME blinks (run).
TIME goes off (stop/end).
MODE key
Step SV screen
Auxiliary display
Before run: Blank (no
display)
Run in process: Current
step No.
Run end:
“E” displayed
 C (no display of analog
time)
Step time monitor
Auxiliary display
Before run: Blank (no
display)
Run in process: Current
step No.
Run end:
“E” displayed
TIME blinks (run in
process)
TIME goes off (stop in
process/run end).
Program run/stop screen
Auxiliary display
Before run: Blank (no
display)
Run in process: Current
step No.
Run end:
“E” displayed
Timer 1 monitor
Auxiliary display
1. Before run; run in
process; run end
Timer 2 monitor
Auxiliary display
2. Before run; run in
process; run end
Timer 3 monitor
Auxiliary display
3. Before run; run in
process; run end
PV display
PV value: Before run; run in
process; run end
SV display
Before run: PRoG (before run)
Run in process: Remaining
time
Run end: ENd
PV display
Before run: PV value
Run in process: PV value
Run end: PV value
SV display
Before run: ----
Run in process: Step SV value
Run end: Final step SV value
PV display
Before run: ----
Run in process: Step setting time
Run end: 00:00
SV display
Before run: --:--
Run in process: Step
remaining time
Run end: 00:00
PV display
PRoG: Before run; run in
process; run end
SV display
Before run: StoP (before run)
Run in process: RUN
Run end: End (after run)
PV display
Timer 1 ON time: Before run;
run in process; run end
SV display
Timer 1 OFF time: Before run;
run in process; run end
Returns to the program run screen.
* The monitor only for a set timer is displayed.
Monitors unused are skipped.
PV display
Timer 2 ON time: Before run;
run in process; run end
SV display
Timer 2 OFF time: Before run;
run in process; run end
PV display
Timer 3 ON time: Before run;
run in process; run end
SV display
Timer 3 OFF time: Before run;
run in process; run end
MODE key
MODE key
MODE key
MODE key
MODE key
MODE key
* The screens for run mode, step SV
value, step time and program run
start/stop are not displayed.
Details of “program run screen” are described in the next page, “Regarding operation and display of a
program run.”
