48-7009-E 5-49
5.5.2 SET 21 program function setting
■ The SET 21 program function setting is for setting operating method of a program run.
Set the setting values for the following: “program run mode,” “power failure compensation range,”
“time unit,” “WAIT range” and “Program run start/stop.”

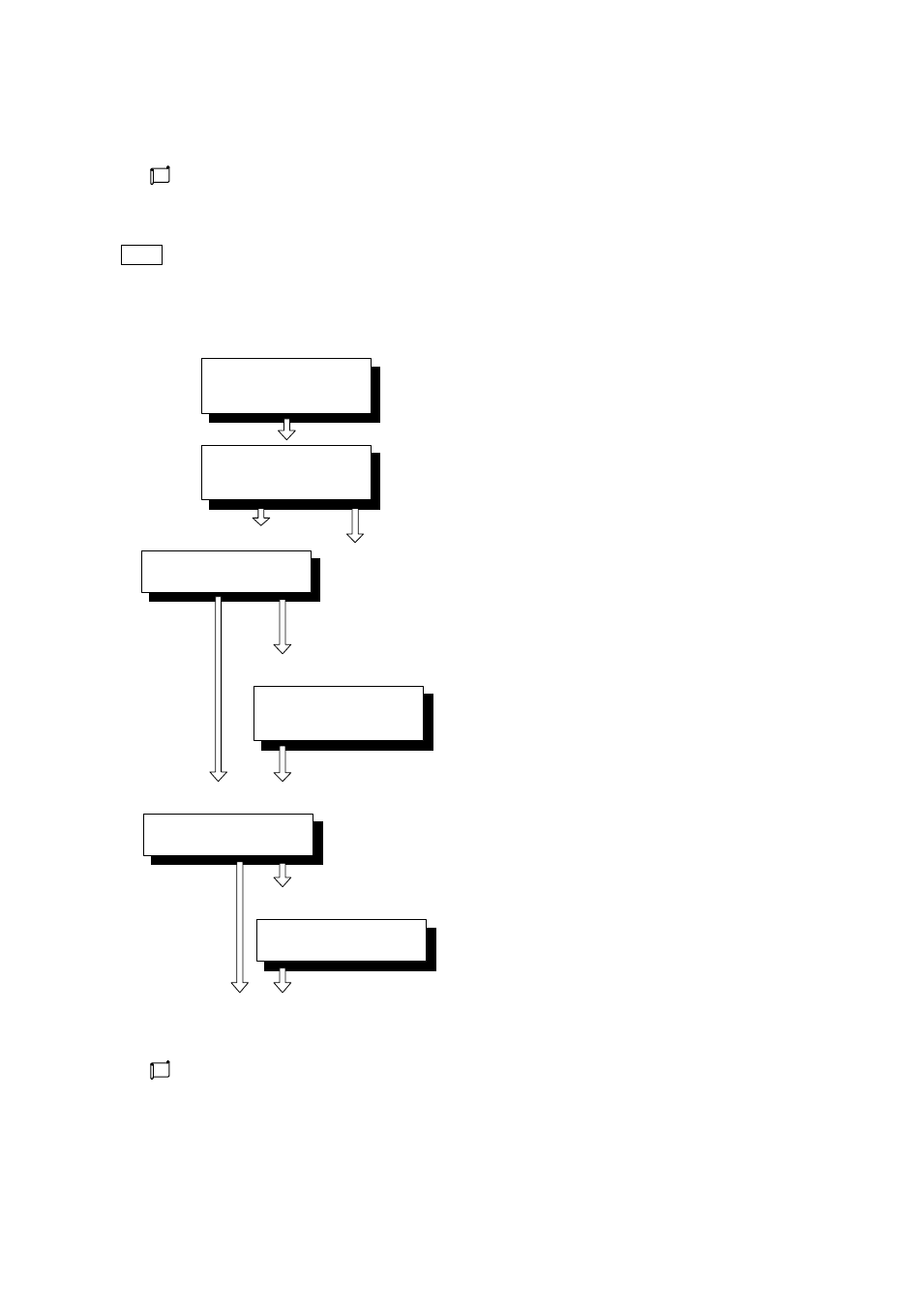

The flowchart below is for “SET 21 program function setting.”
Note Note that some screens do not appear depending on setting values. Characters indicated in
parentheses are those displayed on a screen.
[Setting flow]
SET 21 (PGF)
Setting the program
function setting mode
SET 21 (C/P)
Selecting an operating
type setting
II.
When C/P

1:
Operating type setting *1
I. When C/P  0 (program run OFF)
II. When C/P

1 (program run ON)
SET 21 (PGMd)
Selecting a program mode
I.
When C/P

0:
SET 21 returns to
the beginning.
Power failure compensation range setting *3
Displayed only with presence of power failure
compensation for the program mode setting.
Otherwise, none is displayed.
IV.
When PGMD

2 or 3:
SET 21 (PoC)
Setting the power failure
compensation range
III.
When PGMD

0 or 1:
SET 21 (H/MP)
Selecting time unit
Time unit setting *4
V. When H/MP

0 or 3 (step time)
VI. When H/MP

1, 2, 4 or 5 (soak time)
V.
When H/MP

0 or 3: VI.
When H/MP
 1, 2, 4 or 5
SET 21 (WAIt)
Setting the WAIT range
WAIT width setting *5
Displayed only with the soak time settings for time
unit. None is displayed with step time.
SET 21 returns to the beginning.
Program mode setting *2
III. When PGMd

0 or 1 (program run ON)
IV. When PGMd  2 or 3 (program run ON;
with power failure compensation)
The next page describes the content of each setting value.
