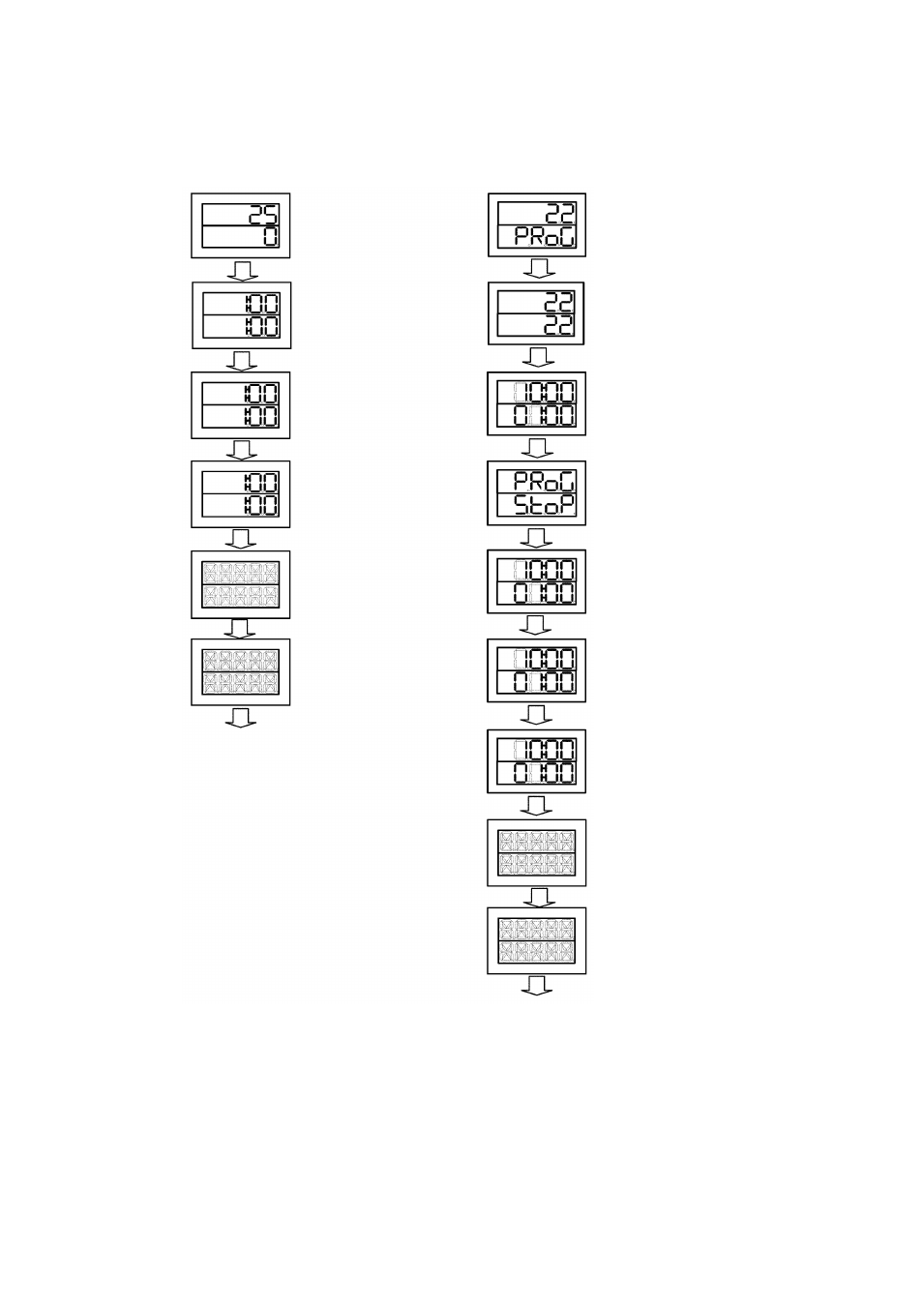

Flow of each setting mode
Constant value run mode
SET21 program mode setting
A (C/P = 0) constant value run mode is established.

1. PV/SV screen

2. Timer 1 monitor

3. Timer 2 monitor

4. Timer 3 monitor

5. Priority screen 1
(The priority screens

from 1 to 16 displayed
in sequence)

20. Priority screen 16

To item 1

Program run mode
SET21 program mode setting
A (C/P = 1) program run mode is established.

To item 1

MODE key

1. Program run screen

2. Step SV value screen

3. Step time monitor

4. Program run start/stop screen

5. Timer 1 monitor

6. Timer 2 monitor

7. Timer 3 monitor

8. Priority screen 1

(The priority screens from 1
to16 displayed in sequence)

23. Priority screen 16

MODE key
