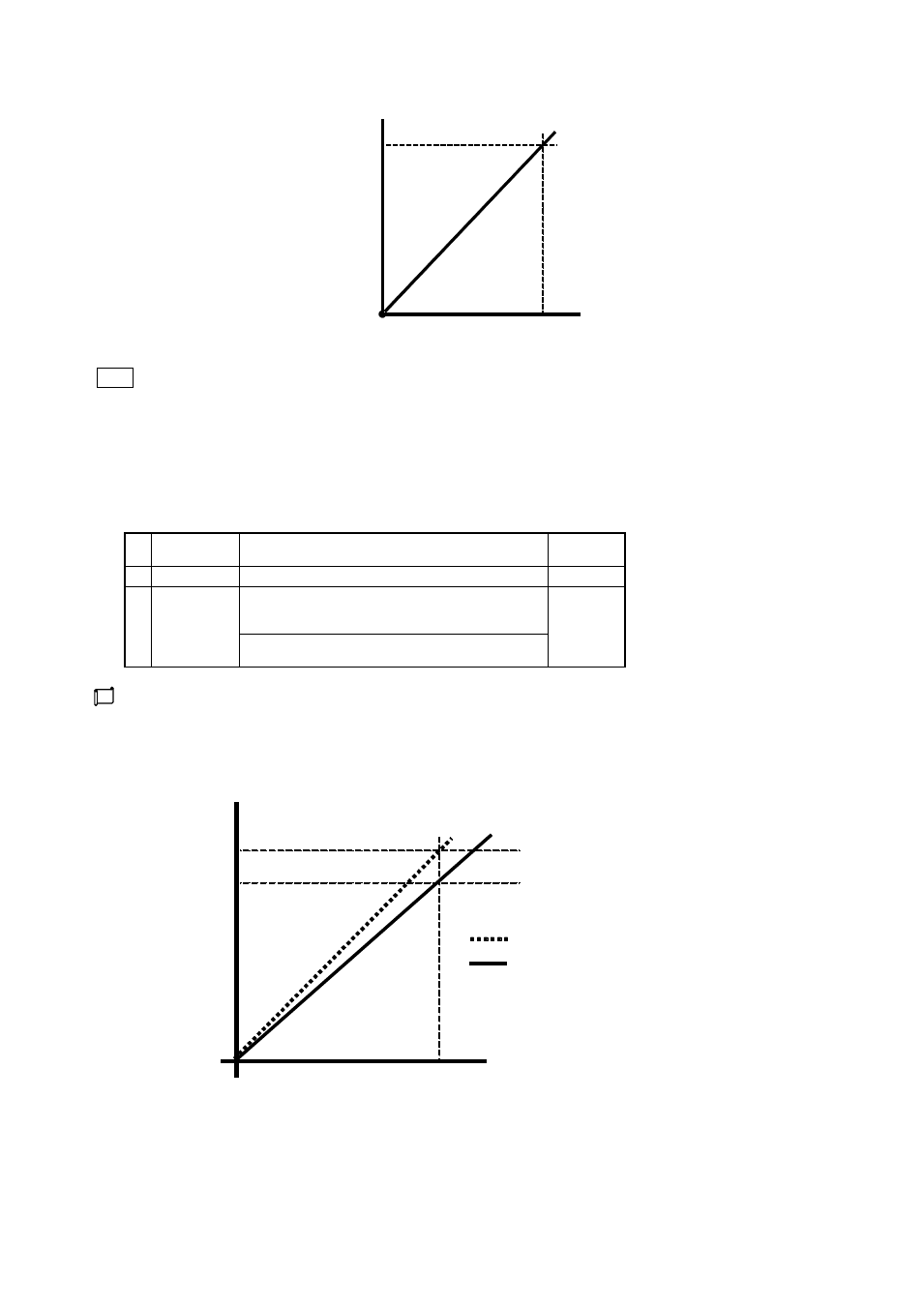

ＰＶ
Remote SV input
4mA 20mA
１００．０％（ＦＳＨ２）
０．０％（ＦＳＬ２）
Note
(1) Display resolution is 20,000 or less.
Take care it when the range from FSL 2 to FSH 2 is set larger than 20,000.
Setting example:
Fluctuation or missing value of PV may be caused when the remote SV input is set to the input type
of 4 - 20 mA, FSL 2 to -19999 digits and FSH 21 to 29999 digits.
(2) Take care that setting values for FSH 2 and FSL 2 can be the same.
■ PV compensation gain/PV compensation zero setting
SEt02
INP2
Setting content Initial value
4 PVG2 0.500 to 2.000 (times) 1.000
5 PVS2
Thermocouple/resistance temperature detector
-999.9 to 999.9 (

C)
-999 to 999 (  C) 0
Voltage/current input
-9999 to 9999 (digit)
PV compensation gain setting: PV (measurement value) for the remote SV input is multiplied by the compensation value.
Setting example: Where PV of the equipment is displayed for 90°C and the actual temperature is 100°C, and the display is
to be compensated to 100°C, using the PV compensation gain setting.
The display after PV compensation is about 100°C = 90°C (before PV compensation) × 1.111.
ＰＶ
PVG 2 = 100/90 = 1.111 times
１００
９０
After PV compensation
Before PV compensation
０ １００ Actual temperature
