TOHO ELECTRONICS TTM200 - Manual (Page 49)

48-7009-E 4-8

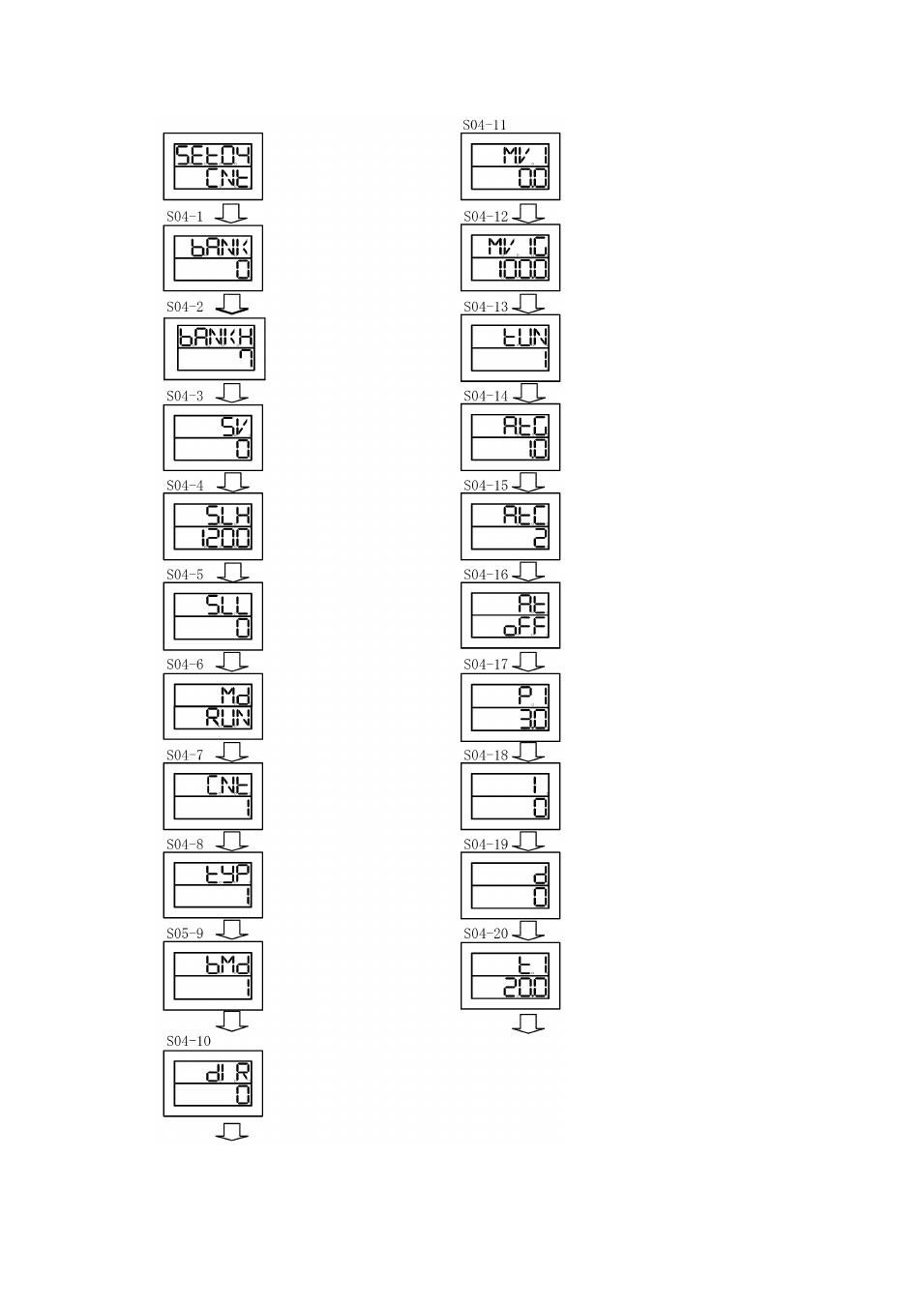

SET 4: Control setting mode
0. Setting item selection
screen
1. Bank setting
3. Control setting
4. SV limiter upper limit
setting
5. SV limiter lower limit
setting
6. Control mode setting
7. Control type setting
8. PID control type
setting
9. Type B mode setting
10. Forward/reverse
operation setting
To S04-11
To S04-21
11. Primary control
operating amount
12. Primary control
output gain setting
13. Tuning type setting
14. AT coefficient setting
15. AT sensitivity setting
16. AT start screen
17. Proportional band
setting
18. Integral time setting
19. Derivative time setting
20. Primary control proportional
cycle
Initial value Relay: 20 seconds
SSR: 2 seconds
Continued to the next page
2. Bank upper limit
setting
MODE key MODE key
MODE key MODE key
MODE key MODE key
MODE key MODE key
MODE key MODE key
MODE key MODE key
MODE key MODE key
MODE key MODE key
MODE key MODE key
MODE key MODE key
MODE key
