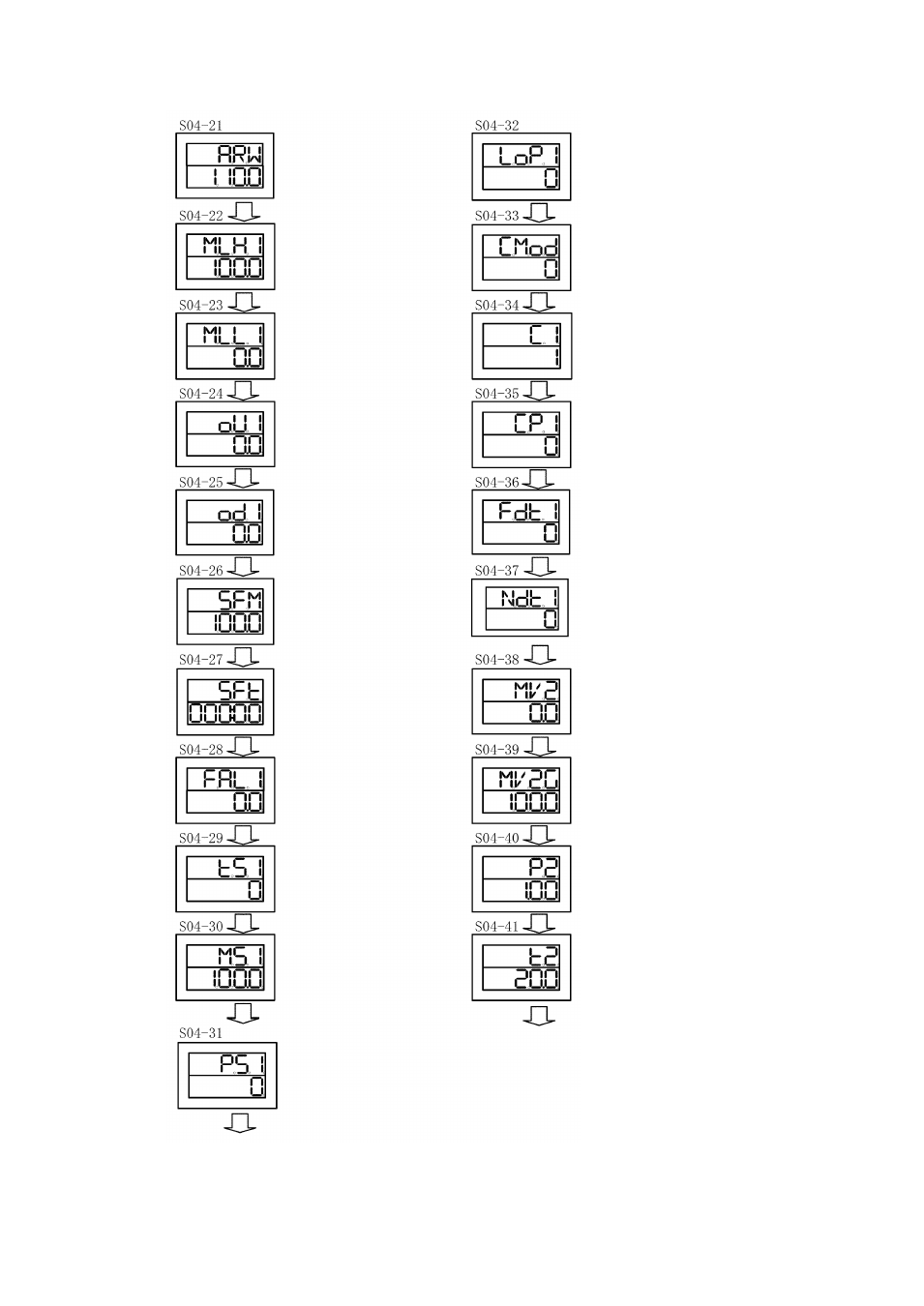

21. Anti-reset windup
22. Setting of primary
control operation
amount limiter upper
23. Setting of primary
control operation amount
limiter lower limit
24. Setting of primary control
operation amount change
rate limiter ascending
25. Setting of primary control
operation amount change
rate limiter descending
26. Setting of primary
controller soft start
output
27. Setting of primary
controller soft start
time
28. Setting of primary
control operation
amount at fault
29. Setting of primary
control loop anomaly
PV threshold
31. Setting of primary
control loop anomaly PV
threshold
30. Setting of primary
control operation amount
at fault and control
amount threshold
32. Setting of primary
control loop fault time
33. Setting of primary
control OFF point
position selection
34. Setting of primary control
sensitivity
35. Setting of primary control
OFF point position
36. Primary control safeguard
off timer
(0 to 99 minutes)
37. Primary control
safeguard on timer
(0 to 99 minutes)
38. Secondary control
operation amount
39. Setting of secondary
control output gain
40. Setting of secondary
control proportional band
(0.10 to 10.00 times)
41. Setting of secondary control
proportional interval
To S04-32
MODE key
To S04-42
MODE key
MODE key MODE key
MODE key MODE key
MODE key MODE key
MODE key MODE key
MODE key MODE key
MODE key MODE key
MODE key MODE key
MODE key MODE key
MODE key
MODE key
MODE key
Continued to the next page
