TOHO ELECTRONICS INC.

MANUAL

BOARD TYPE DIGITAL CONTROLLER

SERIES INSTRUCTION

TTM-10L

Thank you for purchasing model TTM-10L series Digital Process Controller.
Please go through this Instruction Manual carefully and use the unit in proper manner.

NOTICE/WARNING BEFORE USAGE

1.

・When having the controller in hand,please confirm the correct model and optional function for

your purchase. Please refer to ”8. ORDERING INFORMATION” for details of model.

・The following symbol marks are used in this Instruction Manual for handling this model safely.

In case of mishandling, serious dangers may occur to the

WARNING

operator such as death, electrocution and a skin burn.

In case of mishandling, it may cause some damages to the

CAUTION

unit or the operator getting slight injury.

CAUTION

WARNING

・Do not push the keys by sharp points ・Make sure the correct wiring connection before turning on electricity.

for prevention of its malfunction.

Mis-wiring may cause malfunction of the unit and may cause a fire.

・Never remodel the unit to prevent malfunction of unit and fire.

PARTS INDICATION

2.

2.1

OPERATION KEYS

a) SW1:MODE key.・・・・・Change Each Mode/Parameter.
b) SW2:Up key ・・・・・・Up Setting Value or Change setting.
c) SW3:Down key ・・・・・Down Setting Value or Change setting.

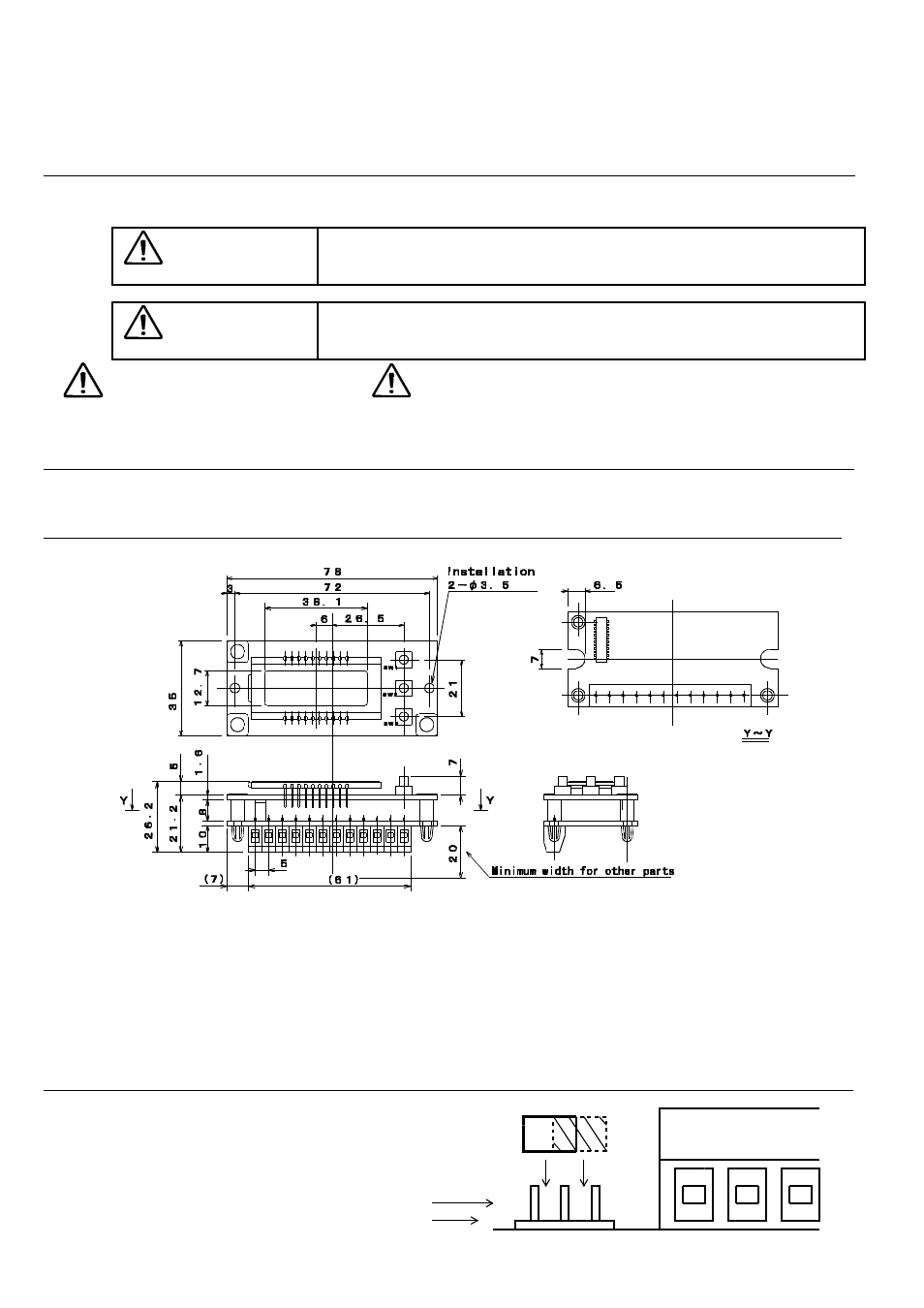

OUTER DIMENSIONS

3.

3.1

OUTER DIMENSIONS

3.2

LOCATION OF THE UNIT SETTING

Install the unit at the following proper locations:-

a)Away from the gas of sulfide and corrosion.

h)Less dust and oily smoke.

b)Less mechanical vibration and shock.

i)Away from the direct dampness or the flood with water.

c)Temperature and Humidity being within the limit of operation environment.
d)Away from the direct sunshine and not to be exposed by wind and rain.
e)Far away from the equipments using high-voltage ignition devices.
f)Away from the influence of electromagnetic field.
g)Away from High-Voltage wire, welding machine and the generator of electric noise.

WIRING METHOD

4.

4.1

Socket

CHANGE OF POWER SUPPLY.

w ith the

Terminal Blocks

The change of Power supply is available to select
following plugs a,b and c.

←1PIN

① :Short circuit socket fixed to a and b.:12VDC

② :Short circuit socket fixed to b and c.:24VDC

Plug

a

b

c

Board
