CLS200 Series User’s Guide Chapter 3: Using the CLS200
Doc.# 0600-3050-2000 Watlow Anafaze 57
Single Loop Display
The single loop display shows detailed information for one
loop at a time.

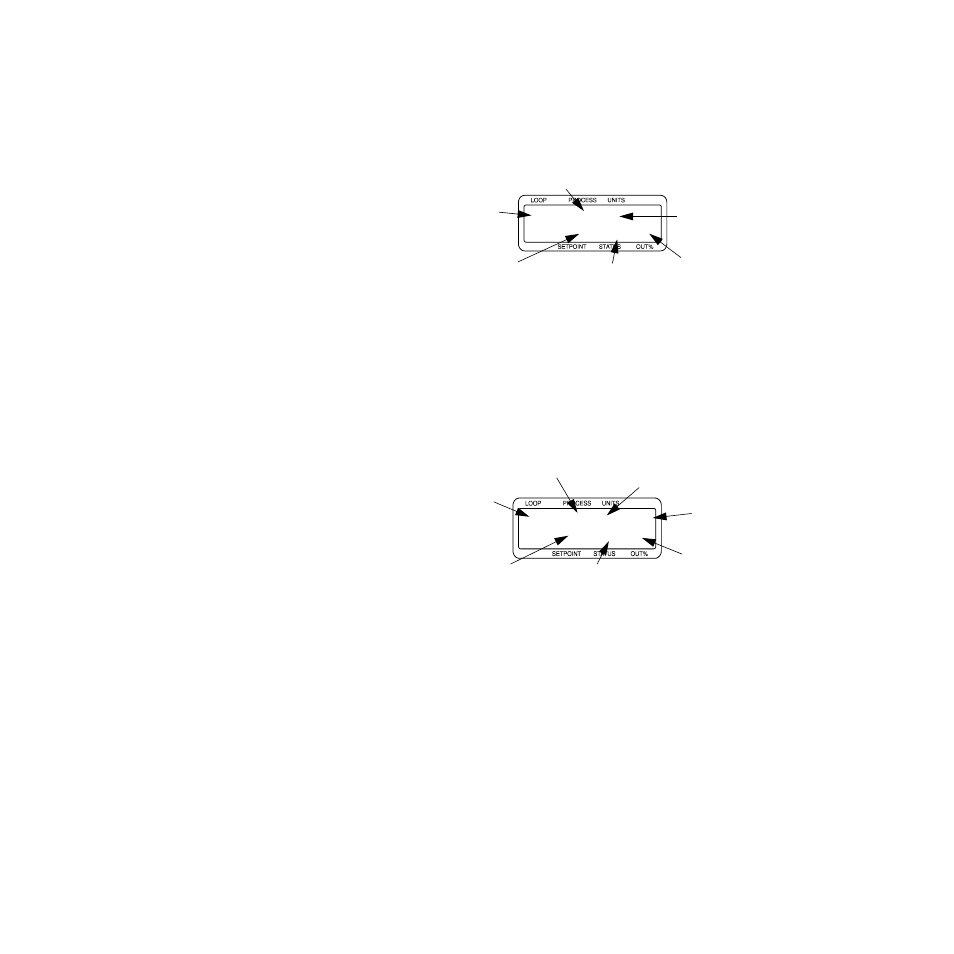

Figure 3.4 Single Loop Display
The control status indicator shows MAN, AUTO or TUNE
modes.
If both control outputs for a loop are enabled and the loop
is in automatic control, then the single loop display shows
HEAT or COOL as the control status:
Figure 3.5 Single Loop Display, Heat and Cool
Outputs Enabled
Navigating the Single Loop Display
In the single loop display:
• Press YES to go to the next loop.
• Press NO to go to the previous loop.
• Press BACK once to go to the job display (if enabled) or
bar graph display.
• Press
ENTER twice to start the single loop scanning dis-
play. The single loop scanning display shows informa-
tion for each loop in sequence. Data for each loop
displays for one second.
• Press any key to stop scanning.
ALARM
Engineering
Units
Output
Percentage Control Status Setpoint
Loop Number
or Name
Process Variable
02 160˚F
180AUTO100
ALARM
Control Status
Heat Output
Cool Output
Engineering Units
Process Variable
Setpoint
Loop Number
or Name
Percentage
Percentage
02 160˚F 0
180HEAT100
