CLS200 Series User’s Guide Chapter 7: Ramp/Soak
Doc.# 0600-3050-2000 Watlow Anafaze 145

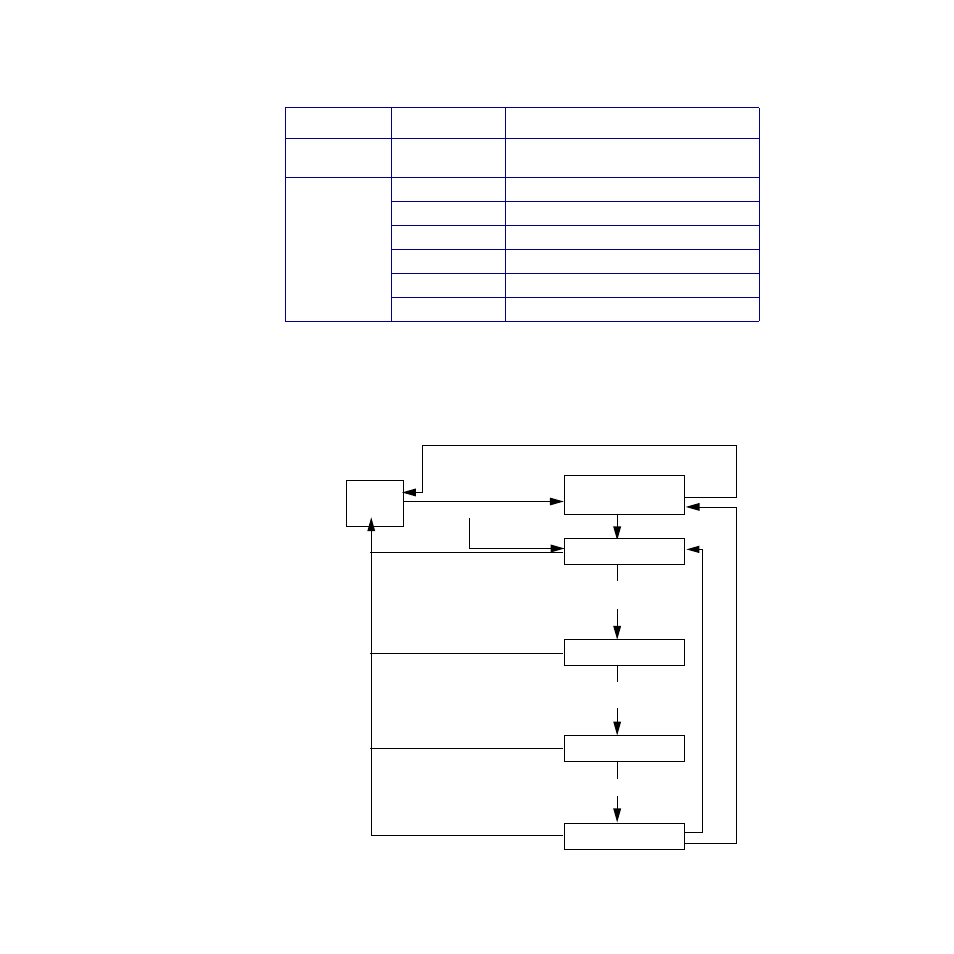

Table 7.3 Display Formats
Using Ramp/Soak
This section explains how to assign a profile to a loop, how
to put a profile in RUN or HOLD mode, how to reset a profile,
and how to display profile statistics. Figure 7.4 shows the
ramp/soak screens:
Figure 7.4 Ramp/Soak Screens
Input Type Display Format Effect on Parameter
Thermocouples
and RTDs
N/A No decimal shift
Linear
-999 to 3000 No decimal shift
-9999 to 30000 Setting multiplied by 10
-999.9 to 3000.0 No decimal shift; additional tenth in display
-99.99 to 300.00 Settings divided by 10
-9.999 to 30.000 Settings divided by 100
-0.9999 to 3.0000 Settings divided by 1,000
ASSIGN R/S
TIME REMAINING
CYCLE NUMBER
SET MODE
RESET
RAMP/
SOAK
RAMP/
SOAK
NO
RAMP/
SOAK
No
Profile
Assigned Single
Loop
Display
BACK
BACK
BACK
Profile
Assigned
BACK
BAC
K
YES ENTER
PROFILE
NO
