Chapter 3: Using the CLS200 CLS200 Series User’s Guide
52 Watlow Anafaze Doc.# 0600-3050-2000
Front Panel
The CLS200 front panel provides a convenient interface
with the controller. You can use the front panel keys to pro-
gram and operate the CLS200.

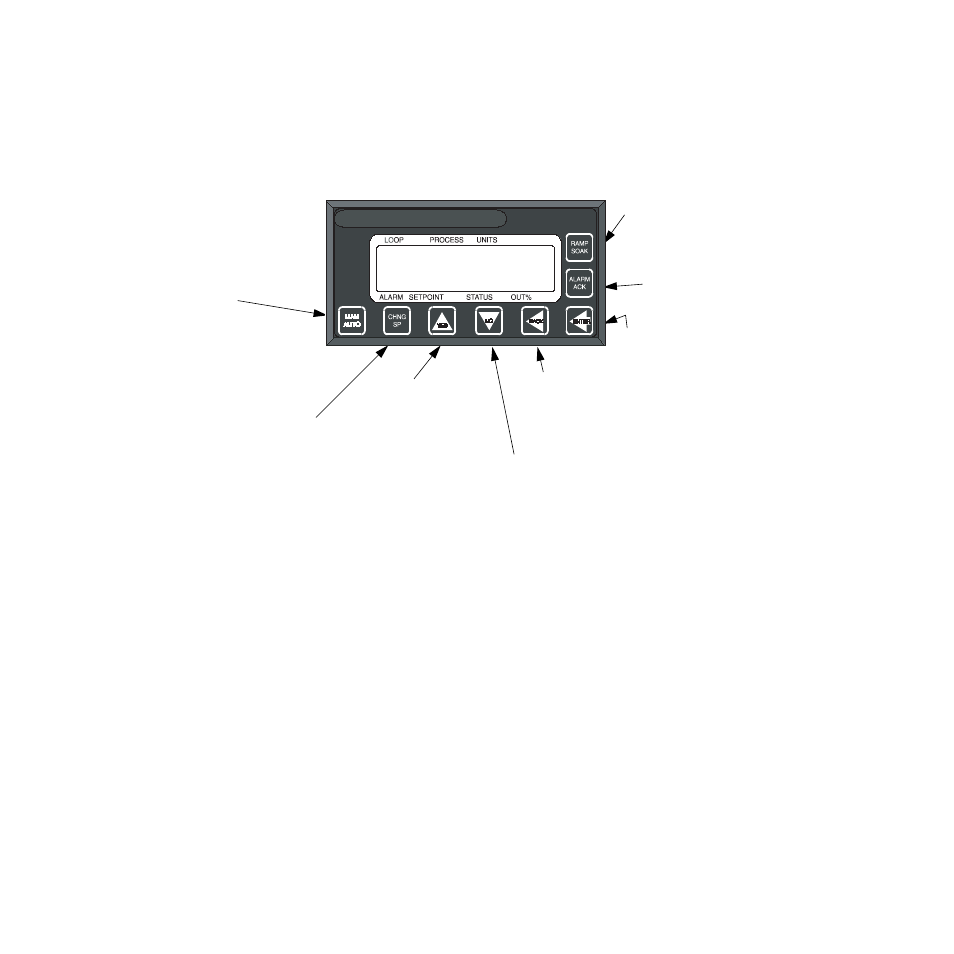

Figure 3.2 CLS200 Front Panel
RAMP
ALARM
ENTER
BACK
NO
YES
CHNG
MAN
AUTO
SP
SOAK
ACK
WATLOW ANAFAZE CLS200
• Changes loop output
control from automatic
to manual or tune
• Assigns output power
level of manual loops
• Changes process
setpoint
• Selects a menu
or parameter
• Answers YES to
YES/NO prompts
• Increases a
value or choice
• Cancels editing
and returns to a
previous menu
• Skips a menu or parameter
• Answers NO to YES/NO
prompts
• Decreases a value or choice
• Assigns and
monitors profile
• Acknowledges
alarms
• Stores data or settings
and advances to the next
parameter
• Starts scanning mode
(if pressed twice)
