CLS200 Series User’s Guide Chapter 7: Ramp/Soak
Doc.# 0600-3050-2000 Watlow Anafaze 149
READY segment (segment 0). Use the SET MODE parameter
to start a profile (put it in RUN mode).
Starting a Profile
You can start a profile only when it is in the READY seg-
ment.
1. In the single loop display, switch to the loop you want
to start.
2. Press the RAMP/SOAK key three times. The SET
MODE parameter appears.
3. Press YES and ENTER to start the profile. While the
profile is in START mode, the only mode available is
the RUN mode.
Running Several Profiles Simultaneously
To run several profiles simultaneously, follow these steps:
1. Set up the profiles so that segment 1 of each profile
has the same latched trigger.
2. Assign the profiles to the appropriate loops. The loops
will go to the READY segment of each profile.
3. Set each profile to RUN mode.
4. Trip the trigger.
Editing a Profile While It Is Running
You can edit a profile while it is running. Changes made to
segments after the current segment will take effect when
the segment is reached. Changes made to the segments
that have already been completed will take effect the next
time the profile is run. Do not edit the current segment.
Changes to the current segment can have unexpected con-
sequences.

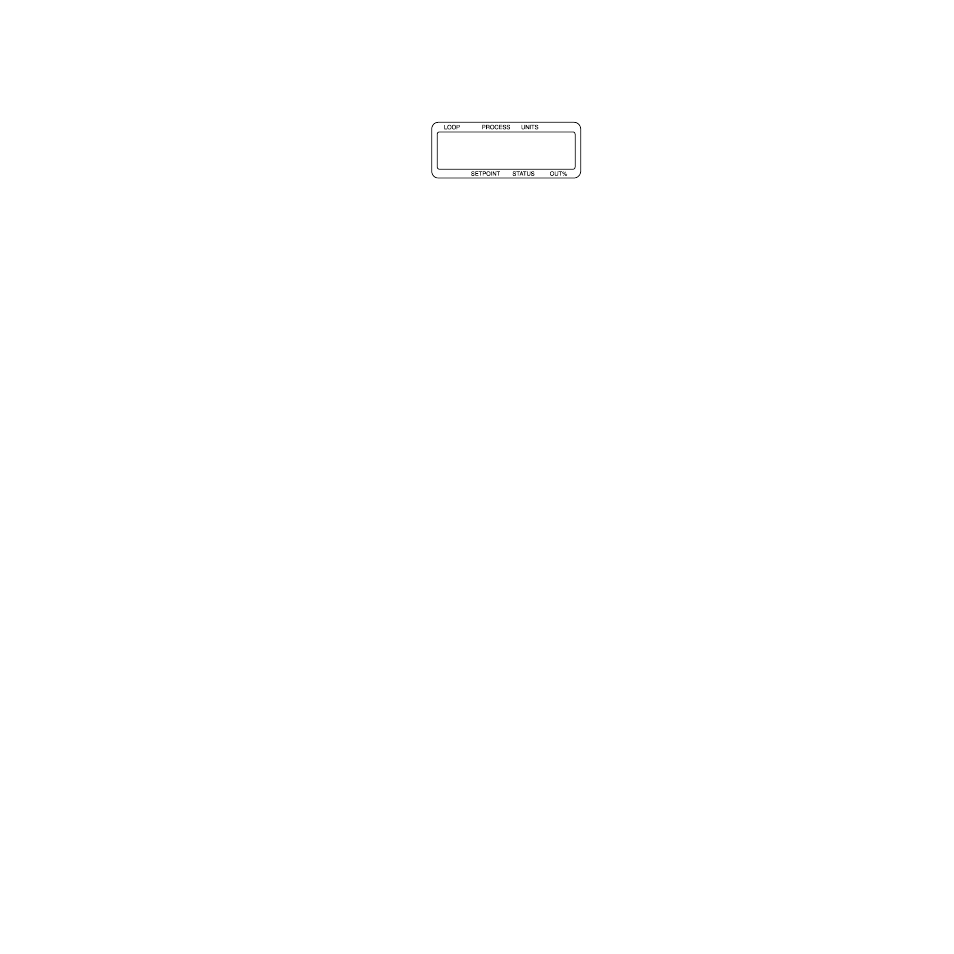

ALARM
01 A SEG01/05 R
SET MODE? RUN
