5. If necessary, remove the two mounting screws holding
the loosened end plate in place.
6. Slide the board out of the housing.
7. Set the jumpers for the two outputs as desired. See
Table 9.16.
8. Replace the board such that the connectors extend
through the opposite end plate. The board fits in the
third slot from the bottom.
9. Reconnect the two terminal blocks to the DAC1 and
DAC2 connectors.
10. Replace the end plate, end plate screws and, if neces-
sary, mounting screws.
11. Check the wire connections to the DAC1 and DAC2
terminal blocks.
12. If necessary, change the wiring connections to the cor-
rect configuration for the new output type. See Wiring
the Dual DAC on page 43.
13. Restore system power.
Configuring Serial DAC Outputs
The Serial DAC’s voltage and current output is jumper se-
lectable. Refer to Figure 9.9. Configure the jumpers as in-
dicated on the Serial DAC label.

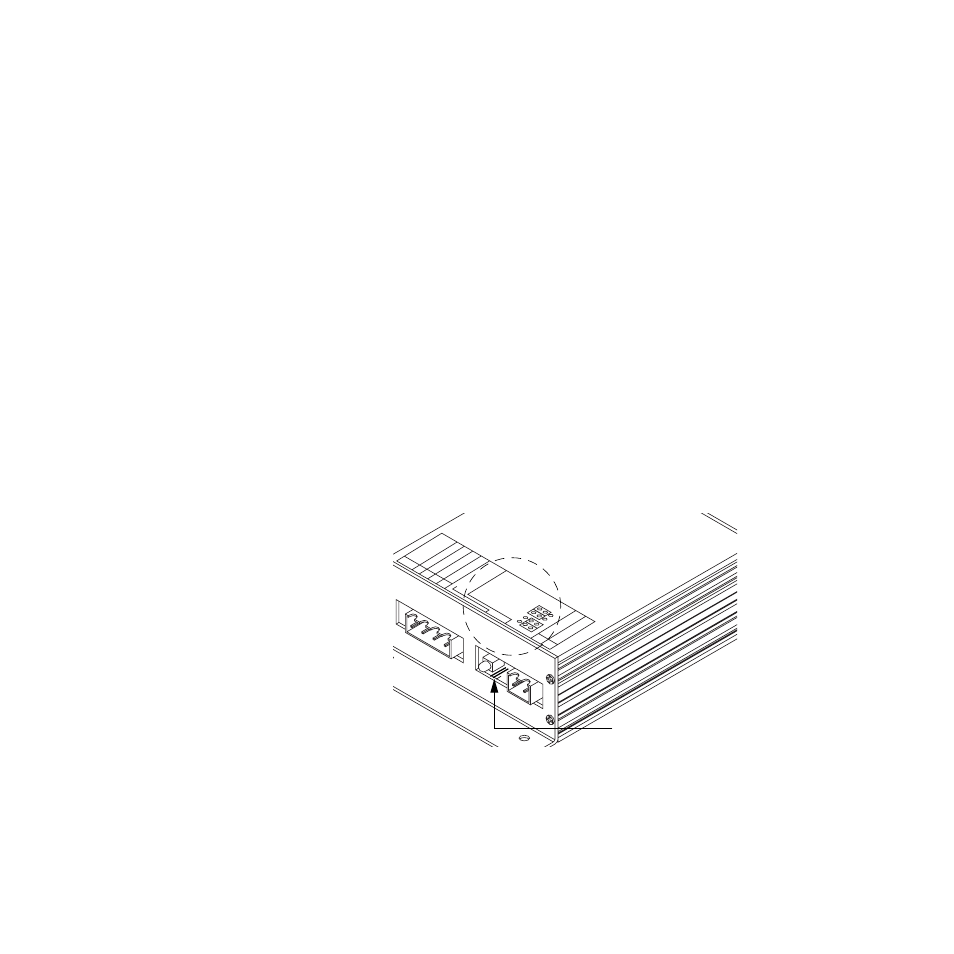

Figure 9.9 Serial DAC Voltage/Current Jump-
er Positions
+5V IN
COM IN
CLK IN
DATA
IN
FLASHING
=R
UNNING
+ O
UT
- OU
T
PIN
: 1
2
3 4
5 6
OUTPUT SELECT
CURRENT
VO
LTA
GE
{
{
FA
ZE
SERIAL D
AC
Jumper
