CLS200 Series User’s Guide Chapter 11: Specifications
Doc.# 0600-3050-2000 Watlow Anafaze 195
Table 11.4 Processor with Straight SCSI

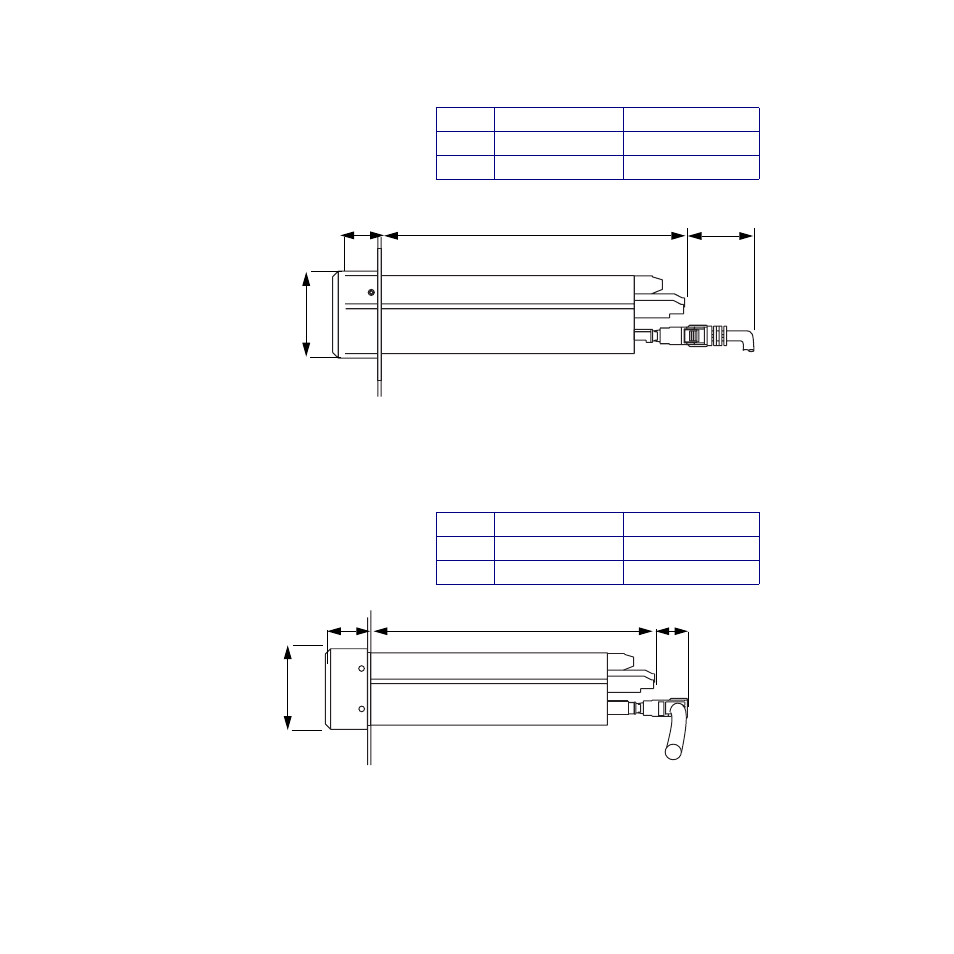

Figure 11.2 CLS200 Clearances with
Straight SCSI Cable
Table 11.5 Processor with Right Angle SCSI
Figure 11.3 CLS200 Clearances with
Right-Angle SCSI Cable
Length 9.6 inches 244 mm
Width 3.78 inches 96 mm
Height 1.96 inches 50 mm
Length 8.6 inches 218 mm
Width 3.78 inches 96 mm
Height 1.96 inches 50 mm
1.0 in. 7.0 in. 1.6 in.
(25 mm) (178 mm) (41 mm)
1.96 in.
(50 mm)
1.0 in. 7.0 in. 0.60 in.
(25 mm)
(178 mm) (15 mm)
1.96 in.
(50 mm)
