CLS200 Series User’s Guide Chapter 4: Setup
Doc.# 0600-3050-2000 Watlow Anafaze 87

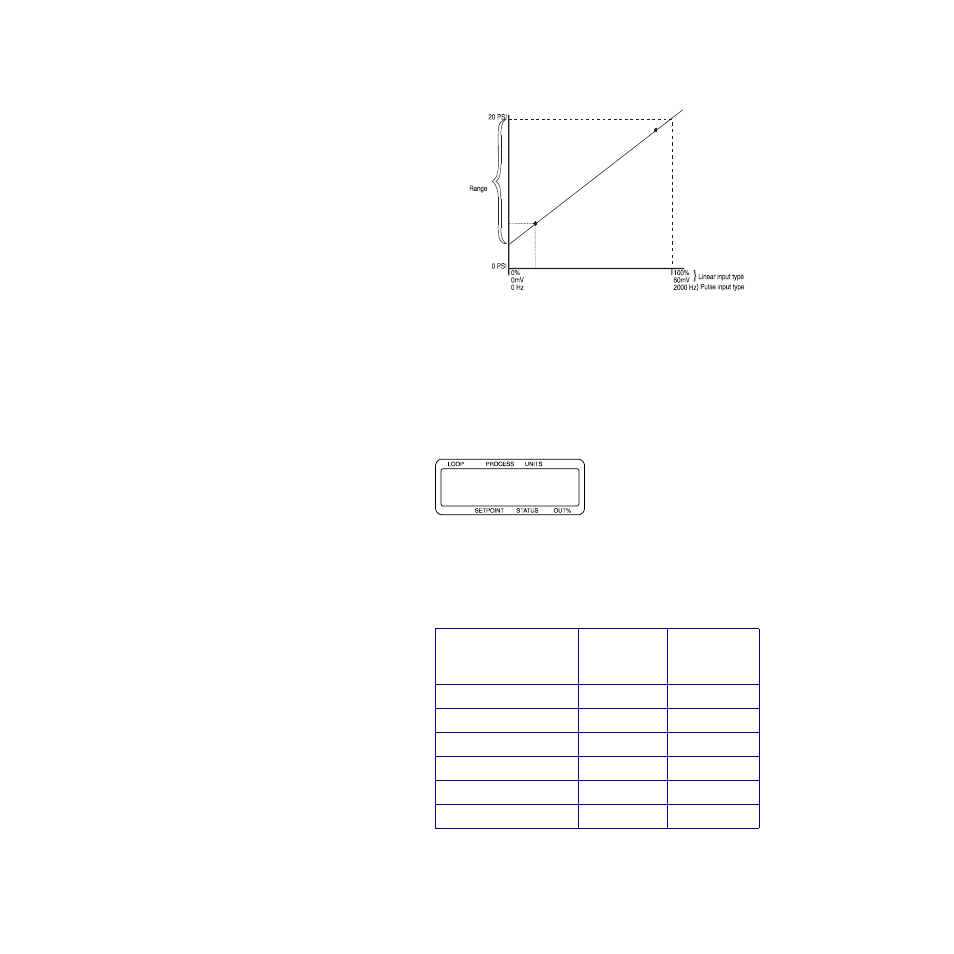

Figure 4.3 Process Variable Limited by Input
Reading Range
Display Format
Select a display format for a linear or pulse input. Choose
a format appropriate for the input range and sensor accu-
racy.
Selectable values: The controller has several available
display formats, as shown in Table 4.9. The table also
shows the maximum and minimum process variable for
each display format.
Table 4.9 Display Formats
Display Format
Maximum
Process
Variable
Minimum
Process
Variable
-9999 TO +30000
30,000 -9,999
-999 TO +3000 3,000 -999
-999.9 TO +3000.0 3,000.0 -999.9
-99.99 TO +300.00 300.00 -99.99
-9.999 TO +30.000 30.000 -9.999
-.9999 TO +3.0000 3.0000 -0.9999
High Process
Variabale
Process Variable
Low Process
Variabale
Low
Reading
High
Reading Input Reading
ALARM
01 DISP FORMAT ?
-999 TO 3000
