CLS200 Series User’s Guide Chapter 11: Specifications
Doc.# 0600-3050-2000 Watlow Anafaze 197

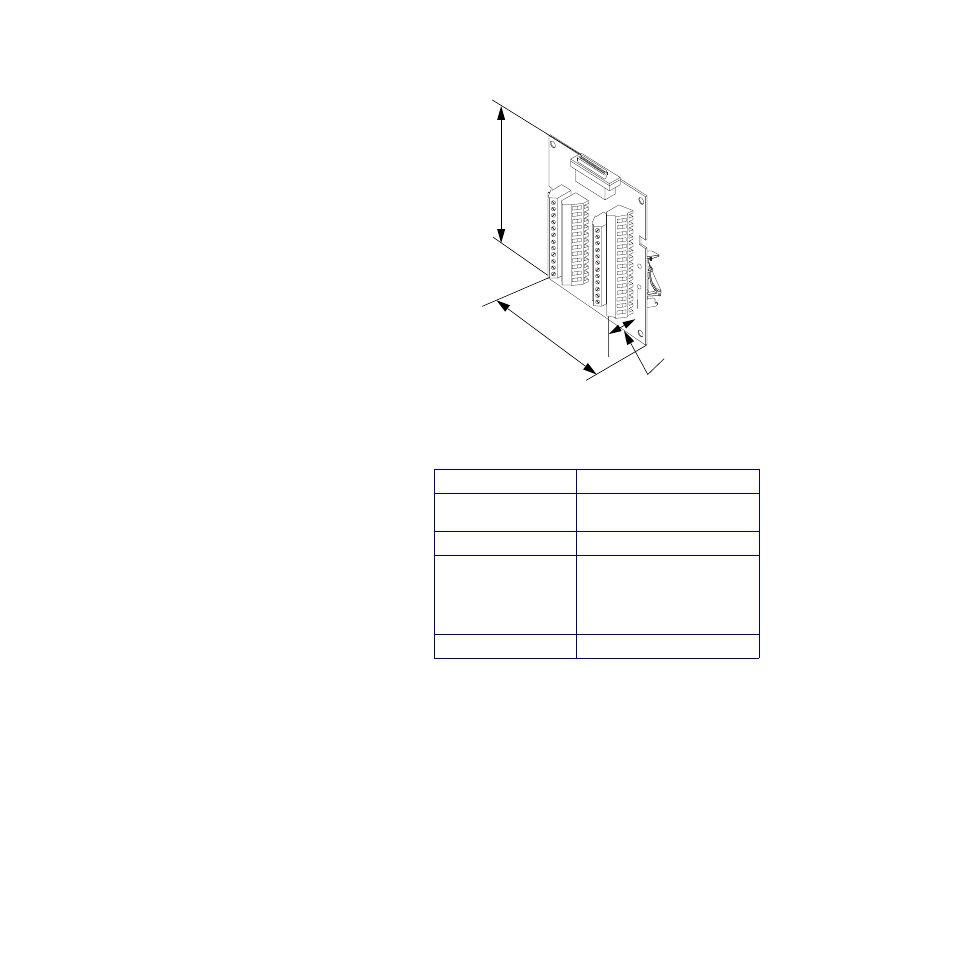

Figure 11.4 TB50 Dimensions
Table 11.8 TB50 Connections
Screw Terminal Torque 4.4 to 5.3 in-lb. (0.5 to 0.6 Nm)
SCSI Connector on
Board
SCSI-2 female
Output Terminals Captive screw cage clamp
Output Wire Gauge
Multiconductor cables: 24 AWG
(0.2 mm
2 )
Single-wire: 22 to 18 AWG
(0.5 to 0.75 mm
2 )
Output Terminal Torque 4.4 to 5.3 in-lb. (0.5 to 0.6 Nm)
(37 mm)
4.1 in.
(104 mm)
4.0 in.
(102 mm)
1.5 in.
