CLS200 Series User’s Guide Chapter 2: Installation
Doc.# 0600-3050-2000 Watlow Anafaze 27
CAUTION! To prevent damage from incorrect connec-
tions, do not turn on the ac power before test-
ing the connections as explained in Testing
Your System on page 28.
NOTE! Do not connect the controller’s dc common
(COM) to earth ground
. Doing so will de-
feat the noise protection circuitry, making
measurements less stable.

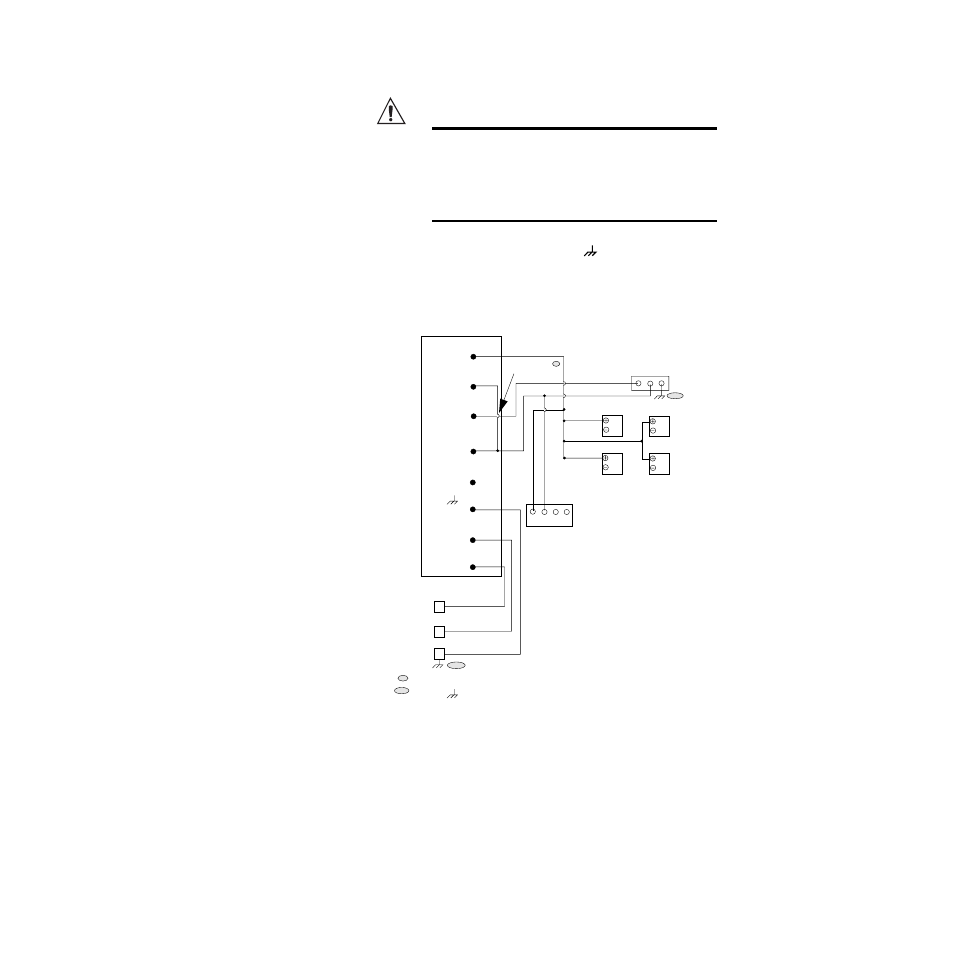

Figure 2.14 Power Connections with the
CLS200 Power Supply
Connecting TB50 to CLS200
1. Connect the SCSI cable to the controller.
2. Connect the SCSI cable to the TB50.
** Connect terminals to ac panel ground.
SSR
SSR SSR
SSR
G
N
D
Add jumper *
C
O
M
+
5
Serial DAC
CLS200
Power Supply
1 2 3 4
white
black
green
G
H
N
120/240
Supply
**
**
* If using 5VÎ (dc) for outputs, jumper 5V common to 15V common.
C
O
M
V
+
Vı (ac)
+V1 (5V)
0 (5V COM)
+V2 (+15V)
COM (15V COM)
-V2 (-15V)
ACL (AC Line)
ACN (AC Neutral)
(Ground)
