DIN Rail Mounting
Snap the TB50 on to the DIN rail by placing the hook side
on the rail first, then pushing the snap latch side in place.
(See Figure 2.7.)

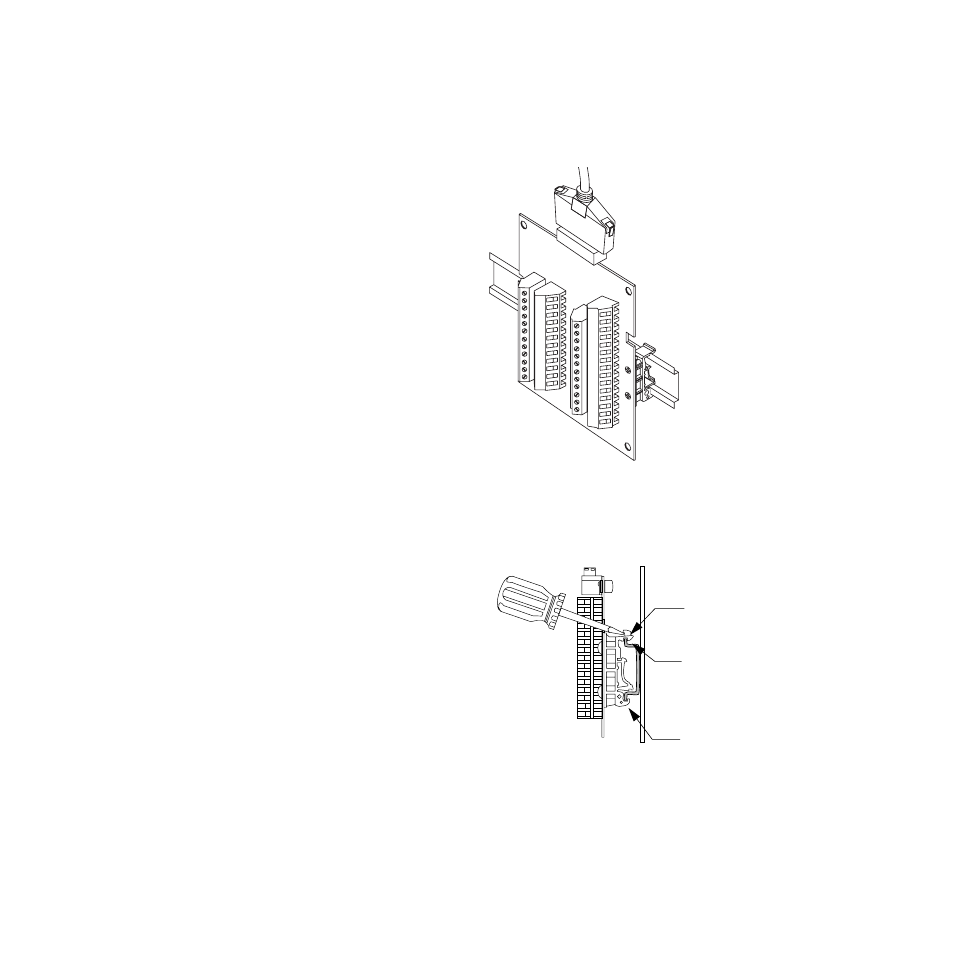

Figure 2.7 TB50 Mounted on a DIN Rail (Front)
To remove the TB50 from the rail, use a flathead screwdriv-
er to unsnap the bracket from the rail. (See Figure 2.8.)
Figure 2.8 TB50 Mounted on DIN Rail (Side)
Removal
catch for
screwdriver
DIN Rail
snap latch
Hook side
