Keypad Test
Test the keypad. The test begins automatically when the
screen appears.
• Press any key to test the keypad. The controller will
display the name of the key you have pressed.
• Press NO twice to end the test and return to the top of
the MANUAL I/O TEST menu.
Display Test
Use this function to test the display.
Press YES to enter the test and display the instruction
screen.
Press YES to begin the display of a discernable pixel pat-
tern.
• Press YES to toggle the pixel pattern.
• Press NO to end the test and return to the top of
the MANUAL I/O TEST menu.

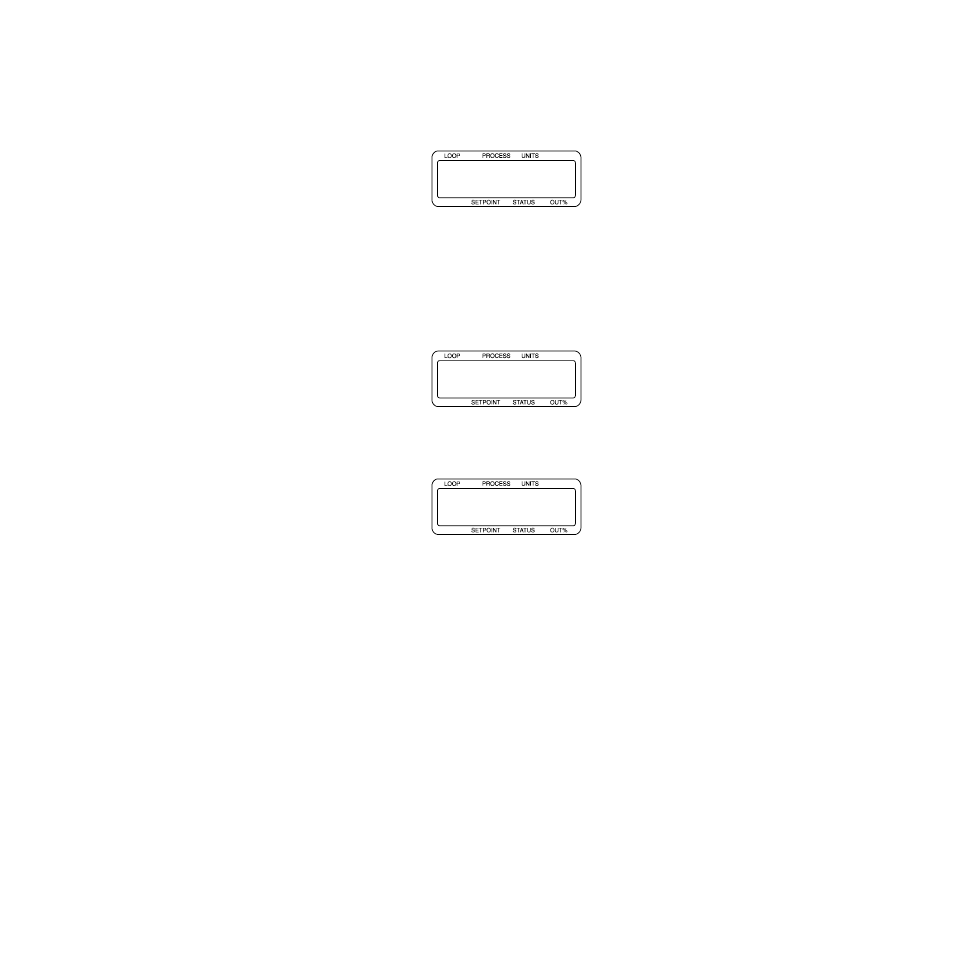

ALARM
KEYPAD TEST
QUIT = "NO"+"NO"
ALARM
DISPLAY TEST?
ALARM
TO TEST DISPLAY
Y-TOGGLE N-QUIT
