Setup Loop Outputs Menu
Use the SETUP LOOP OUTPUTS menu to:
• Enable or disable outputs
• Set output type
• Set cycle time for time proportioning outputs
• Enter Serial DAC parameters (for Serial DAC out-
puts)
• Select control action
• Set output level limit and limit time
• Select sensor fail output (output override)
• Select a nonlinear output curve
Table 4.11 shows the parameters available in the SETUP
LOOP OUTPUTS menu. Both heat and cool outputs have the
same parameters; only one of each parameter is shown.

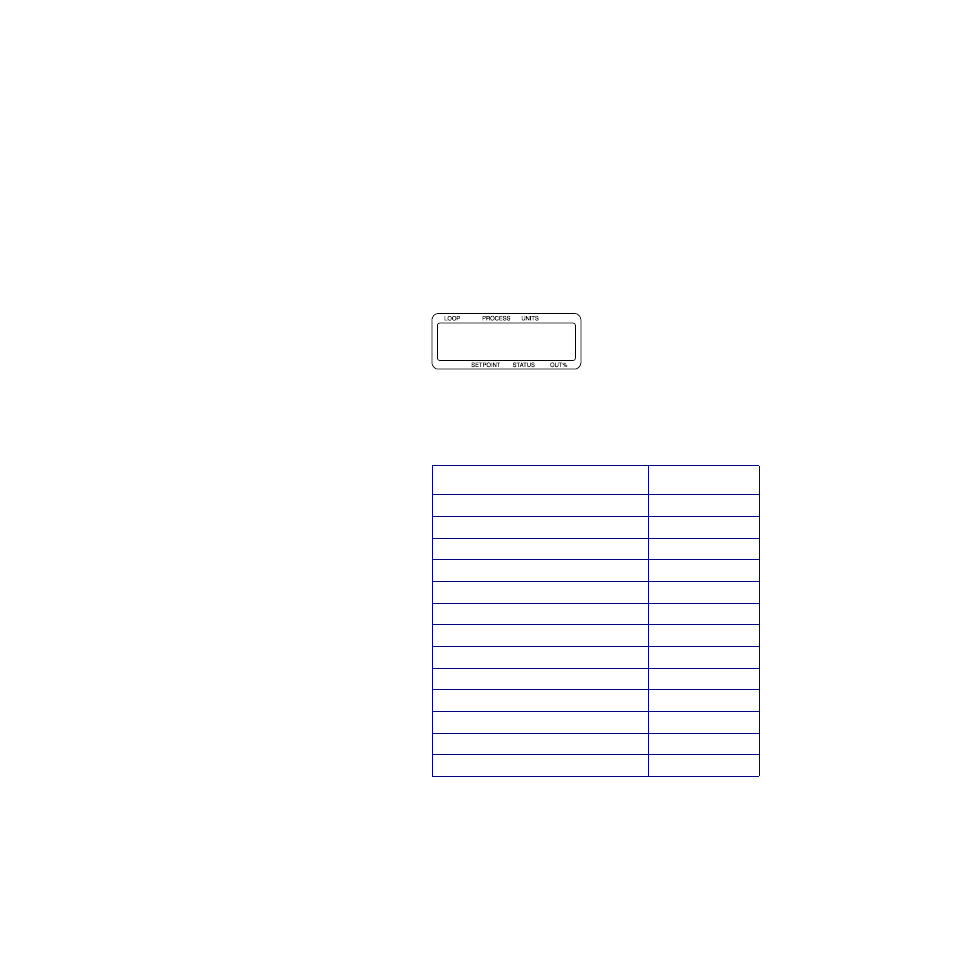

Table 4.11 Setup Loop Outputs
* The SDAC parameters are available only if you select SDAC as
the output type. Use these parameters to configure the Serial
DAC signal output.
Parameter Default Value
HEAT CONTROL OUTPUT? ENABLED
HEAT OUTPUT TYPE? TP
HEAT OUTPUT CYCLE TIME? 10S
SDAC MODE? * VOLTAGE
SDAC LO VALUE?
*
0.00 VDC
SDAC HI VALUE? * 10.00 VDC
HEAT OUTPUT ACTION? REVERSE
HEAT OUTPUT LIMIT? 100%
HEAT OUTPUT LIMIT TIME? CONT
SENSOR FAIL HT OUTPUT? 0%
HEAT T/C BRK OUT AVG? OFF
HEAT OUTPUT? LINEAR
COOL CONTROL OUTPUT? DISABLED
ALARM
SETUP LOOP 01
OUTPUTS ?
