Chapter 7: Ramp/Soak CLS200 Series User’s Guide
150 Watlow Anafaze Doc.# 0600-3050-2000
Holding a Profile or Continuing from Hold
Use the SET MODE parameter to select the ramp/soak pro-
file mode. Table 7.6 shows the available modes.

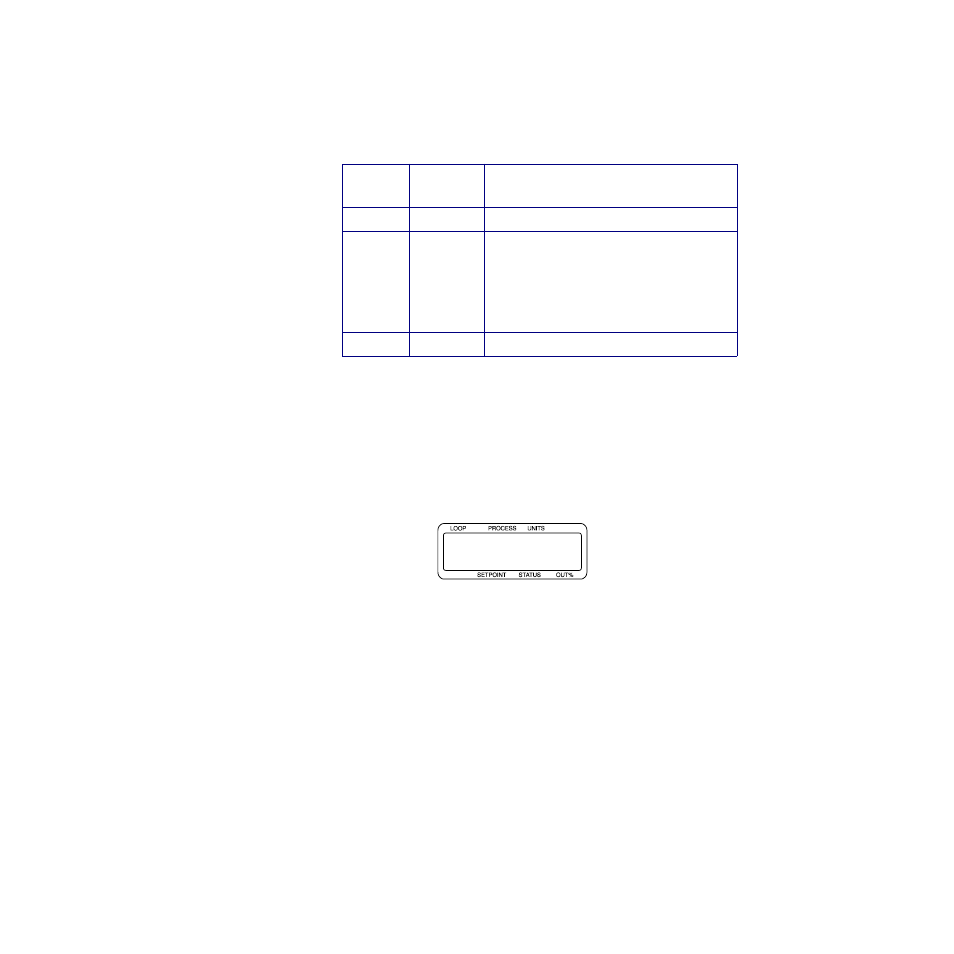

Table 7.6 Ramp/Soak Profile Modes
Holding a Profile
In HOLD mode, all loop parameters stay at their current set-
tings until you change the mode or reset the profile. To put
a profile into HOLD mode, follow these steps:
1. In the single loop display, switch to the loop you want
to hold.
2. Press the RAMP/SOAK key three times to see the SET
MODE parameter:
3. Press YES to set the mode. While the profile is run-
ning, the only mode you will be able select is HOLD.
4. Press ENTER to hold the profile.
Continuing a Profile
To resume or continue a profile that is holding:
1. In the single loop display, switch to the loop you want
to run.
2. Press the RAMP/SOAK key three times. The SET
MODE parameter appears.
3. Press YES to set the mode. While the profile is holding,
the only mode you will be able select is CONT (continue).
4. Press
ENTER to run the profile.
Current
Mode
Available
Mode
Description
START RUN Begin running the assigned profil .
HOLD CONT
Continue from user-selected hold. The pro-
file uns from the point when you put the pro-
file in HOLD mode. (You cannot continue from
a tolerance hold or a trigger wait.)
After you choose this mode, the controller
switches back to RUN mode.
RUN HOLD Hold the profil .
ALARM
01 A SEG01/05 R
SET MODE? HOLD
