DS26519 16-Port T1/E1/J1 Transceiver
36 of 310
generation. This register is also used to program REFCLKIO as an input or output. REFCLKIO can be an output
sourcing MCLKT1 or MCLKE1 as shown in
Figure 9-9 .
This backplane clock and frame pulse (TSSYNCIOn) can be used by the DS26519 and other IBO-equipped
devices as an “IBO Bus Master.” Hence, the DS26519 provides the 8kHz sync pulse and 4MHz, 8MHz, and 16MHz
clock. This can be used by the link layer devices and frames connected to the IBO bus.

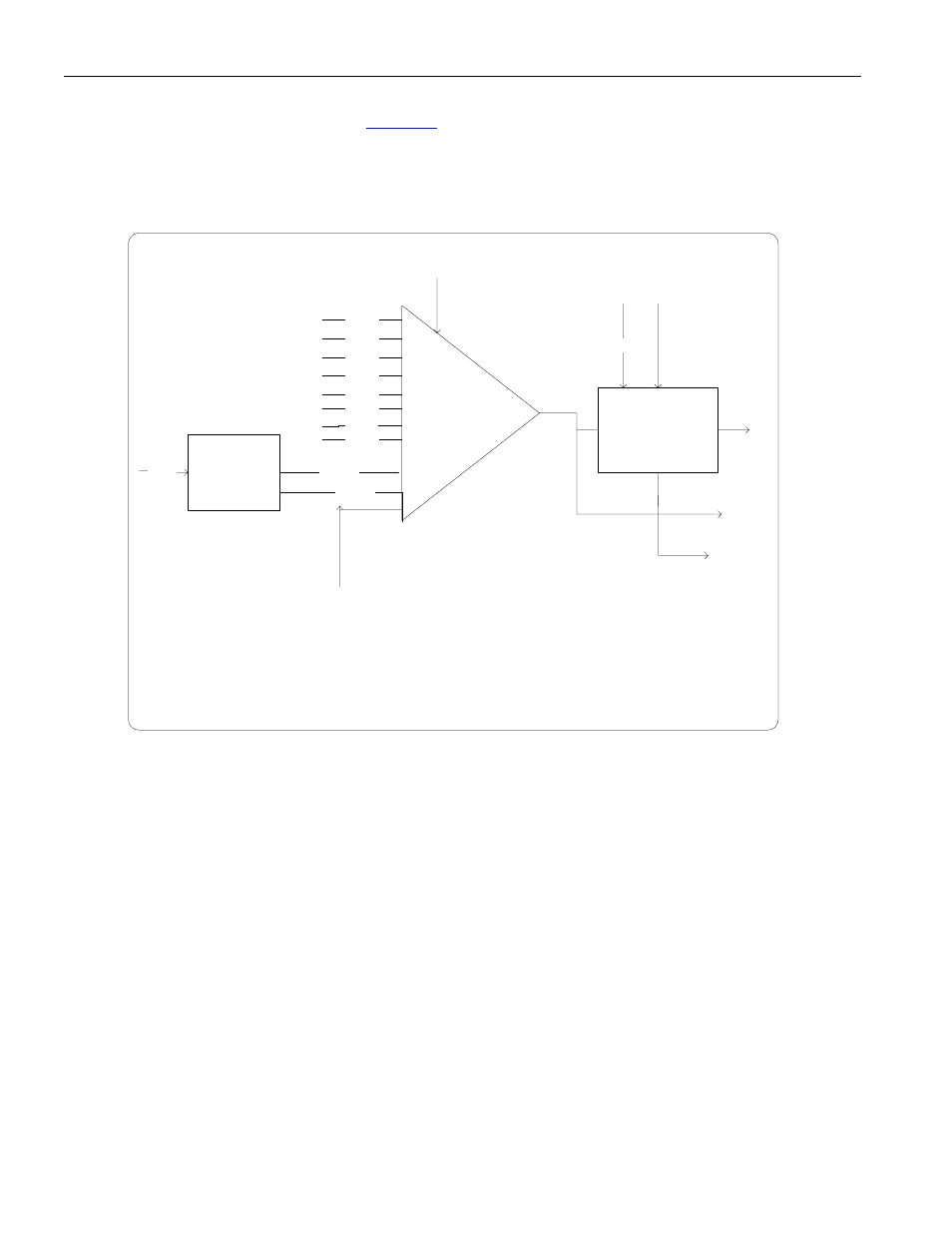

Figure 9-9. Backplane Clock Generation
Clo
c
k
Mu
lt
ipl
ex
o
r
RCLK3
RCLK4
RCLK5
RCLK6
RCLK7
RCLK1
RCLK2
Pre
Scaler
PLL
MCLKT1
MCLKE1
MCLK
BPREFSEL3:0
CLK
GEN
REFCLKIO
REFCLKIO
BPCLK
BPCLK1:0
BFREQSEL
TSSYNCIO
RCLK8
The reference clock for the backplane clock 1 generator can be as follows:
• External Master Clock. A prescaler can be used to generate T1 or E1 frequency.
• External Reference Clock REFCLKIO. This allows for multiple DS26519s to use the backplane clock from
a common reference.
• Internal LIU recovered RCLKs 1 to 8.
• The clock generator can be used to generate BPCLK1 of 2.048MHz, 4.096MHz, 8.192MHz, or 16.384MHz
for the IBO.
• If MCLK or RCLKn is used as a reference, REFCLKIO can be used to provide a 2.048MHz or 1.544MHz
clock for external use.
The reference clock for the backplane clock 2 generator can be as follows:
• External Master Clock. A prescaler can be used to generate T1 or E1 frequency.
• External Reference Clock REFCLKIO. This allows for multiple DS26519s to use the backplane clock from
a common reference.
• Internal LIU recovered RCLKs 9 to 16.
• The clock generator can be used to generate BPCLK2 of 2.048MHz, 4.096MHz, 8.192MHz, or 16.384MHz
for the IBO.
• If MCLK or RCLKn is used as a reference, REFCLKIO can be used to provide a 2.048MHz or 1.544MHz
clock for external use.
