DS26519 16-Port T1/E1/J1 Transceiver
280 of 310

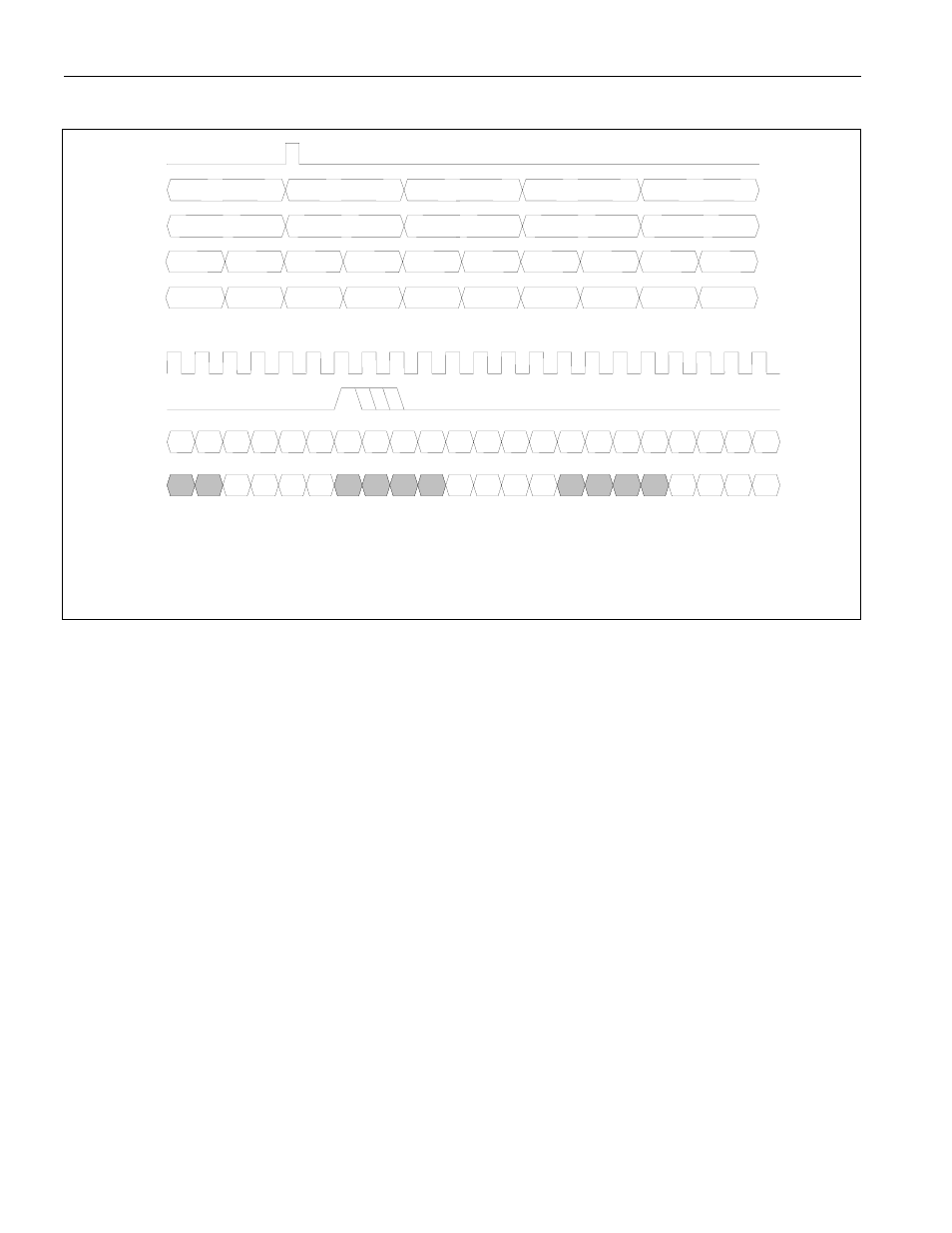

Figure 11-21. E1 Receive-Side Interleave Bus Operation—BYTE Mode
RSERn LSB
RSYSCLKn
RSYNCn
3
FRAMER 3, CHANNEL 32
MSB LSB
FRAMER 0, CHANNEL 1
RSIGn
FRAMER 3, CHANNEL 32 FRAMER 0, CHANNEL 1
MSB LSB
FRAMER 1, CHANNEL 1
FRAMER 1, CHANNEL 1
RSERn
1
RSYNCn
RSIGn
1
RSERn
2
RSIGn
2
FR2 CH32 FR3 CH32 FR0 CH1 FR1 CH1 FR2 CH1 FR3 CH1 FR0 CH2 FR1 CH2 FR2 CH2 FR3 CH2
BIT DETAIL
FR1 CH32 FR0 CH1 FR1 CH1 FR0 CH2 FR1 CH2
FR1 CH32 FR0 CH1 FR1 CH1 FR0 CH2 FR1 CH2
FR2 CH32 FR3 CH32 FR0 CH1 FR1 CH1 FR2 CH1 FR3 CH1 FR0 CH2 FR1 CH2 FR2 CH2 FR3 CH2
A B C D A B C D A B C D
NOTE 1: 4.096MHz BUS CONFIGURATION.
NOTE 2: 8.192MHz BUS CONFIGURATION.
NOTE 3: RSYNCn IS IN THE INPUT MODE (RIOCR.2 = 0).
NOTE 4: THOUGH NOT SHOWN, RCHCLKn CONTINUES TO MARK THE CHANNEL LSB FOR THE FRAMER'S ACTIVE PERIOD.
NOTE 5: THOUGH NOT SHOWN, RCHBLKn CONTINUES TO MARK THE BLOCKED CHANNELS FOR THE FRAMER’S ACTIVE PERIOD.
