DS26519 16-Port T1/E1/J1 Transceiver

300 of 310

13.2 JTAG Interface Timing

Table 13-5. JTAG Interface Timing

(V

DD

= 3.3V

±5%, T

A

= 0°C to +70°C for DS26519G; T

A

= -40°C to +85°C for DS26519GN.)

(See

Figure 13-13

.)

PARAMETER SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

JTCLK Clock Period

t1

1000

ns

JTCLK Clock High:Low Time

t2:t3 (Note

1)

50

500 ns

JTCLK to JTDI, JTMS Setup Time

t4

5 ns

JTCLK to JTDI, JTMS Hold Time

t5

2 ns

JTCLK to JTDO Delay

t6

2 50 ns

JTCLK to JTDO High-Impedance Delay

t7

2 50 ns

JTRST Width Low Time

t8

100

ns

Clock can be stopped high or low.

Note 1:

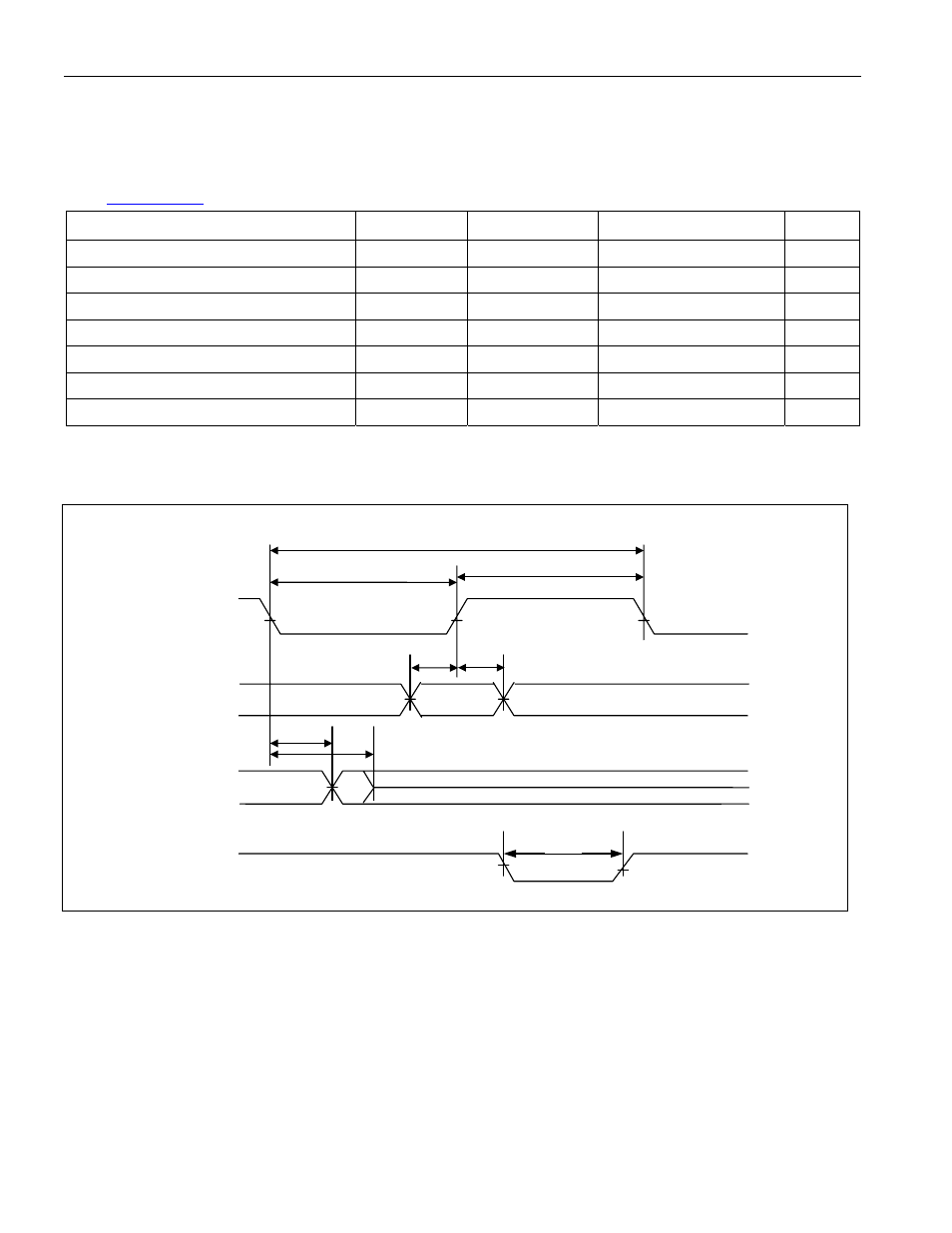

Figure 13-13. JTAG Interface Timing Diagram

JTCLK

t1

JTD0

t4

t5

t2

t3

t7

JTDI, JTMS,

JTRST

t6

JTRST

t8
