II CORE BLOCK: BCU (Bus Control Unit)
B-II-4-28 EPSON S1C33210 FUNCTION PART
DRAM random write cycle
Example: RAS: 1 cycle; CAS: 2 cycles; Precharge: 1 cycle
BCLK
A[11:0]
#RASx
#HCAS/
#LCAS
#WE
D[15:0]
;;;;;;;
;;;;;;;
;;;;;
;;;;;
ROW COL
write data
RAS cycle CAS cycle
Precharge
cycle

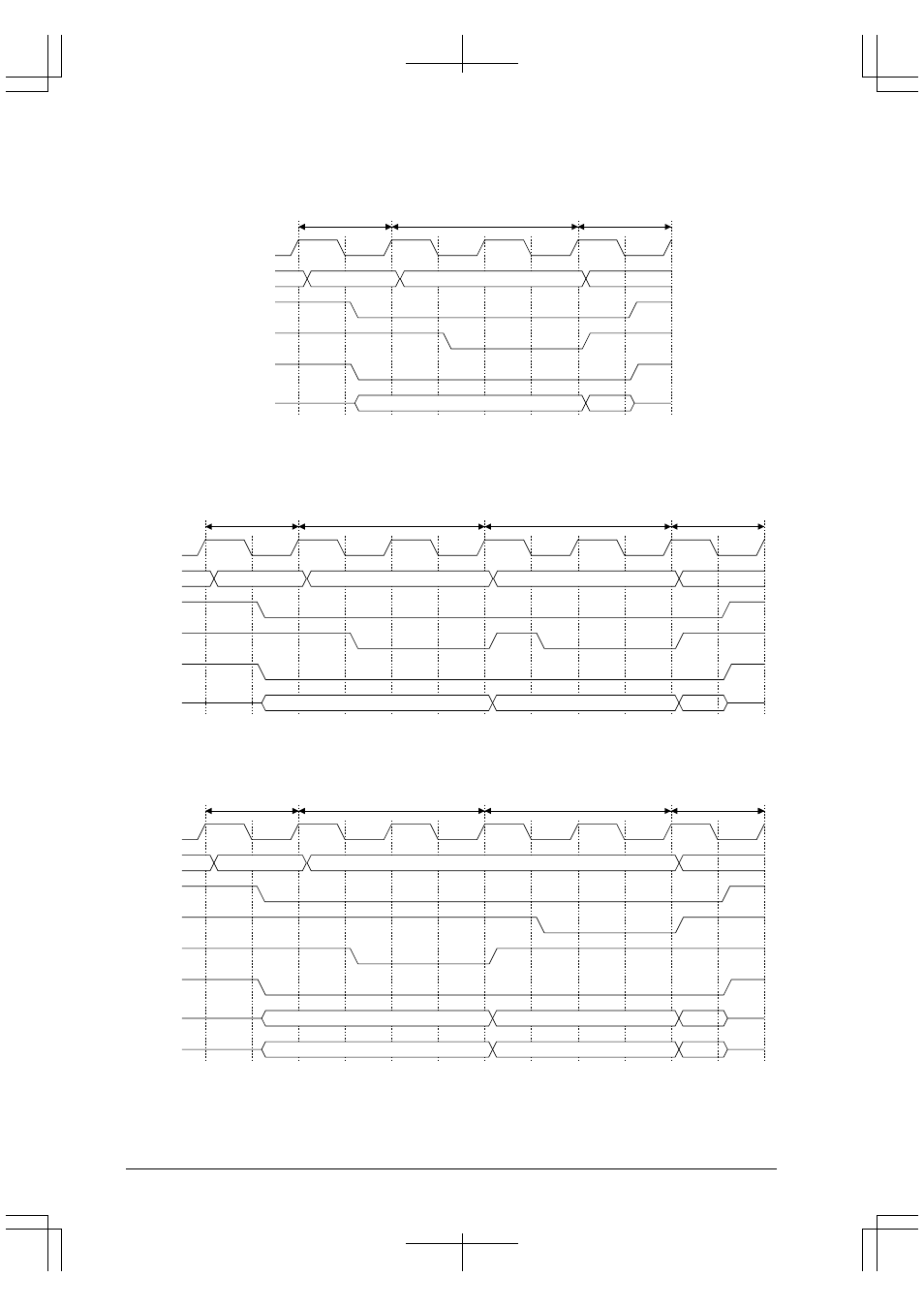

Figure 4.32 2CAS Type DRAM Random Write Cycle
DRAM write cycle (fast page or EDO page mode)
Example: RAS: 1 cycle; CAS: 2 cycles; Precharge: 1 cycle; word-write sample
;;;;;;;
;;;;;;;
ROW COL #1 COL #2
write data
RAS cycle CAS cycle #1 CAS cycle #2
Precharge
cycle
BCLK
A[11:0]
#RASx
#HCAS/
#LCAS
#WE
D[15:0]
;;;;;
;;;;;
write data
Figure 4.33 DRAM Word-Write Cycle (fast page or EDO page mode)
Example: RAS: 1 cycle; CAS: 2 cycles; Precharge: 1 cycle; byte-write sample (little endian)
;;;;;;;
;;;;;;;
ROW COL
write data
BCLK
A[11:0]
#RASx
#HCAS
#LCAS
#WE
D[15:8]
D[7:0]
;;;;;
;;;;;
Undefined
Undefined
;;;;;
;;;;;
write data
RAS cycle CAS cycle #1 CAS cycle #2
Precharge
cycle
Figure 4.34 DRAM Byte-Write Cycle (fast page or EDO page mode)
