Rockwell Automation 2092-DAx Ultra1500 User Manual User Manual
Page 88
Publication 2092-UM001D-EN-P — July 2005
5-8
Ultra1500 Application Examples

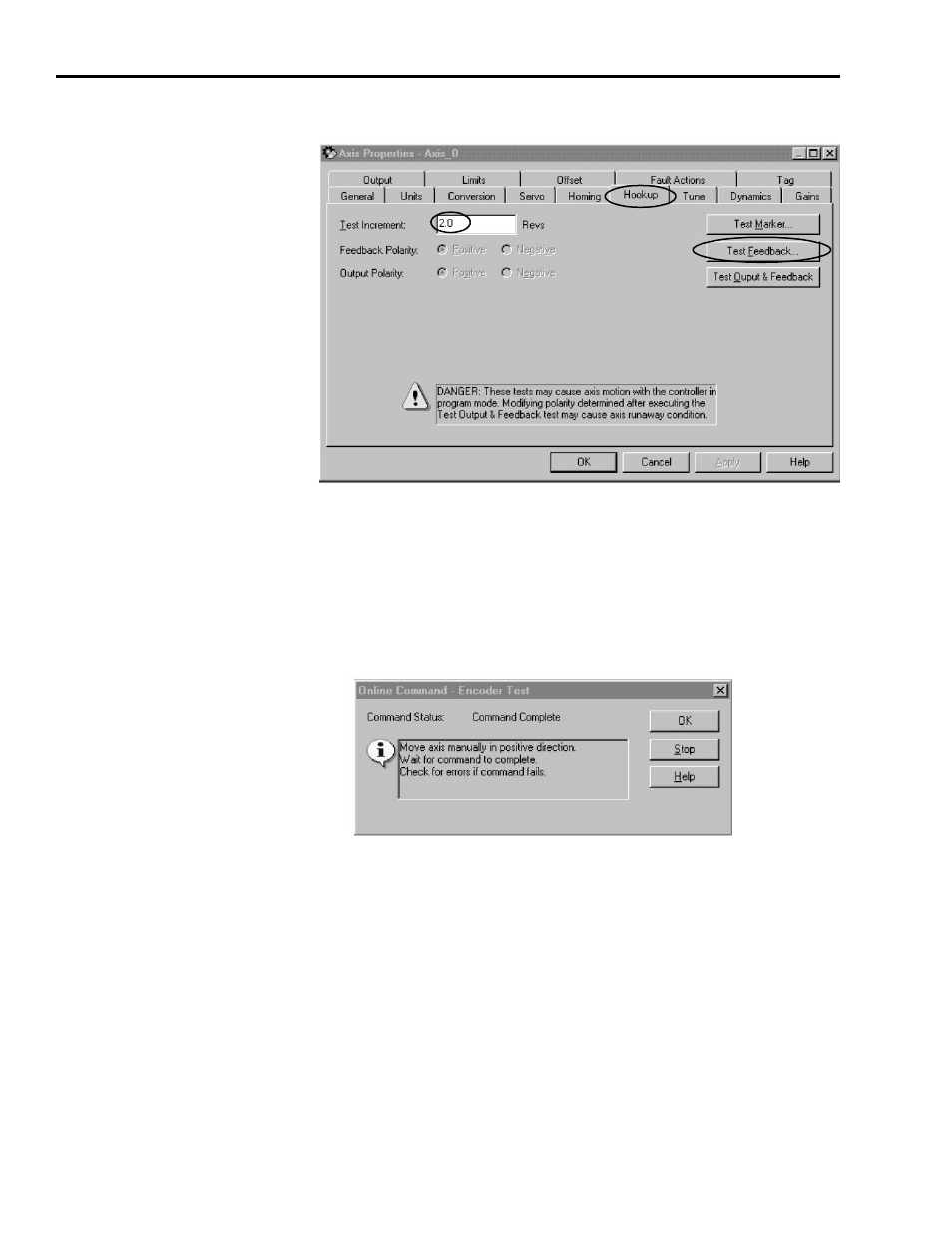

6. Select the Hookup tab.
7. Select 2.0 as the number of revolutions for the test (or another number
more appropriate for your application).
8. Select the Test Feedback button to verify feedback connections. The
Online Command – Encoder Test window opens. When the test
completes, the Command Status changes from Executing to Command
Complete.
9. Select OK.
