Publication 2092-UM001D-EN-P — July 2005
4-2 Commissioning Your Ultra1500

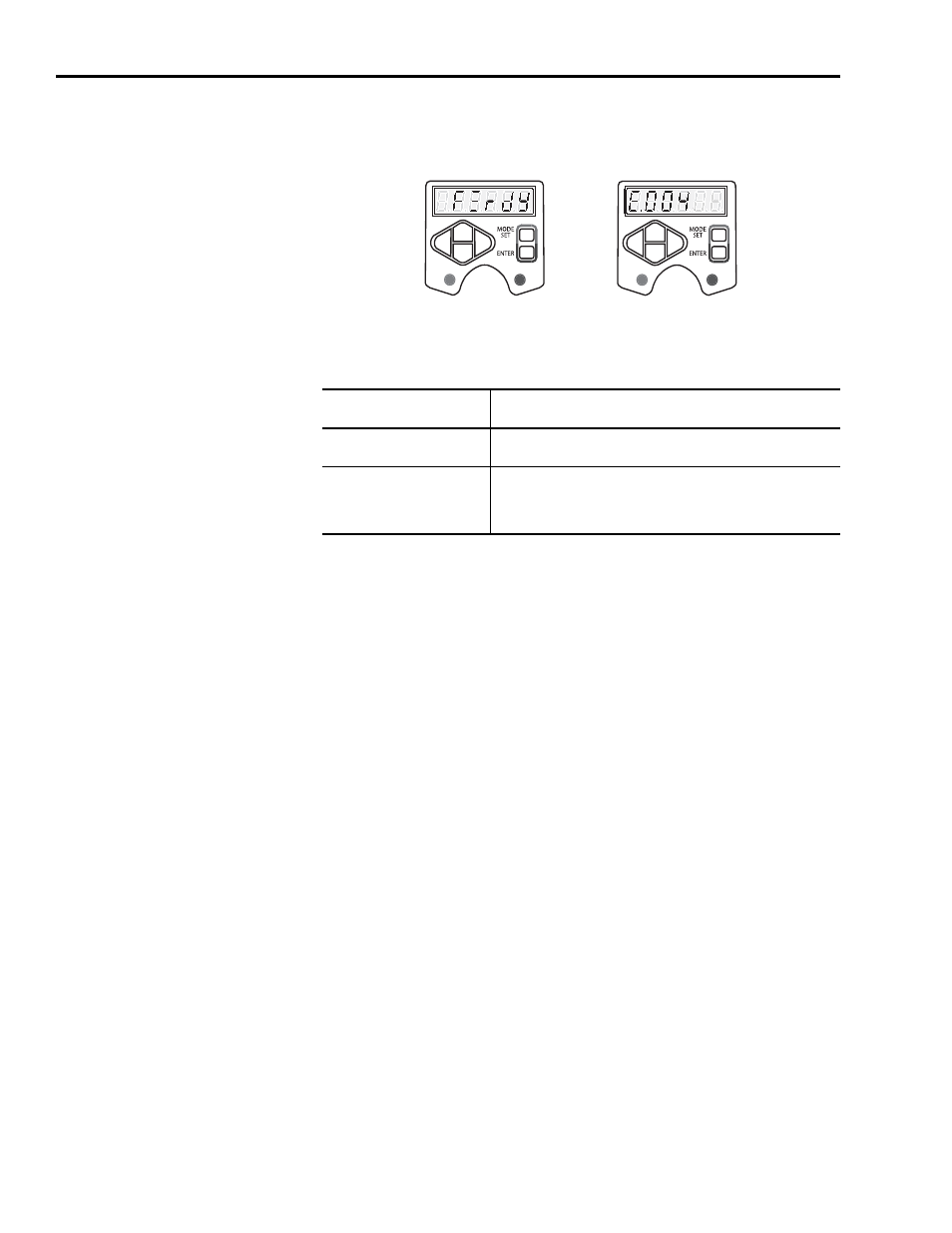

Figure 4.1
Ultra1500 Operator Interface at Startup
3. Verify the status of the drive startup, as outlined below and shown in
Figure 4.1.
Detecting Your Ultra1500
Drive This procedure assumes you have successfully applied power to your drive.
Follow the steps below to ensure your Ultra1500 drive is communicating with
your Ultraware software.
To detect your Ultra1500 drive:
1. Start your Ultraware software.
Note: Refer to the Ultraware Installation Instructions (publication
2098-IN002B-EN-P) and/or the Ultraware on-line Help for more
information on installing and starting the software.
2. Ultraware will scan for on-line drives.
3. Click on the Stop Scanning button when your drive is detected, or wait
for the scan to complete.
If the six characters on the
7-segment display indicate:
Then:
rdY in the three least
significant characters The drive is ready.
Go to Detecting Your Ultra1500 Drive
E. in the most significant
character followed by a text
string or error code number.
Refer to Error Displays on page 6-5 to troubleshoot the fault
condition.
Note: If a TL-Series motor is not connected, a fault condition is
normal. Go to Detecting Your Ultra1500 Drive.
POWER
MAIN CONTROL
POWER
Startup Normal
POWER
MAIN CONTROL
POWER
Startup Error (004) Detected
