Page 160
Publication 2092-UM001D-EN-P — July 2005
B-16
Interconnect and Cable Diagrams
CN3 PC Communications
Assembly
(2090-DAPC-D09xx)

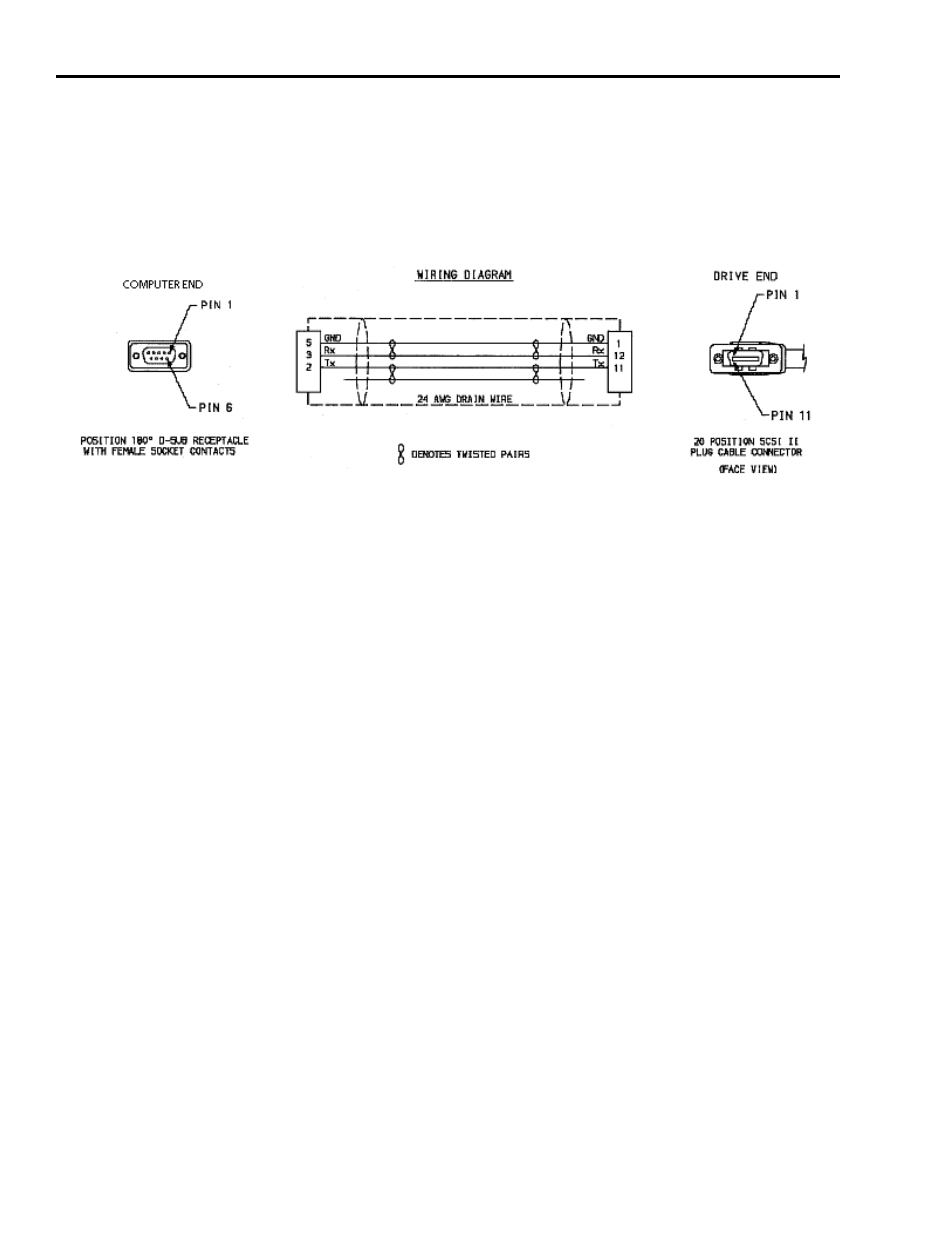

Figure B.15 shows the wiring diagram for the CN3 PC communications cable
assembly sold by Allen-Bradley (catalog number 2090-DAPC-D09xx) to
interface the Ultra1500 drive to a host computer.
Figure B.15
Ultra1500 CN3 PC Communications Cable Diagram
